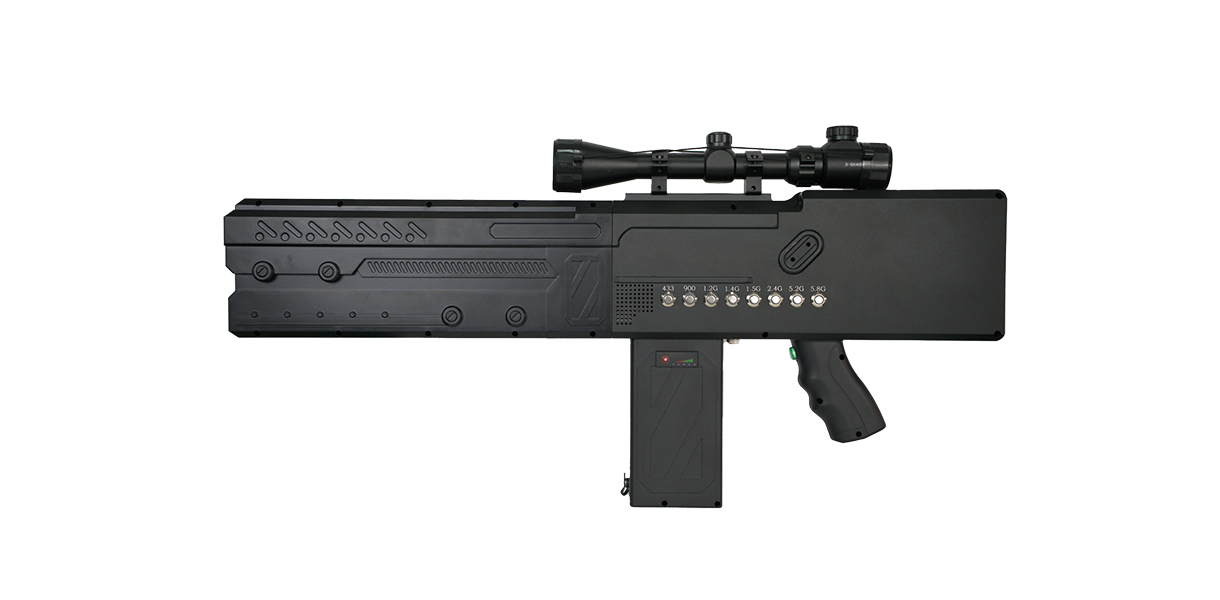

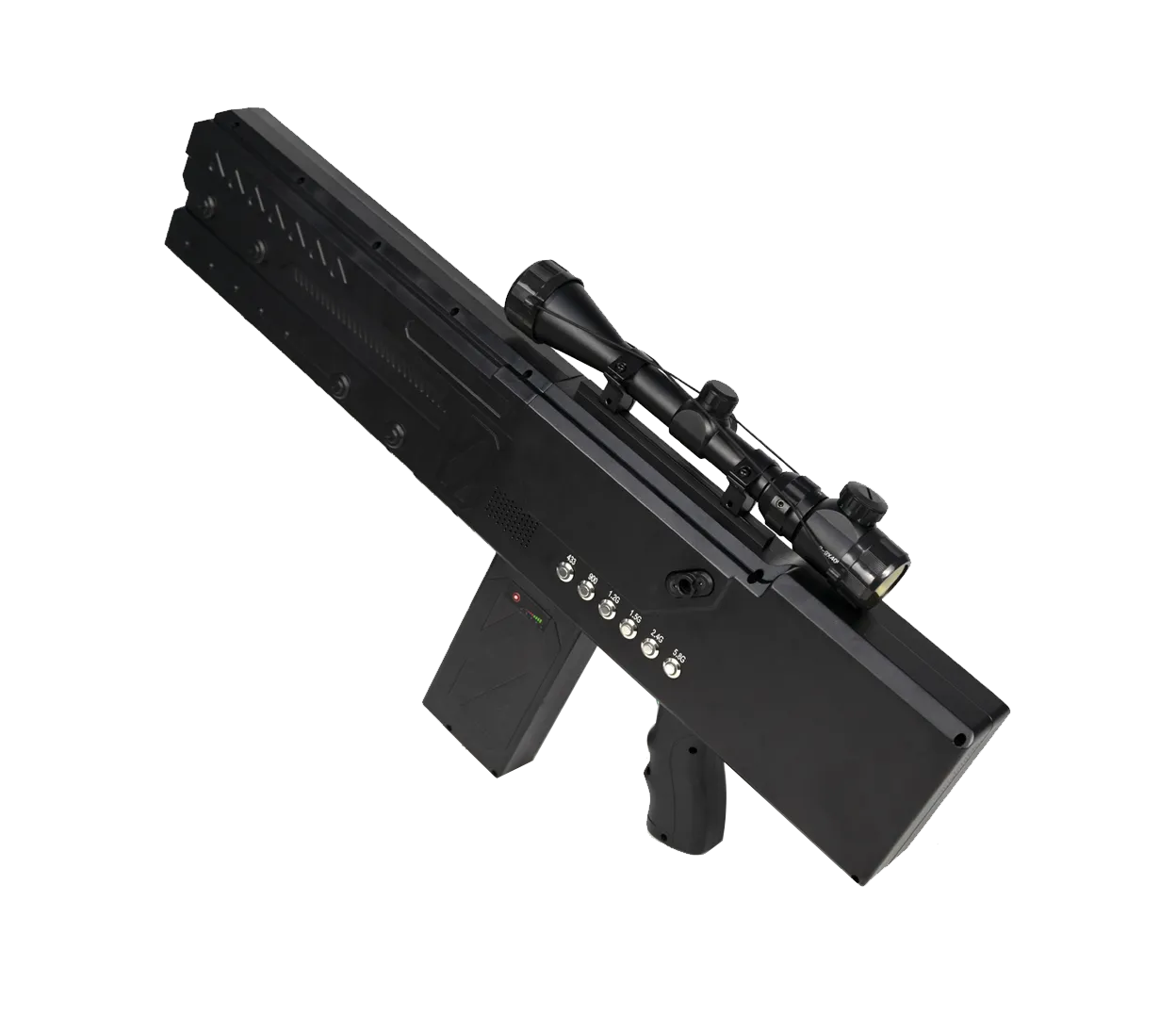

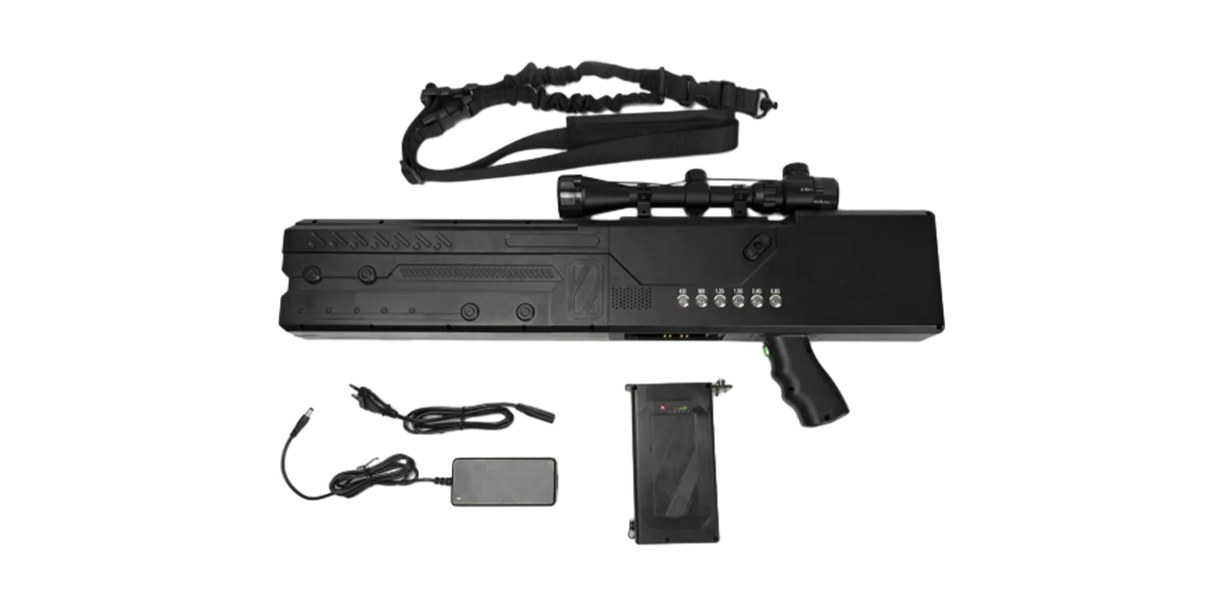

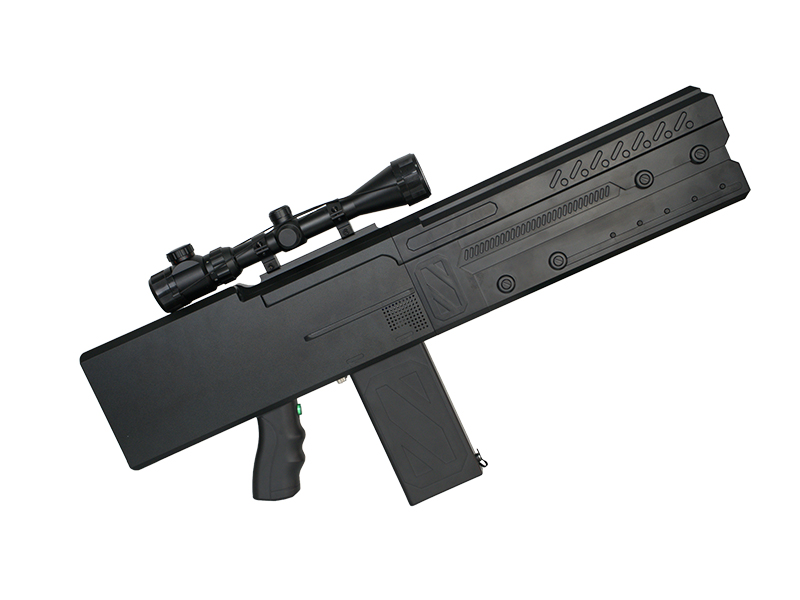

TTSKP08 Gun-Type Anti-Drone Device: A Portable, High-Power Jammer for Forcing UAVs to Land or Return with Precision Targeting
Item No.: TTSKP08
KEY FEATURES
Multi-Band Interference
from 400MHz to 5.9GHz
Accurate Jamming
Directional antenna design for accurate jamming
Output Power
Up to 180W output power effective range up to 2km
Portable
Portable gun-style structure，shoulder-mountable
Strong Applicability
Suitable for outdoor and harsh environments
PRODUCT DETAIL
APPLICATION SCENARIOS
Chemical Industrial Parks
Important Base
Major Sporting Events
TECHNICAL SPECIFICATIONS
| Item | Specification |
| Frequency Bands | 410-460MHz;824-960MHz;100-1300MHz;1350-1450MHz;1550-1650MHz; 2400-2500MHz;5150-5250MHz;5700-5900MHz |
| Function | Force Return/Forced Landing /Video cut |
| Effective Range | 1-2km |
| Output Power | 180W |
| Size | 710×290×70 mm |
| Weight | 6.0kg |
| Voltage | AC220V to DC29.4V |
| Power Supply | Built-in 24V 5AH Lithium Battery |
| Antenna | 45°Vertical &45°Horizontal Beamwidth |
| Operating Temp | -20℃~+45℃ |
| Protection | Outdoor Capable |
