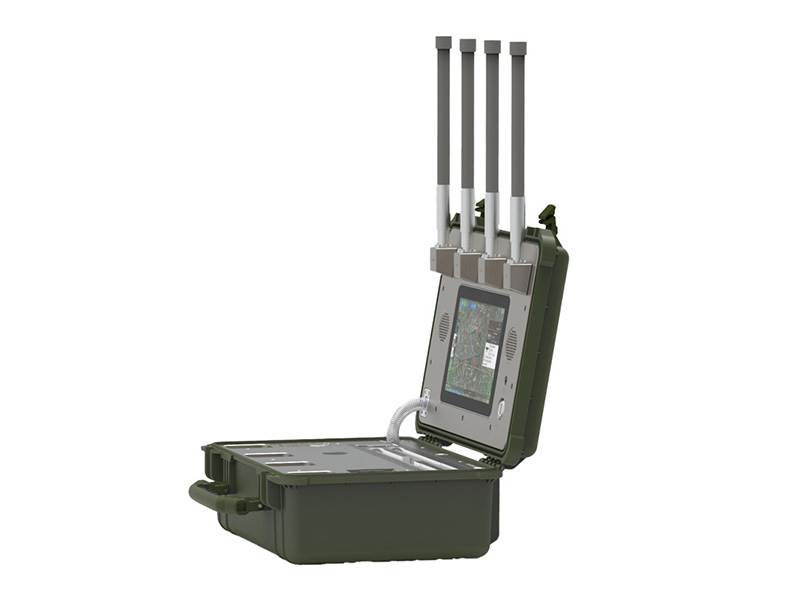

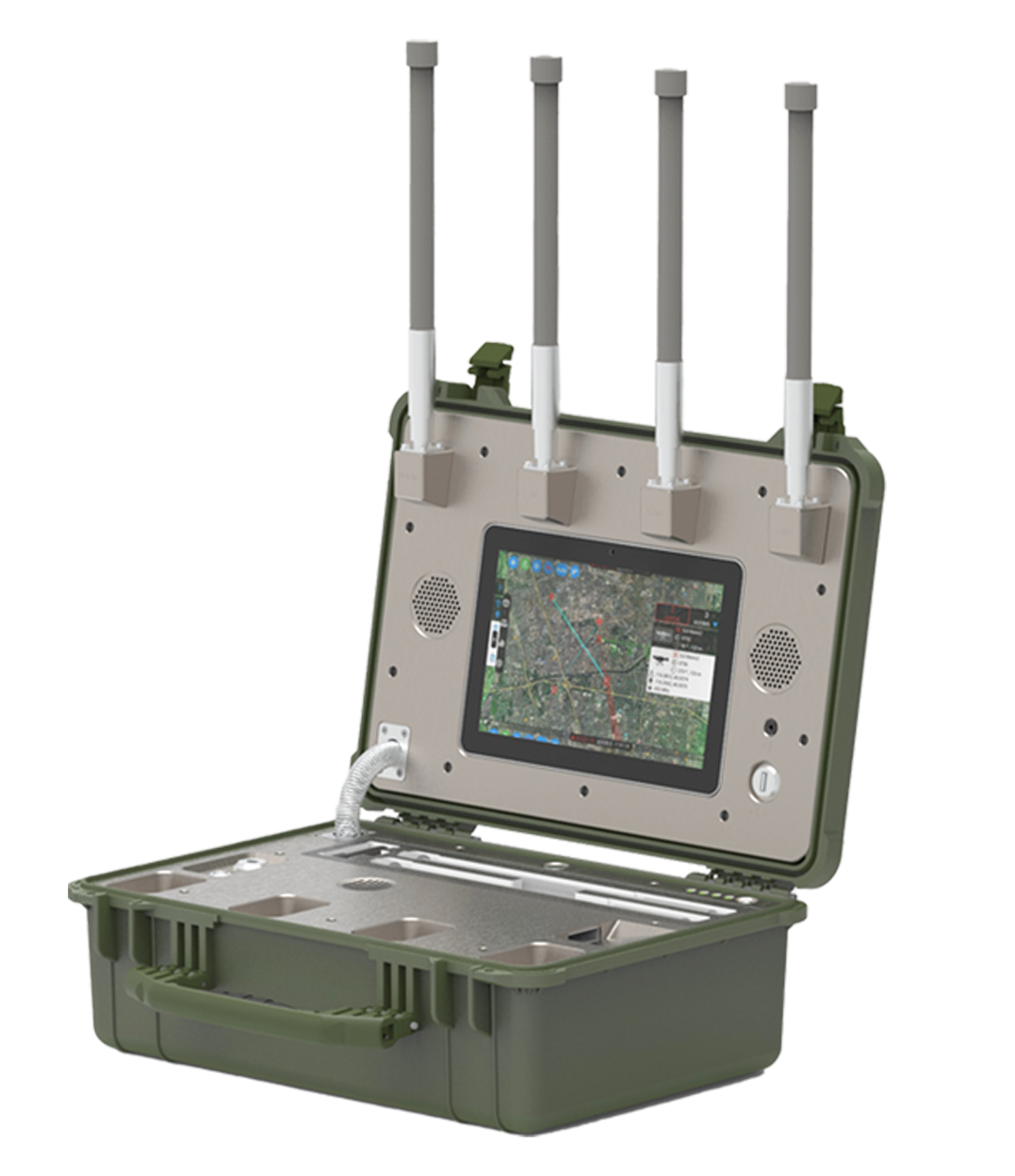

TTSKC01 Portable Drone Detector: Suitcase-Style Passive Detection System for UAV Monitoring and Pilot Localization in Mobile Security Operations
ltem No.: TTSKC01
learn more
TTSKC02: Advanced Omnidirectional Passive UAV Detection System for 24/7 unattended operation, accurately identifying drones from DJI to DIY models.
Item No.: TTSKC02
KEY FEATURES
Accurate ldentification
Distinguishes even drones of the same brand and mode
High-Capacity Detection
Detects 30+drones simultaneously
Passive Detection
Receives only,with zero emission Receives only, with zero emission highly covert
Blacklist/Whitelist Management
Mark trusted drones to avoid false alarms
Unattended Mode
Supports 24/7 autonomous detection and alerting
PRODUCT DETAIL
APPLICATION SCENARIOS
Power Grid Systems
Important Facilities
Event Security
TECHNICAL SPECIFICATIONS
| Item | Specification |
| Detection Mode | Passive-Receive only,no transmission |
| Supported Bands | FM,2FSK,4FSK,GFSK,MSK,BPSK,QPSK,OFDM,DSSS,FHSS |
| Detection Radius | 5km(depending on environment and drone type) |
| Detection Mode Type | Panoramic scanning /Channel scanning |
| Simultaneous Detection | ≥30 drones |
| Sensitivity | Better than-115dBm(25kHz) |
| Dimensions | 470×357×176 mm(closed cover) |
| Dynamic Range | 70 dB |
| Directivity | 360°omnidirectional |
| Power Supply | Built-in battery(15h);also supports AC 220V |
| Operating Time | 24/7 unattended or 15h continuous operation |
| Weight | ≤13kg |
Recommended products
TTSKL02 Handheld UAV Detector is a 650g portable unit with 6-inch touchscreen, offering 2-3km detection range for drones and pilots. It supports RID identification, real-time tracking, and 4-6h operation. Ideal for tactical security and patrol missions
ltem No.: TTSKL02
learn more
TTSKL03 Handheld Drone Detector uses CRPC 2.0 for real-time UAV data decoding. Weighs 580g, offers 3km range, 3-4h battery, and tracks ≥10 drones. Passive detection, one-click pilot positioning, and networked operation.Ideal for portable low-altitude security
ltem No.: TTSKL03
learn more
