TTSK-W10 Handheld Drone Detector 300MHz-13.4GHz 5km Ultra-Wideband UAV Detection Device
Item No.: TTSKW10
KEY FEATURES
Ultra-Wideband Detection
300MHz–13.4GHz ultra-wideband detection supports full-spectrum scanning with real-time spectrum display and 1MHz frequency steps.
100+ Drone Types Supported
100+ Drone Types Supported
Up to 5km Detection Range
Provides a detection range of up to 5km under clear line-of-sight conditions, with sensitivity down to -101dBm for specified signals.
RID Detection
Supports RID information reception via 2.4GHz/5.8GHz Wi-Fi and 2.4GHz Bluetooth.
8H Battery Life & IP54 Protection
Up to 8 hours of operation with a replaceable lithium-ion battery, combined with IP54 dust and splash protection for outdoor use.

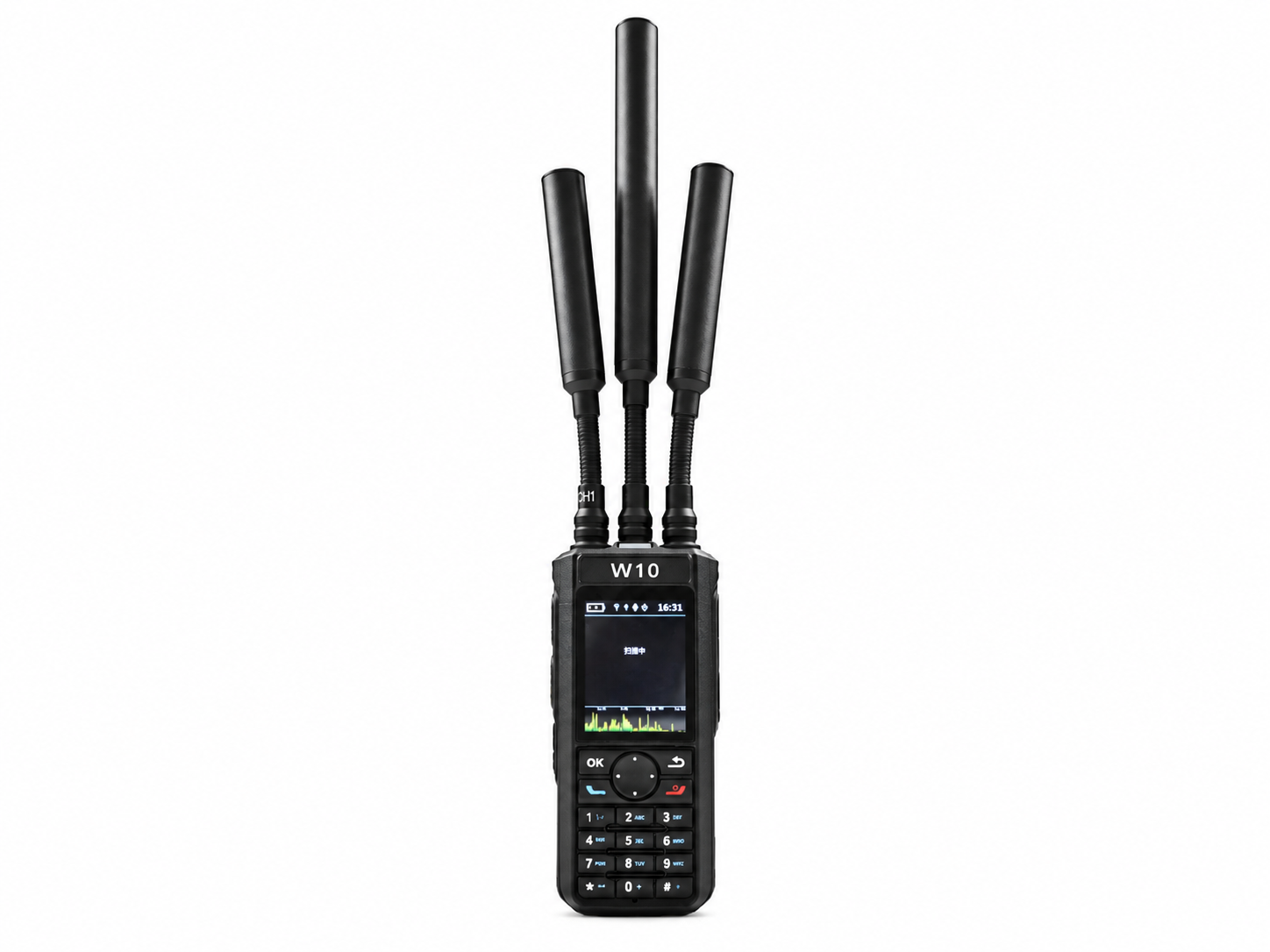

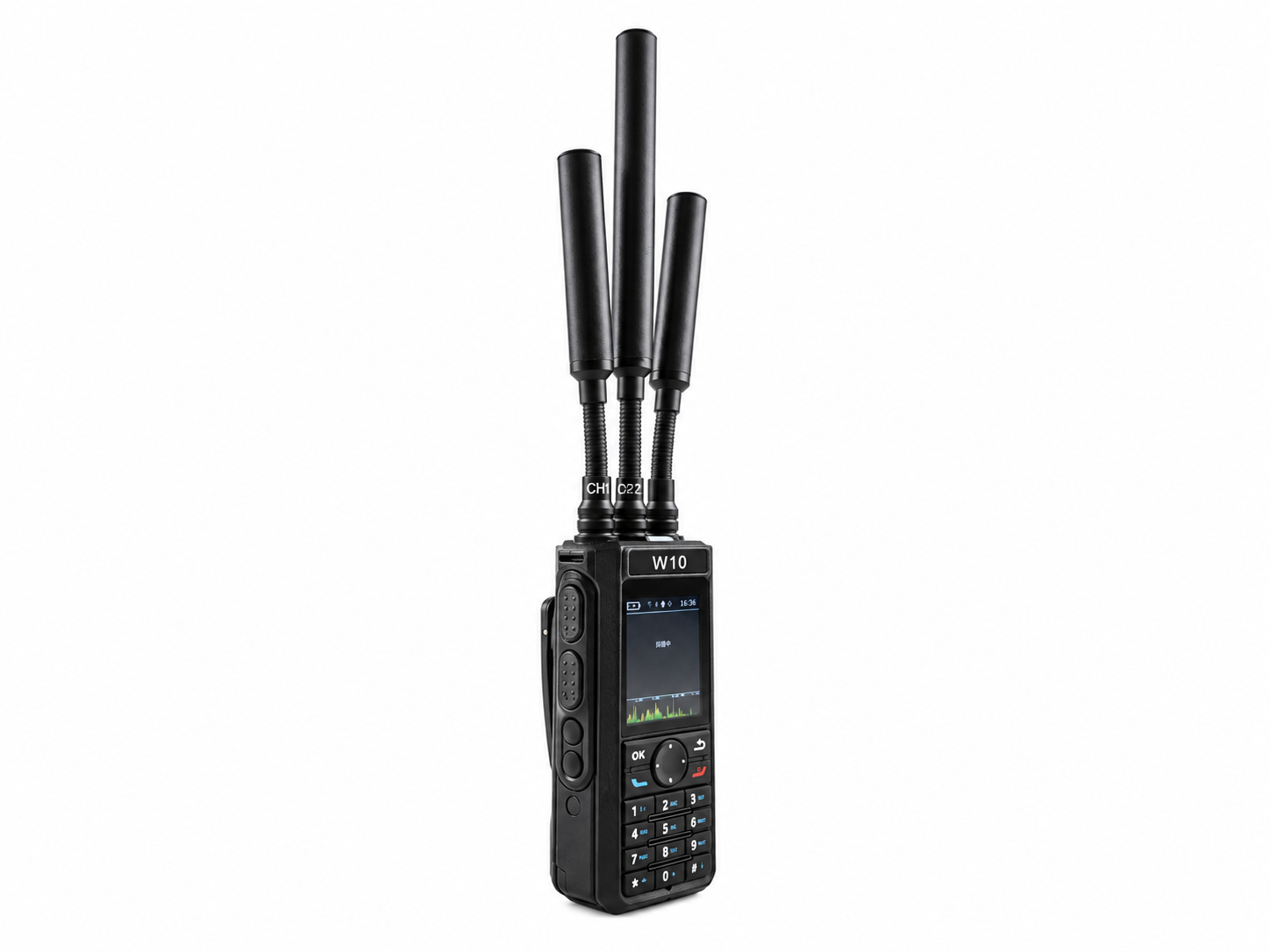

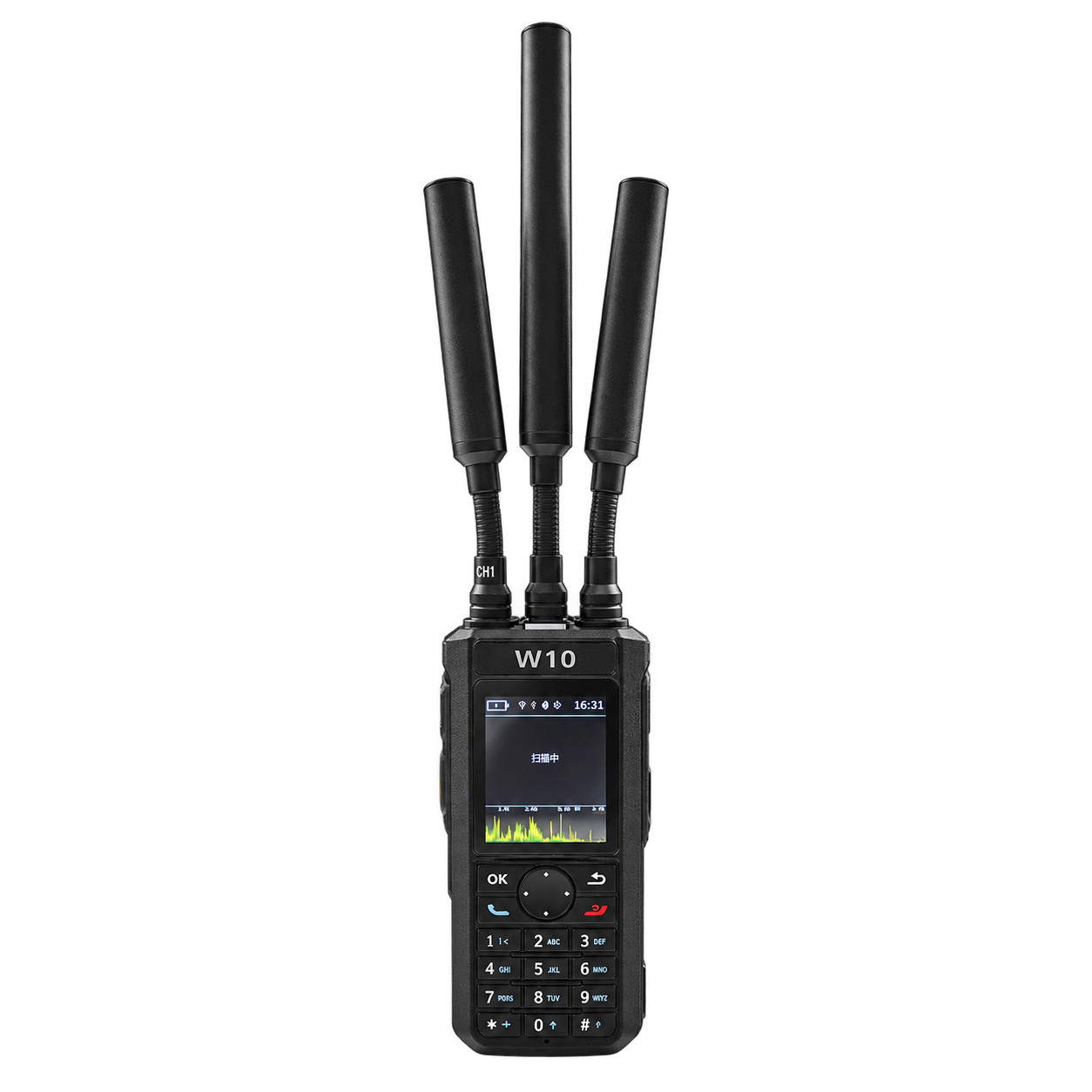

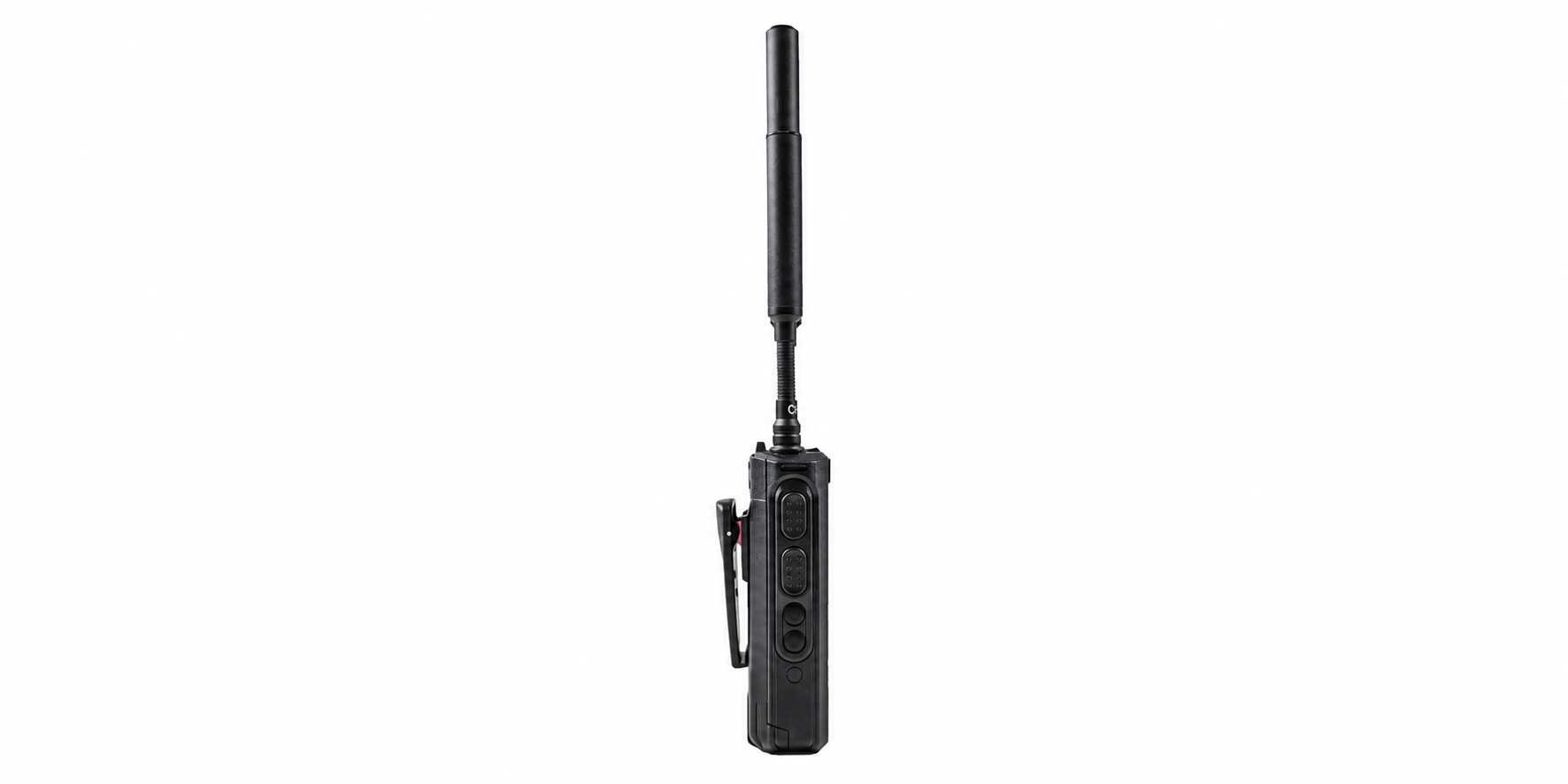

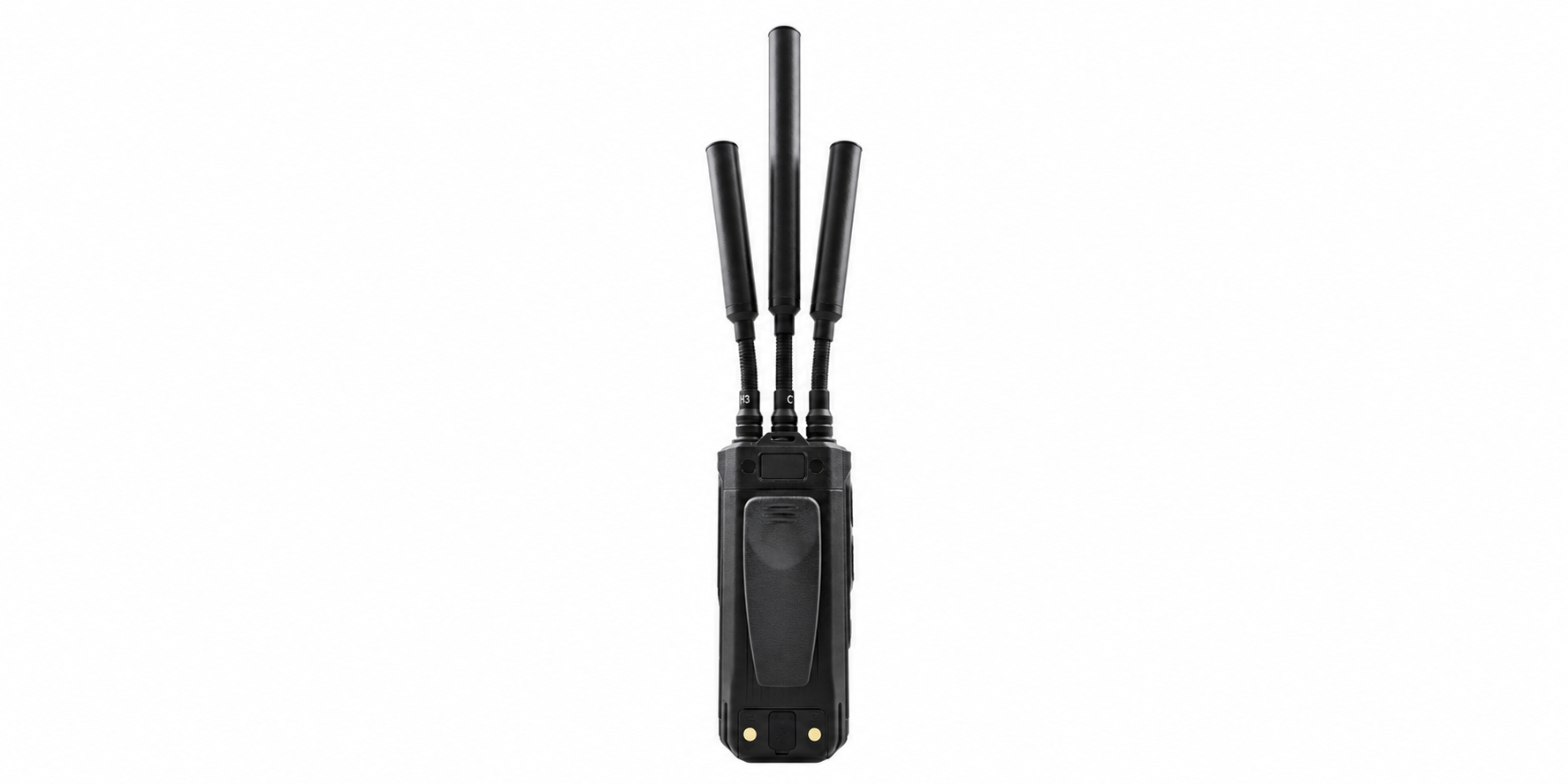

PRODUT IMAGE
APPLICATION SCENARIOS
TECHNICAL SPECIFICATIONS
| Model | TTSK-W10 |
| Receiving Frequency | 300 MHz–13.4 GHz |
| Detection Range | 500 m–5 km |
| Detection Sensitivity | Down to -101 dBm |
| Supported Drone Types | 100+ types |
| Supported Signals | Mainstream UAV, Analog FPV, Digital FPV, Wi-Fi UAV |
| RID Detection | 2.4 GHz Wi-Fi, 5.8 GHz Wi-Fi, 2.4 GHz Bluetooth |
| Alarm Method | Vibration, Sound, GPIO Output |
| Log Recording | Internal Storage |
| External Interface | Type-C, Bluetooth, GPIO |
| Antenna Interface | 3 Probe Antennas, SMA |
| OTA Update | USB-C / Bluetooth |
| Battery | Removable Lithium-ion, 7.4 V / 2800 mAh |
| Battery Life | Approx. 8 Hours |
| Operating Temperature | -25°C to +55°C |
| Device Size | 360 × 63 × 54 mm with antenna/back clip |
| Main Unit Size | 140 × 63 × 41 mm without antenna/back clip |
