TTSKC01 Portable Drone Detector: Suitcase-Style Passive Detection System for UAV Monitoring and Pilot Localization in Mobile Security Operations
ltem No.: TTSKC01
learn more

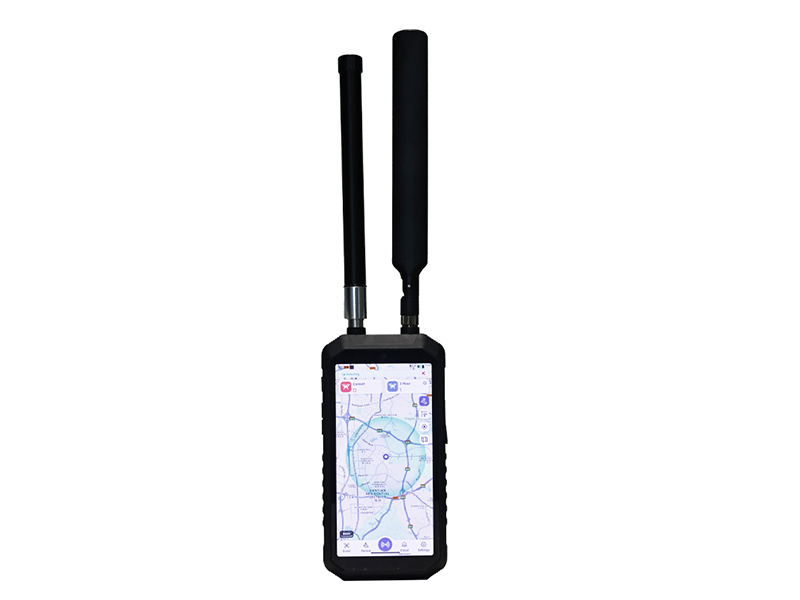

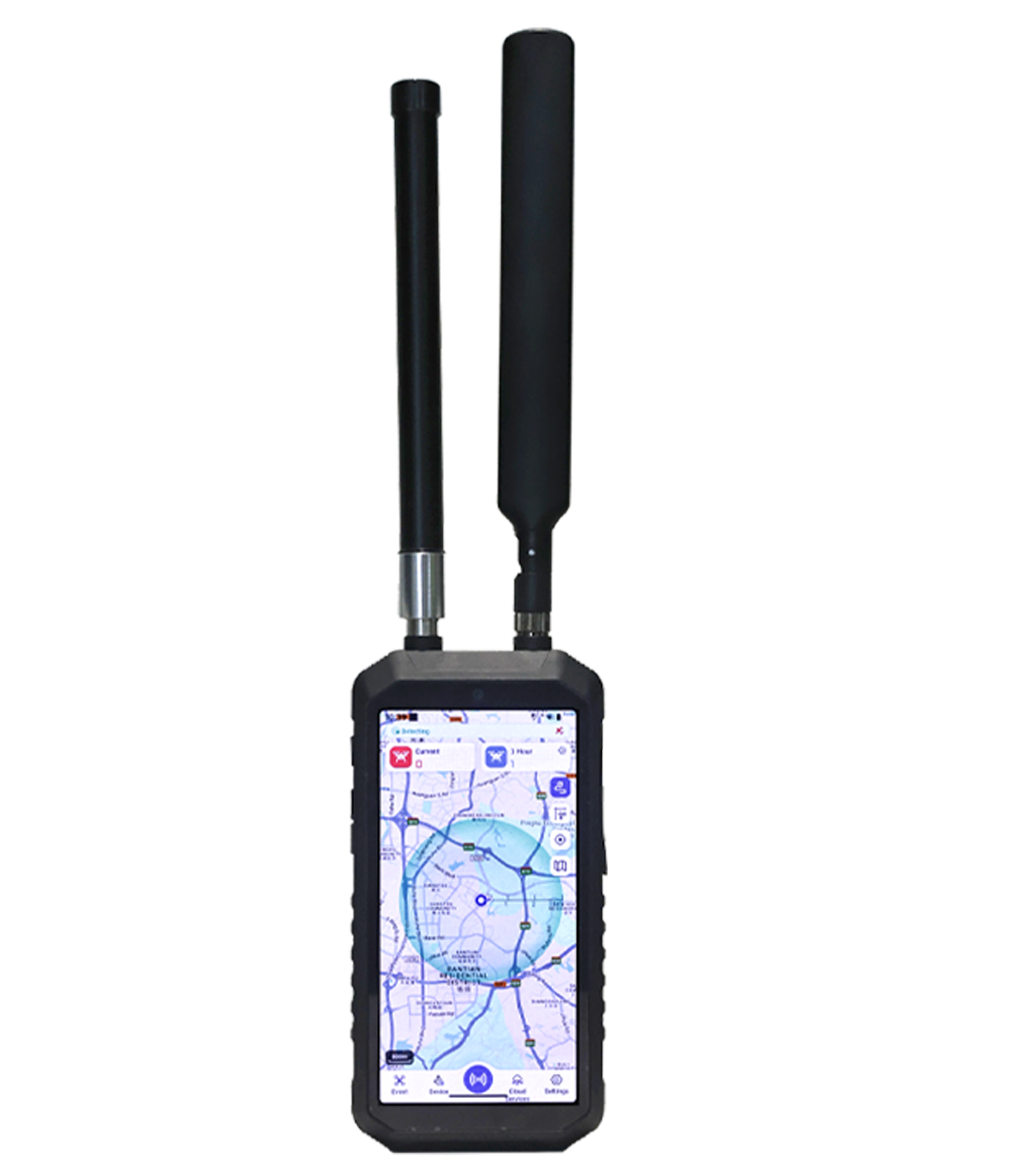

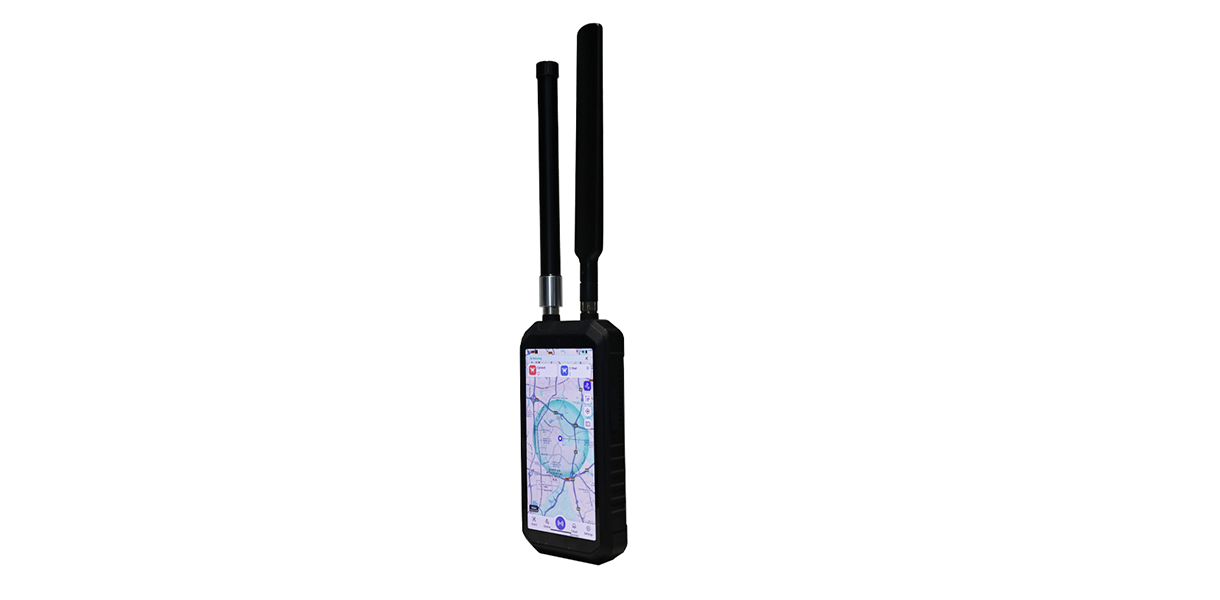

TTSKL03 Handheld Drone Detector uses CRPC 2.0 for real-time UAV data decoding. Weighs 580g, offers 3km range, 3-4h battery, and tracks ≥10 drones. Passive detection, one-click pilot positioning, and networked operation.Ideal for portable low-altitude security
Item No.: TTSKL03
KEY FEATURES
Passive Detection
Passive receiving only,no electromagnetic emission,environment friendly
Black and White List
One-click whitelist/blacklist marking no alarms for whitelisted drones
Position Navigation
Detect pilot location in real-time,one-click tracking of pilot and drone
Precise Identification
Real-time precise recognition of drone SN,model,geo-location,speed, altitude,trajectory,and remote controller information
Trajectory Tracking
Multi-target trajectory and pilot tracking
PRODUCT DETAIL
APPLICATION SCENARIOS
VIP Transit Protection
Major Sporting Events
Event Security
TECHNICAL SPECIFICATIONS
| Item | Specification |
Working Principl | Passive detection,no EM emission |
Detection Band | 300-6000MHz |
Sensitivit | -95dBm |
Detection Distanc | 0~3km+(varies by environment and drone type) |
Response Tim | ≤5 seconds |
Detection Quantit | ≥12 drones simultaneously |
Number of Drone Trajectorie | ≥11 drones simultaneously |
Position Accurac | ≤3m(for decodable drones) |
Drone Librar | DJI OC,Mavlink,Parrot,TBS CrossFire etc. |
Dynamic Detection Spee | ≥60km/h(for decodable drones) |
Screen Siz | 6.0 Inch |
Battery Capacit | 12000mAh |
Enduranc | 3-4 hours |
External Interfac | Type-C,SMA antenna*2,3.5mm audio out,SIM card slot |
Charging Powe | DC9V,2A |
Charging Tim | ≤3 hours(0%-100%) |
Power Consumption | ≤15W |
Siz | 177mm×89mm×29.5mm(±2mm) |
Weigh | ≤580g(without antenna),each antenna≤46g |
