TTSKC01 Portable Drone Detector: Suitcase-Style Passive Detection System for UAV Monitoring and Pilot Localization in Mobile Security Operations
ltem No.: TTSKC01
learn more
TTSKXM Fixed Drone Detection & Location System provides 10km range, passive monitoring of UAV data (ID, position, trajectory, pilot). Supports 5+ simultaneous targets, ≤10m accuracy, and integrates with TDOA/jamming systems. IP65 rated for 24/7 all-weather operation in critical areas.
Item No.: TTSKXM
High-precision Positioning
Positioning accuracy within 10 meters azimuth error within 1.5 degrees
Full-band Coverage
Supports 100 MHz to 6 GHz,covering mainstream drone signal bands
Multi-target Tracking
Simultaneously detects and tracks 5 or more drones
All-weather Operation
24/7 continuous work,waterproof and dustproof suitable for harsh environments
Strong Compatibility
Supports mainstream brands like DJI,AUTEL and various communication protocols

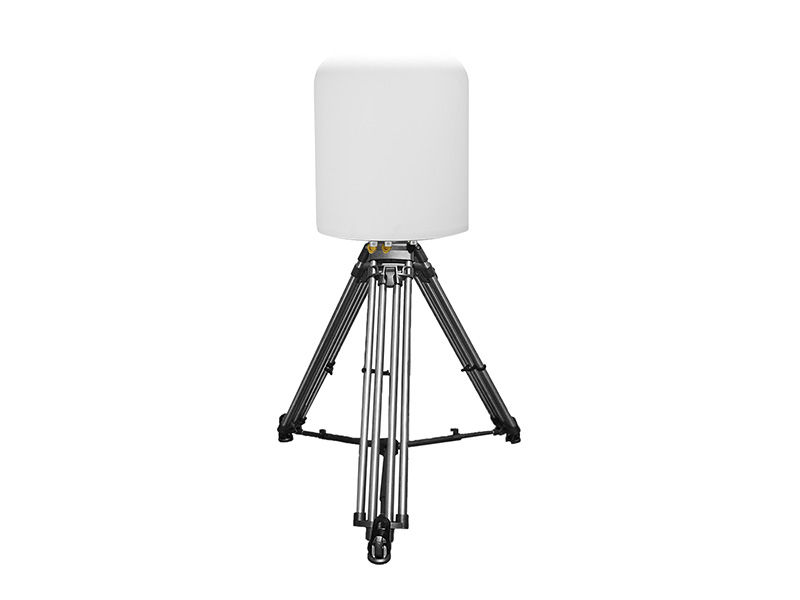

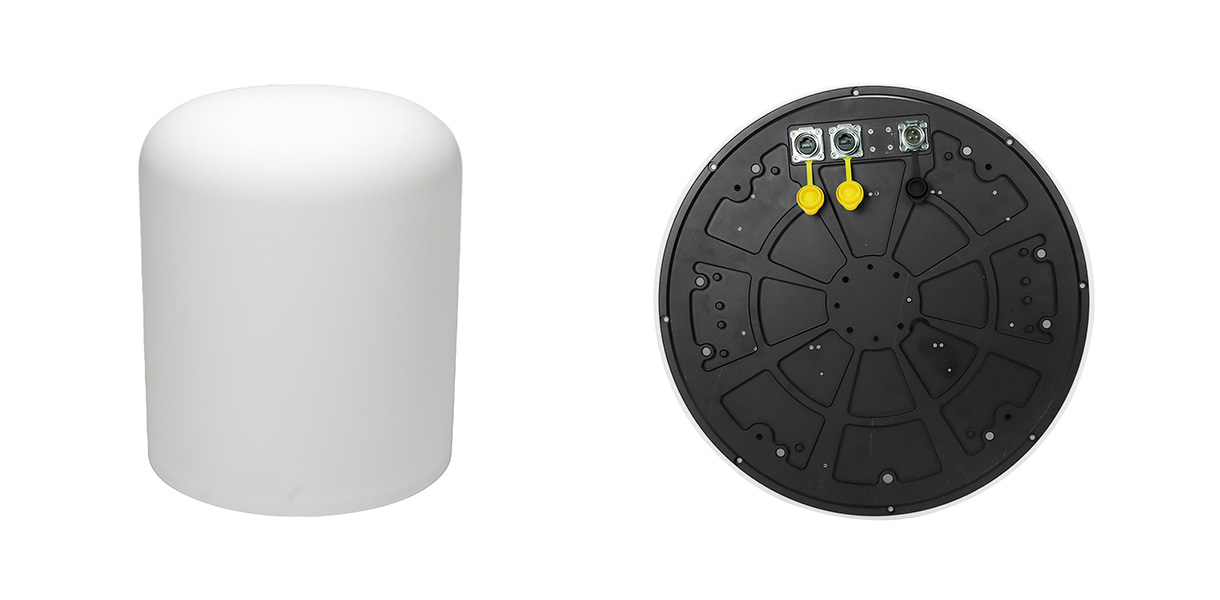

Product Image
APPLICATION SCENARIOS
Event Security
VIP Transit Protection
Power Grid Systems
TECHNICAL SPECIFICATIONS
| Item | Specification |
| Detection Frequency Band | 100 MHz-6000 MHz |
| Detection Range | 1-10 KM |
| Detection Altitude | 0-1000 M |
| Simultaneous Drones Detected | ≥5 drones |
| Positioning Accuracy | ≤10 meters |
| Azimuth Error | ≤1.5°RMS |
| Detection Success Rate | ≥95% |
| ldentification Response Time | ≤5 seconds |
| Operating Temperature | -20℃~+65℃ |
| Protection Level | IP65 |
| Power Consumption | ≤100W |
| Device Weight | ≤15kg |
