TTSK-DGA1-01 Fixed Drone Detection Device | 360° Full-Band Anti-Drone Detection System with RID & Direction Finding for Critical Infrastructure Protection

Item No.: TTSK-DGA1-01

KEY FEATURES

Fast Response

Detects and reports drone activity within ≤5 seconds under specified test conditions.

Multi-Mode Identification

Supports DID, RID, and direction-finding functions for comprehensive drone detection and positioning.

Wideband Detection

70 MHz–6 GHz scanning covers a broad range of drone communication signals.

Reliable Outdoor Operation

IP66 protection and -40°C to 60°C operating temperature support stable performance in demanding environments.

Long-Range Detection

Detection distance reaches up to ≥10 km under suitable line-of-sight conditions.

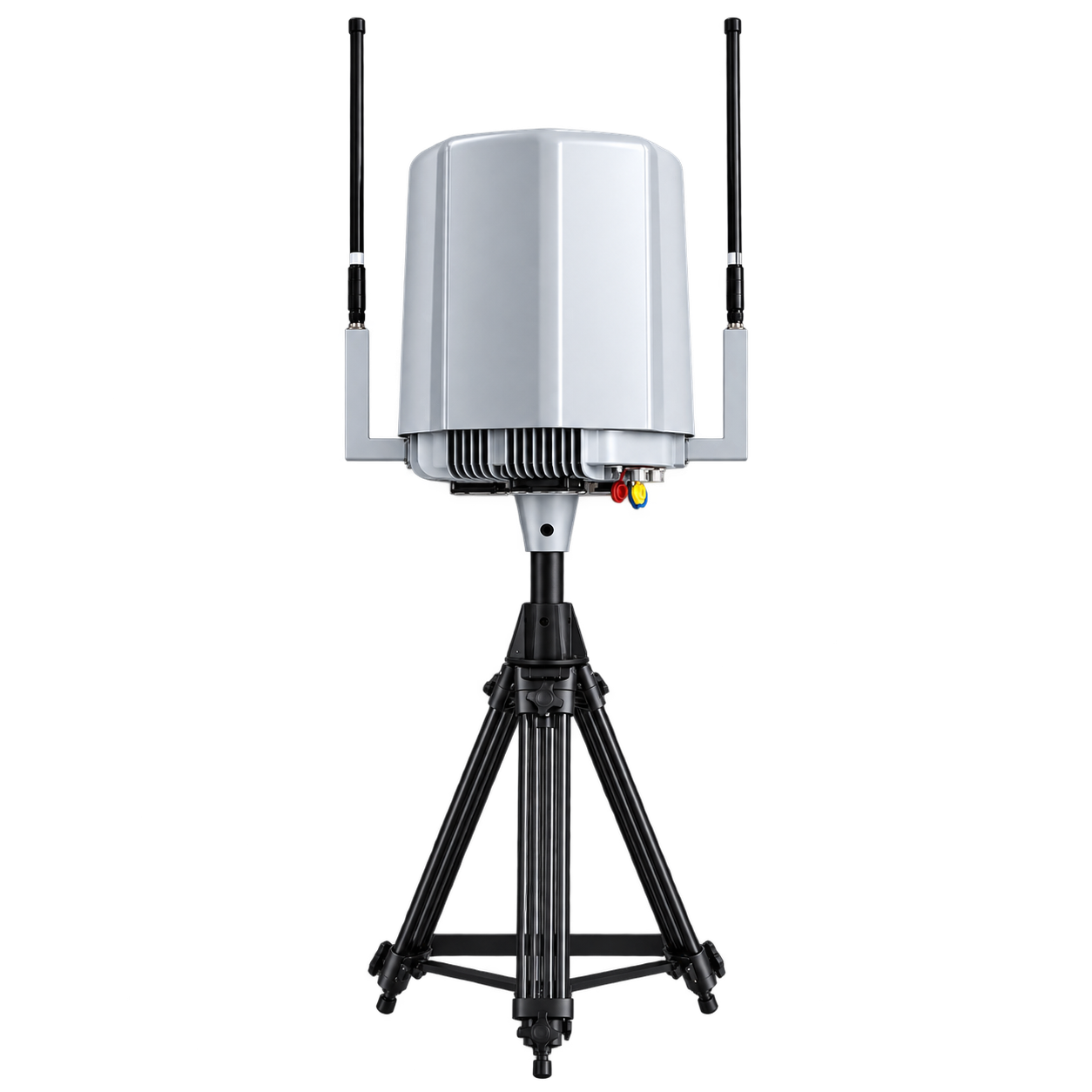

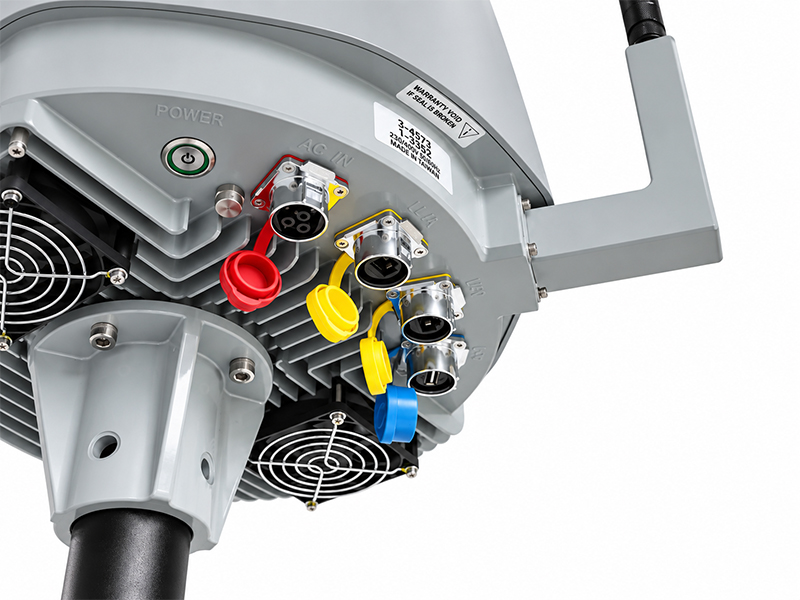

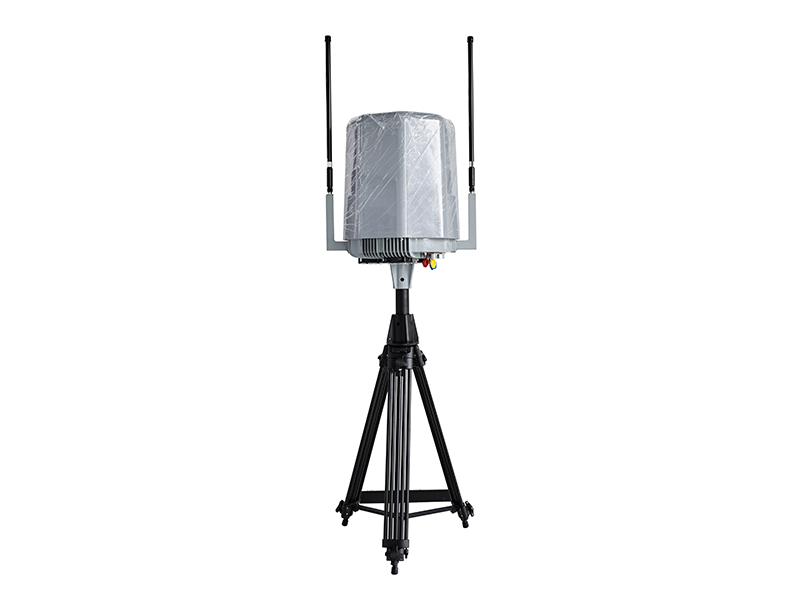

PRODUT IMAGE

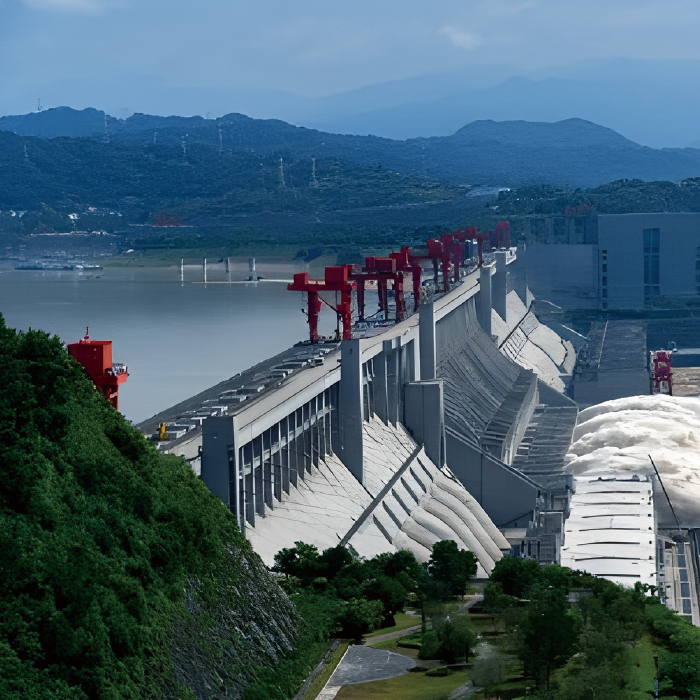

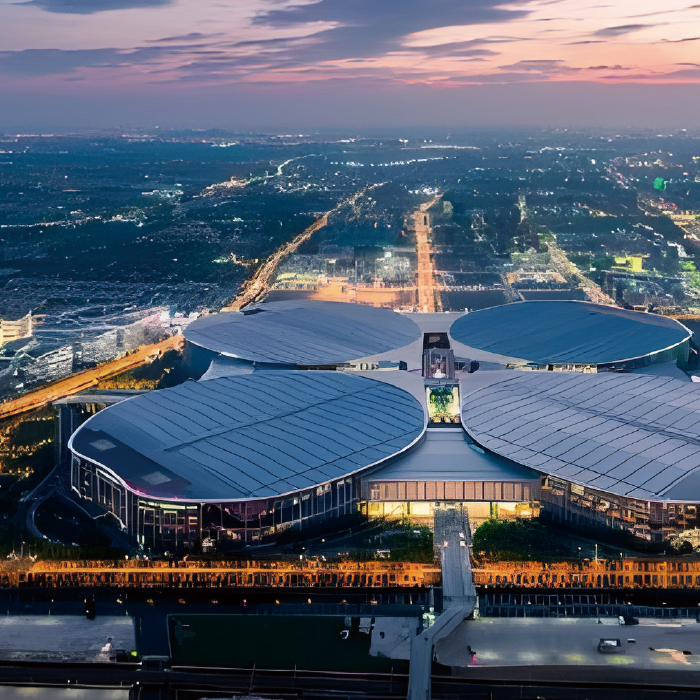

APPLICATION SCENARIOS

TECHNICAL SPECIFICATIONS

Item	Specification
Model	TTSK-DGA1-01
Detection Frequency Range	70 MHz–6 GHz
FPV Analog Video Detection Frequency	500 MHz–6 GHz
FPV Analog Video Detection Distance	≥1.5 km, supports real-time analog video viewing
Key Detection Frequency Bands	800 MHz, 900 MHz, 1.2 GHz, 1.4 GHz, 2.4 GHz, 5.2 GHz, 5.8 GHz
Maximum Detection Distance	≥10 km
DID Detection Distance	≥10 km; O2/O4 ≥10 km, O3/O3+ ≥5 km
RID Detection Distance	≥2 km
Supported Protocols / Models	DID: O2, O3, O3+, O4, O4+; supports RID-enabled mainstream drones
Horizontal Detection Range	360°
Detection Response Time	≤5 s
Detection Information	Distance, altitude, speed, position, model, SN, take-off point, return point, real-time trajectory, etc.
Device Weight	≤16 kg
Device Size	Φ400 × 531 mm
AI Self-Learning Model Addition	Optional
