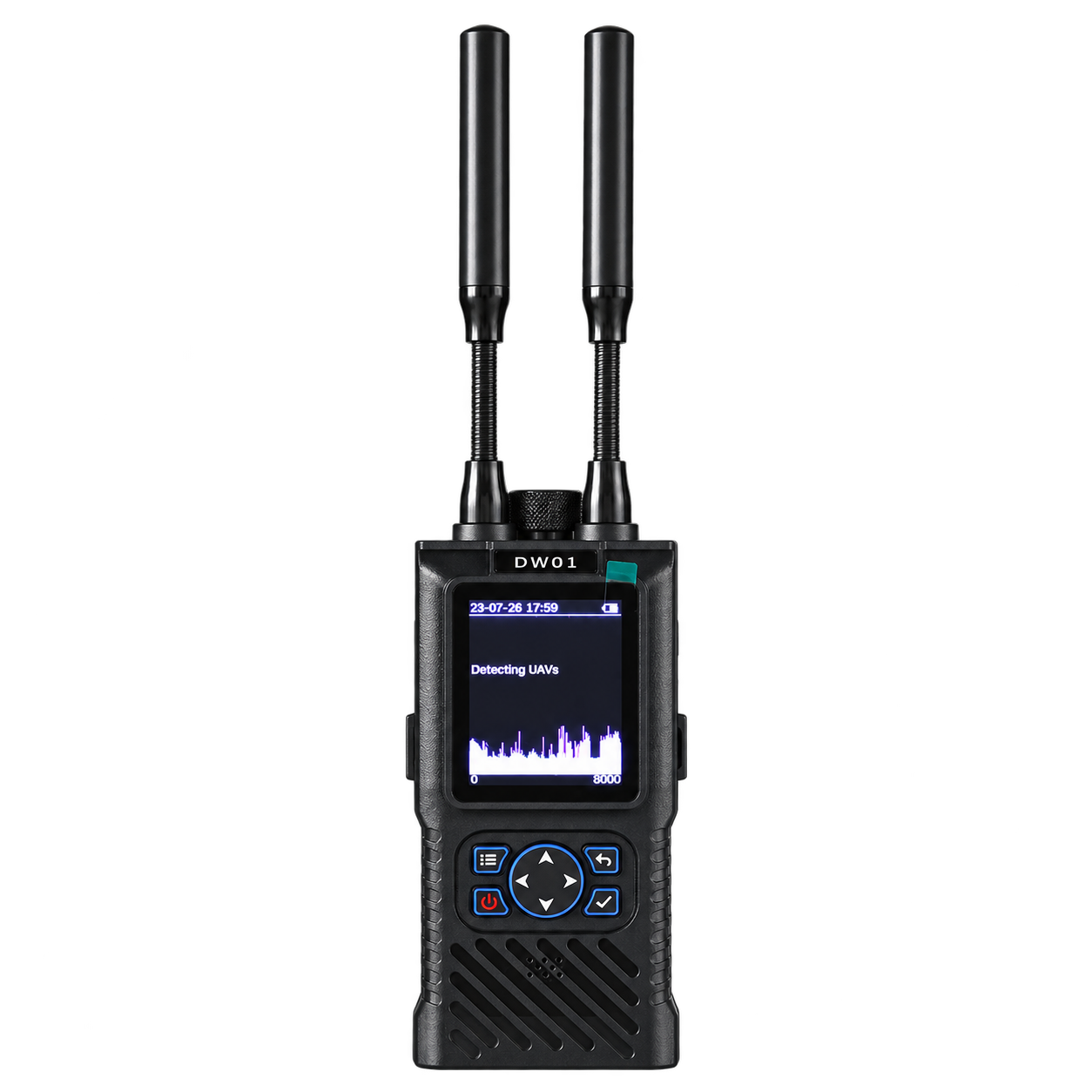

TTSK-DW01 Handheld Ultra-Wideband Drone Detector 0–8000MHz FPV UAV Detection Device

Item No.: TTSK-DW01

KEY FEATURES

Ultra-Wideband Detection

Covers 0–8000MHz with wide-spectrum scanning for comprehensive drone signal detection.

Mainstream Drone Compatibility

Supports detection of mainstream drone brands including DJI and Autel.

Real-Time FPV Video Capture

Supports real-time capture and display of analog FPV video transmission signals.

Optional Direction Finding

Supports directional antenna replacement for faster signal source locating.

Long Battery Life & Outdoor Use

Up to 7 hours of operation with a replaceable 2900mAh battery and IP54 protection.

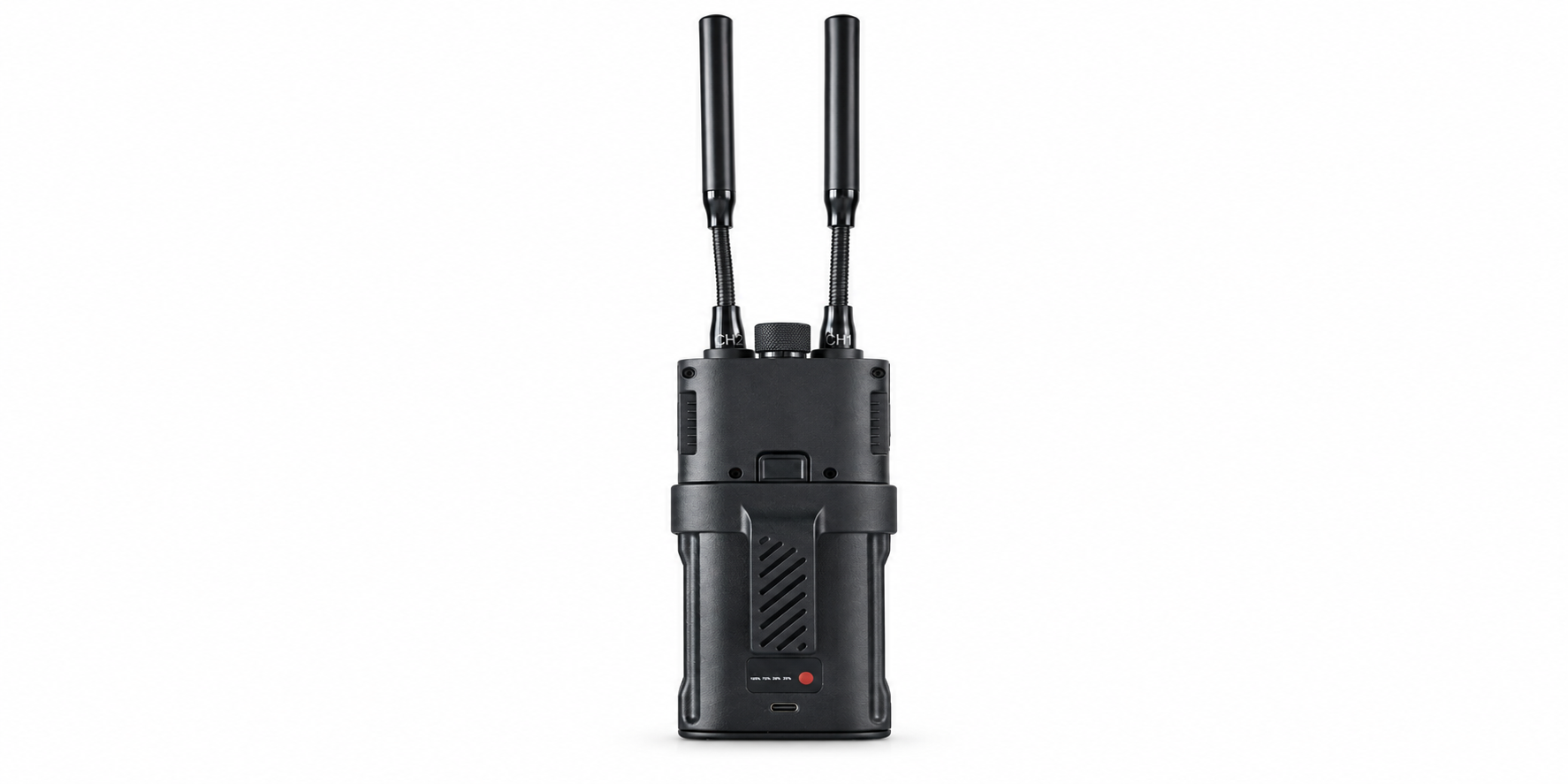

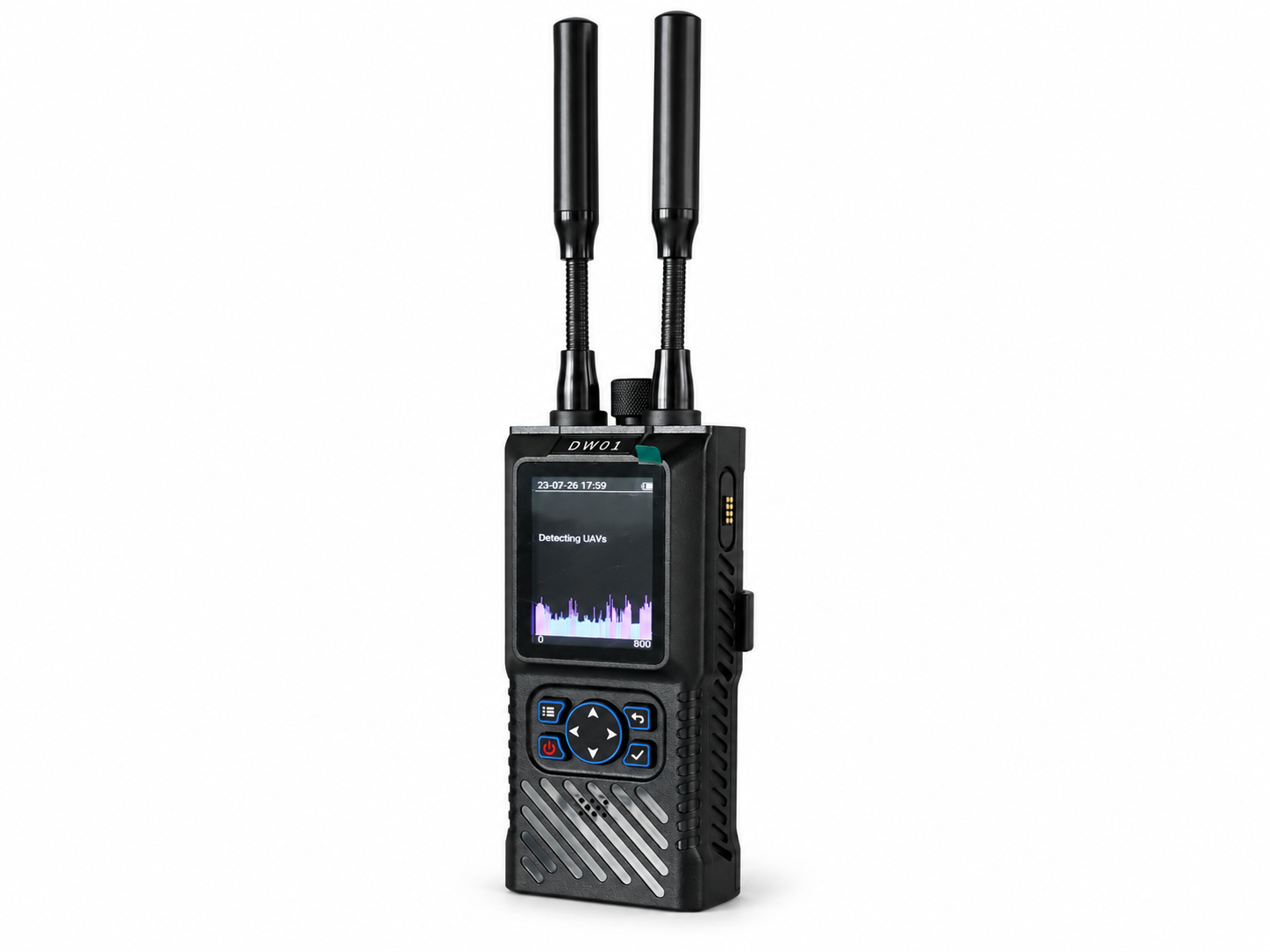

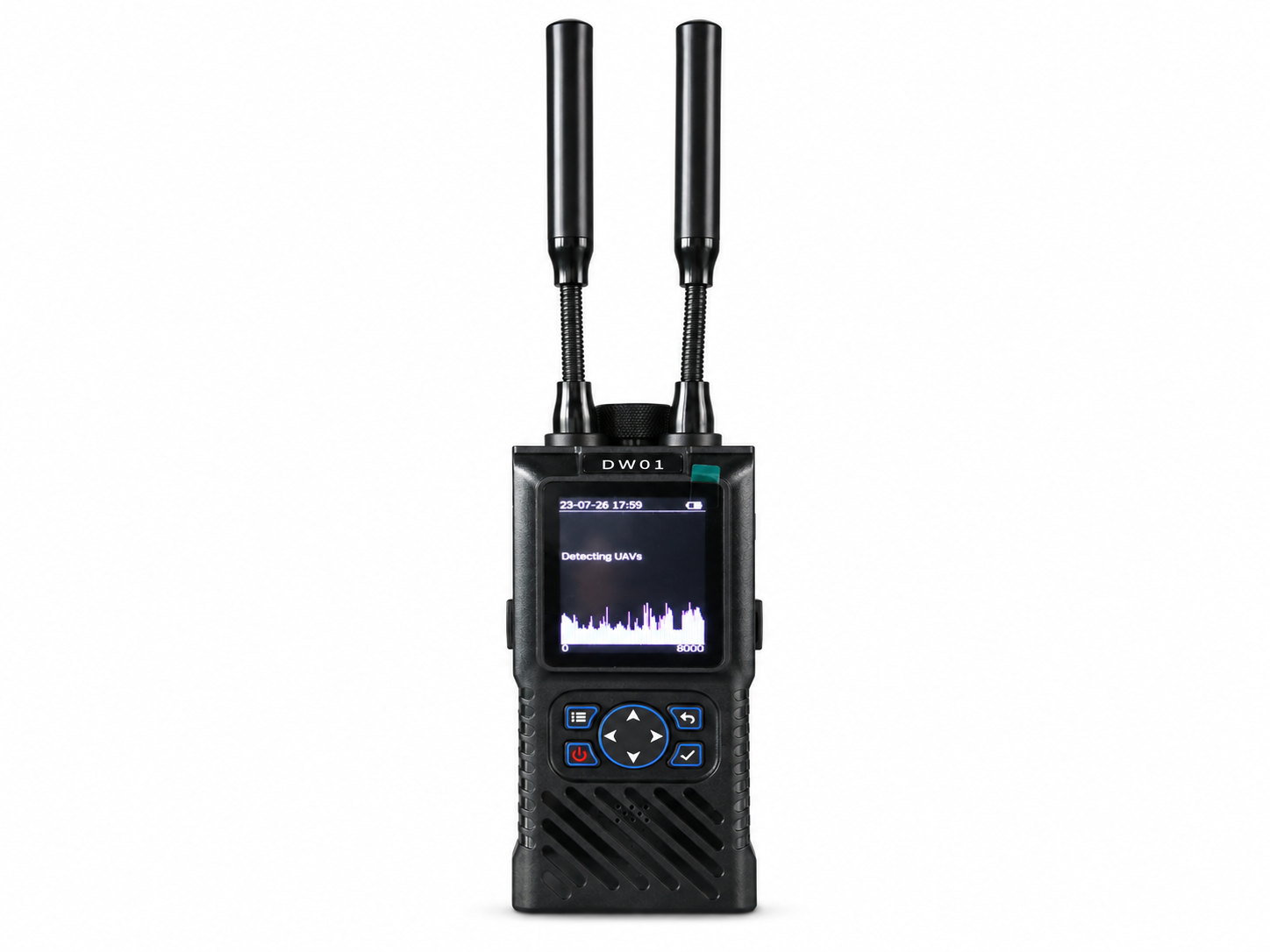

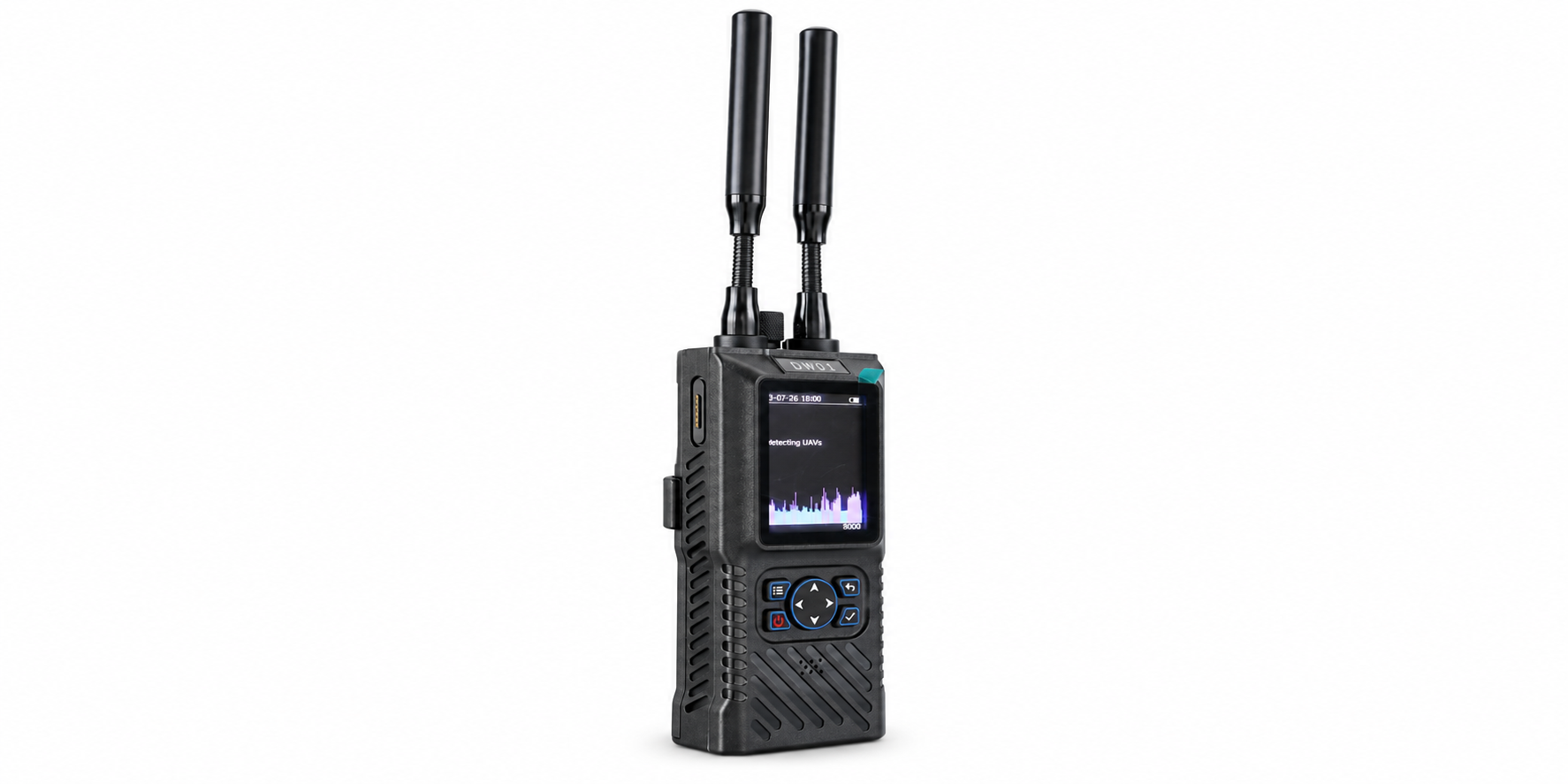

PRODUT IMAGE

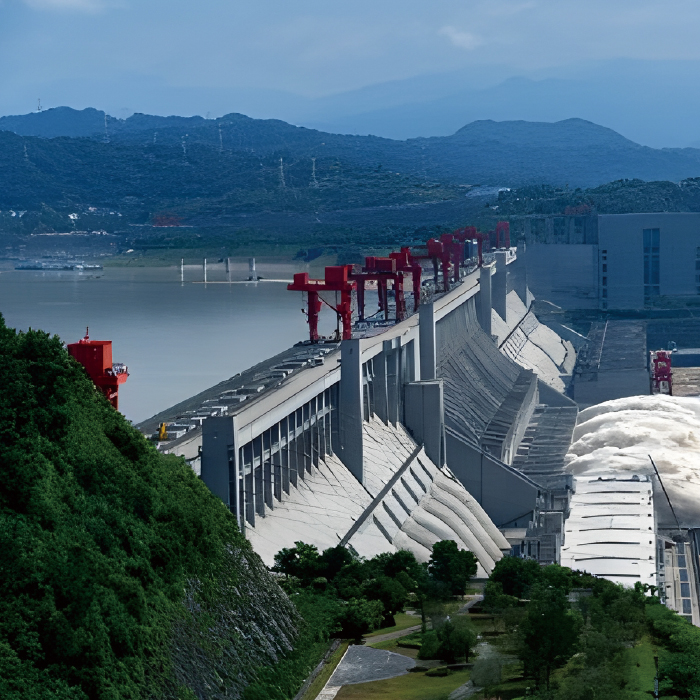

APPLICATION SCENARIOS

TECHNICAL SPECIFICATIONS

Item	Specification
Model	TTSK-DW01
Receiver Frequency	0–8000 MHz
Video Capture Frequency	0–8000 MHz
Recognition Type	OFDM HD Image Transmission / FM Analog FPV Signal
Detection Distance	Up to 1 km
Alarm Method	Video & Audio-Visual
Log Recording	Memory Card Recording
Data Export Interface	Dedicated Magnetic Cable
Alert Modes	Mute / Vibration / Volume
Battery Capacity	2900 mAh
Battery Life	≥7 Hours
Operating Weight	≤580 g
Protection Rating	IP54
Dimensions	≤164 × 44 × 68 mm (without antenna)
