TTSK-DC01 Portable Drone Detector 100MHz-6GHz 5km Passive UAV Detection and Positioning System

Item No.: TTSK-DC01

KEY FEATURES

Portable Integrated Design

Suitcase-style integrated structure with a 13.3-inch HD display, dual batteries and 6–7 hours of operating time.

Passive Detection

Passive signal receiving design with no active RF transmission for discreet and reliable drone monitoring.

Wideband 100MHz–6GHz Detection

Covers 100MHz–6GHz with key frequency bands including 433MHz, 900MHz, 1.4GHz, 2.4GHz, 5.2GHz and 5.8GHz.

Up to 5km Detection Range

Supports CRPC analysis, RID resolution and Drone ID resolution at distances up to 5km under specified test conditions.

Identification & Positioning

Supports CRPC, Drone ID and RID protocol parsing for drone identification, positioning and trajectory analysis.

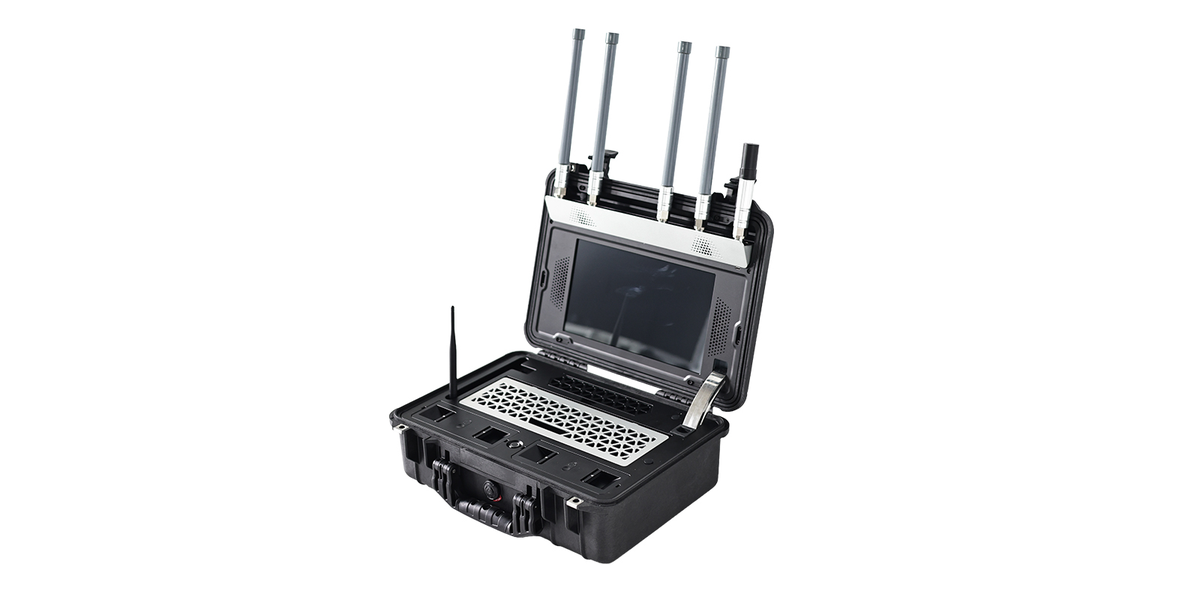

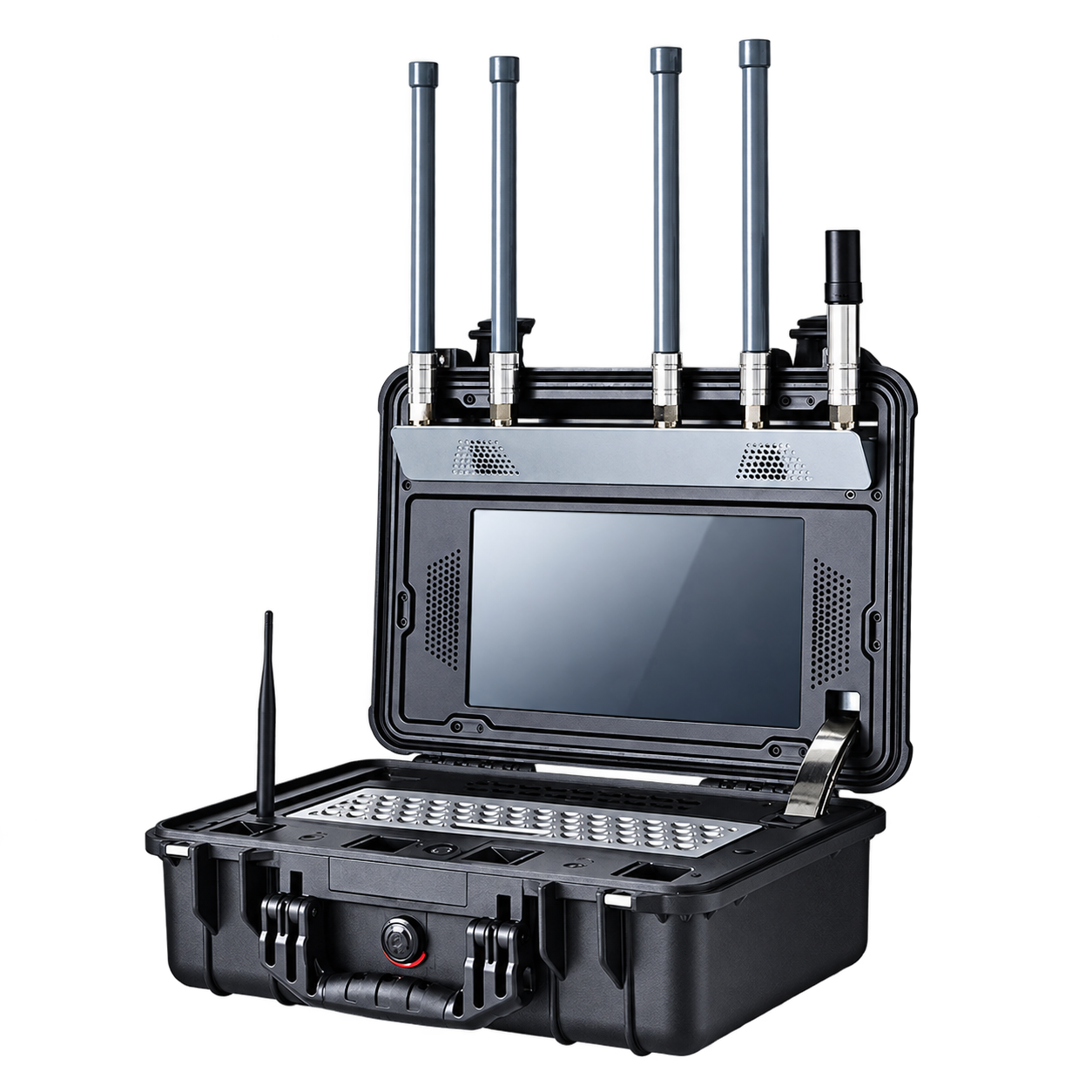

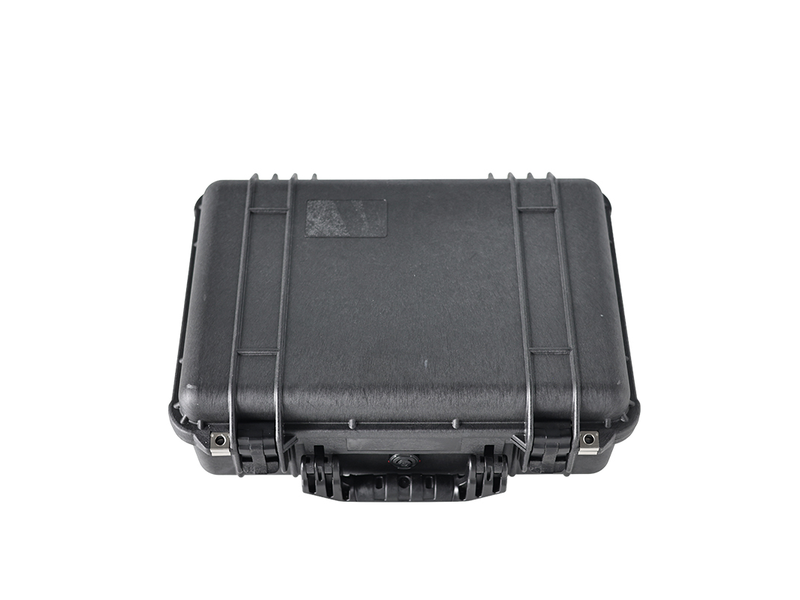

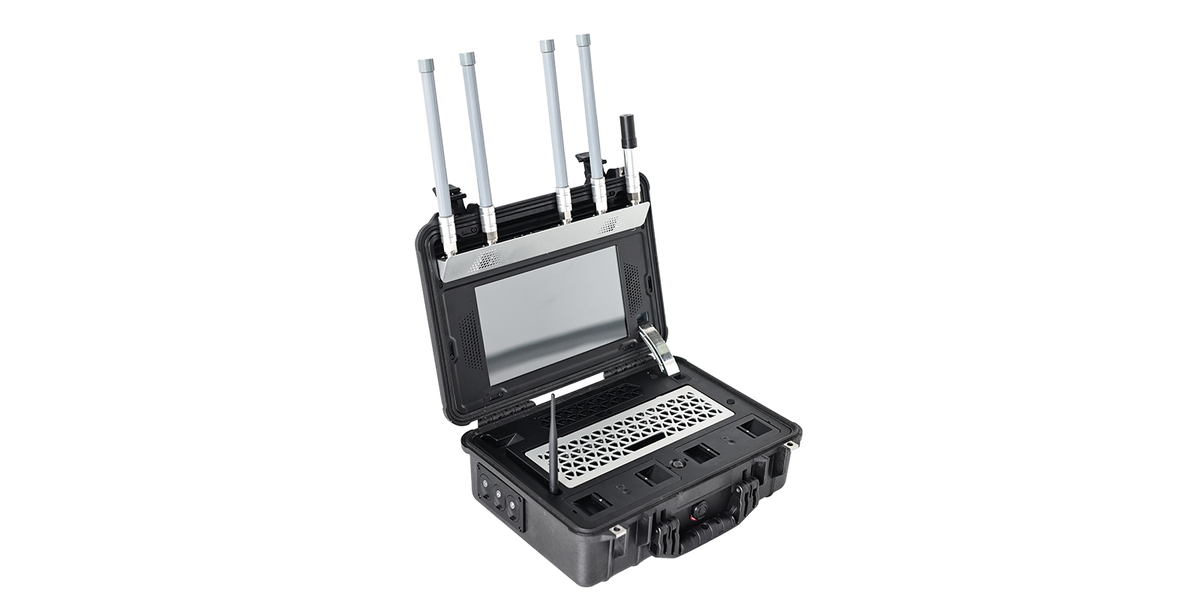

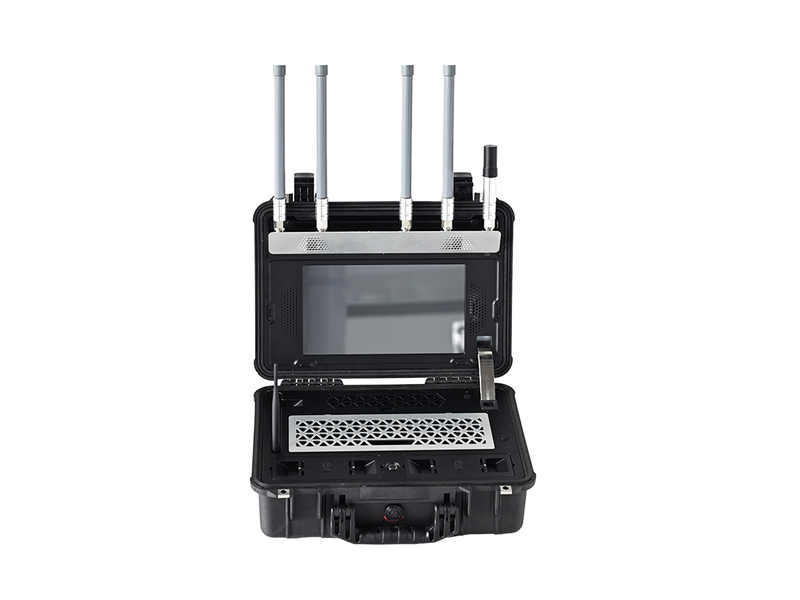

PRODUT IMAGE

APPLICATION SCENARIOS

TECHNICAL SPECIFICATIONS

Item	Specification
Model	TTSK-DC01
Detection Principle	Passive signal receiving
Detection Frequency	100 MHz–6 GHz
Key Frequency Bands	433 MHz, 900 MHz, 1.4 GHz, 2.4 GHz, 5.2 GHz, 5.8 GHz
Maximum Detection Radius	Up to 5 km*
Positioning Method	Protocol parsing and positioning
Protocol Parsing	CRPC, Drone ID, RID
Display	13.3-inch TFT LCD, 1920 × 1080
Battery Capacity	28.8 V / 9 Ah × 2
Battery Life	6–7 hours
Power Supply	Lithium battery / AC 110–240 V adapter
Operating Power Consumption	71 W
Closed Size	470 × 357 × 176 mm
Open Size	470 × 472 × 690 mm
Equipment Weight	14.4 kg
Operating Temperature	-40°C to 65°C (adapter); -25°C to 55°C (battery)
Protection Rating	IP66 with lid closed
