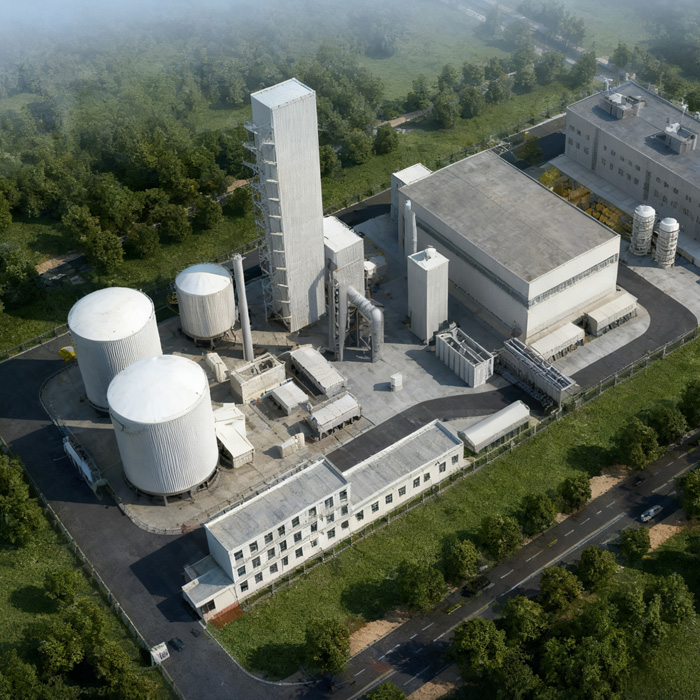

Chemical Industrial Parks
Power Grid Systems
VIP Transit Protection

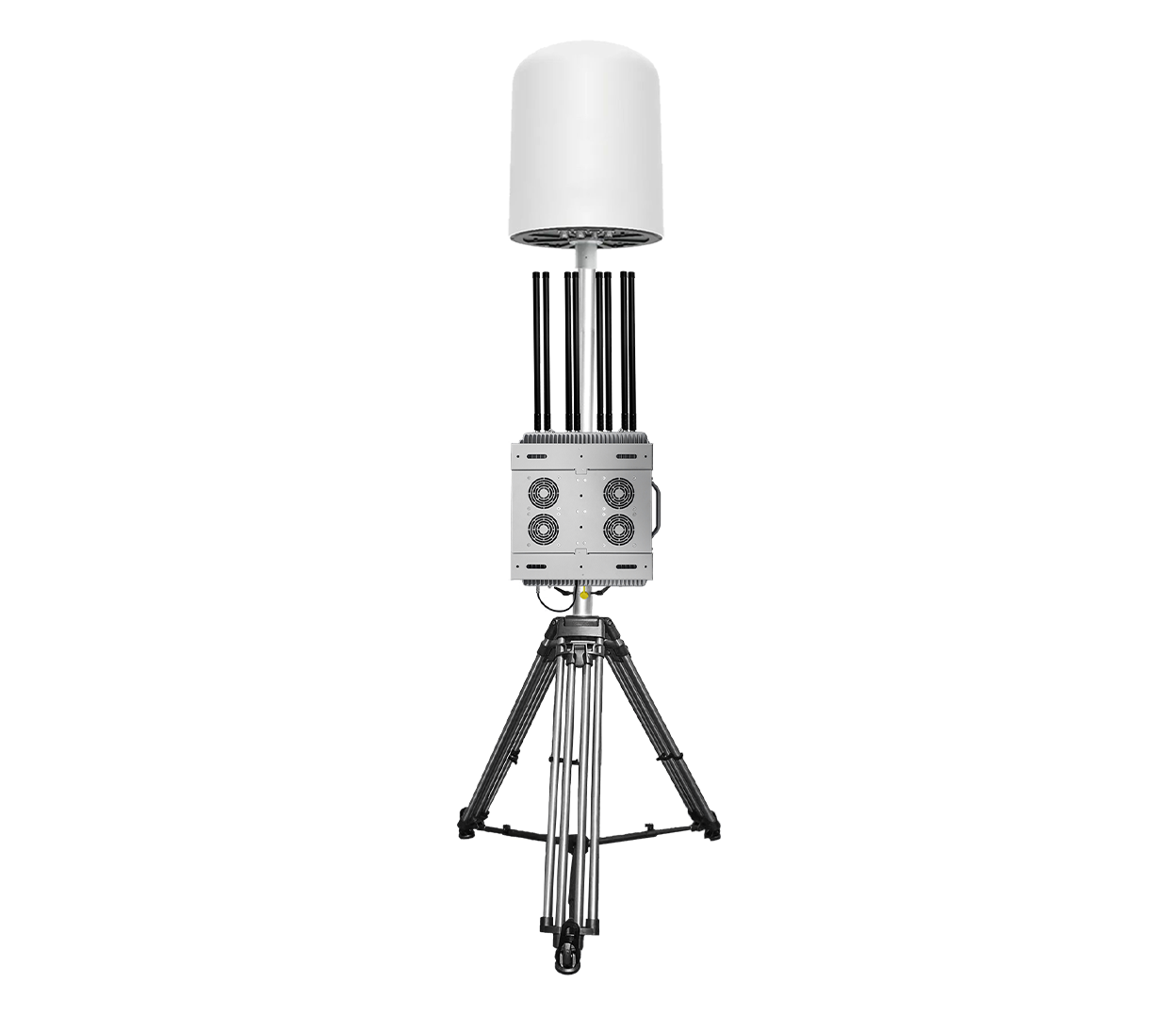

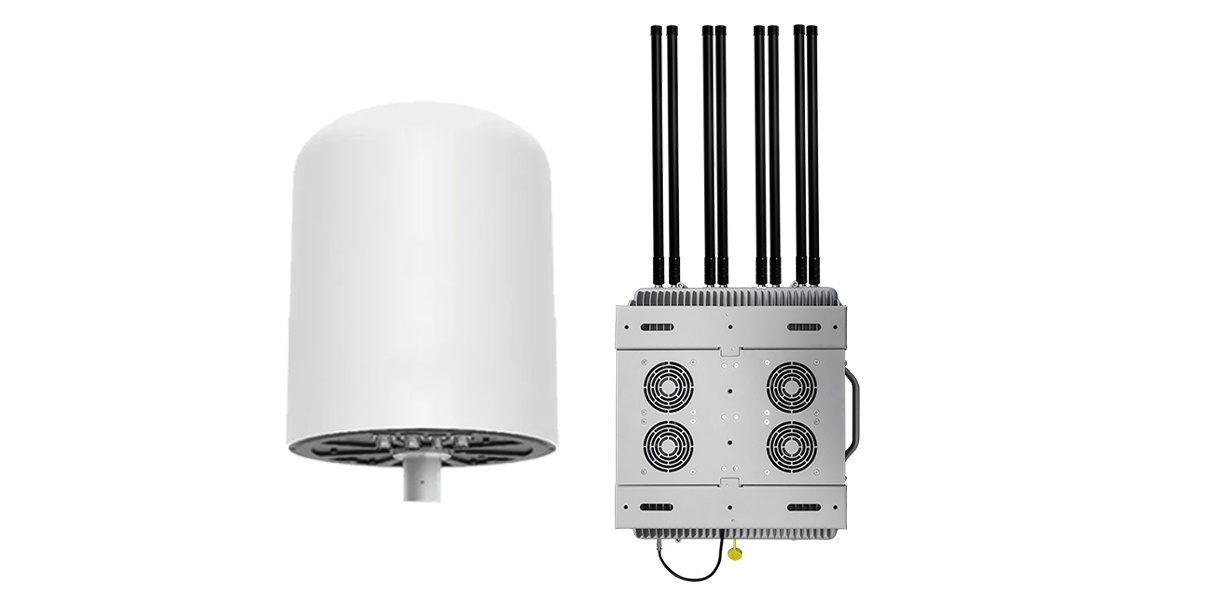

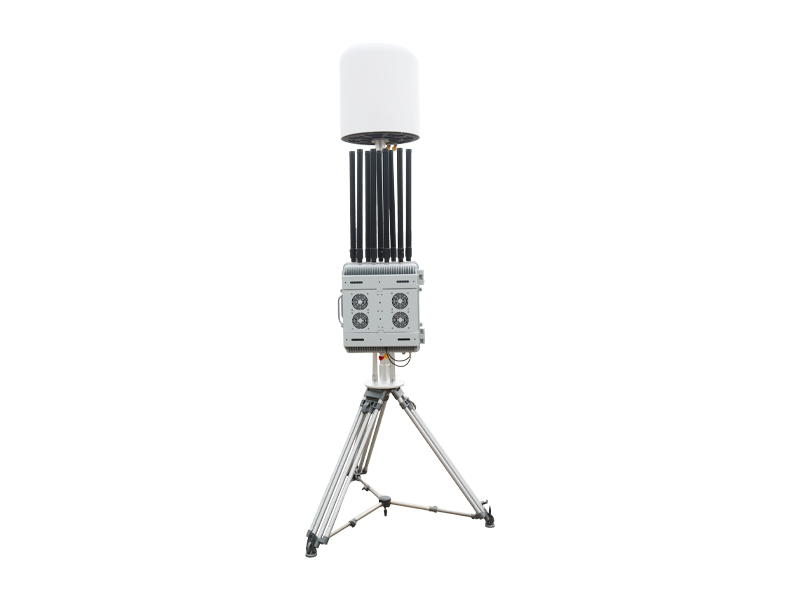

TECHNICAL SPECIFICATIONS
| Item | Specification |
| Detection Frequency Band | 100 MHz-6000 MHz |
| Detection &Positioning Range | 1-10 km |
| Detection Altitude | 0-1000 m |
| Simultaneous Detection Targets | ≥5 drones |
| Simultaneous Trajectory Tracking | ≥5 flight paths |
| Positioning Accuracy | ≤10 meters |
| Azimuth Error | ≤1.5°(RMS) |
| Detection Success Rate | ≥95% |
| ldentification Response Time | ≤5 seconds |
| Protection Grade | IP65 |
| Operating Temperature | -20℃~+65℃ |
| Power Consumption | ≤100W |
| Device Weight | ≤15kg |
TTSK-FZ-10AB Vehicle-Mounted Drone Detection & Defense System offers 5km detection and 3km jamming range. Supports high-speed (150km/h) operation, 6-band disruption, and 360° coverage. Weighs 64.25kg, ideal for mobile convoy protection.
ltem No.: TTSK-FZ-10AB
learn more
TTSK-TDZ-2C Fixed Drone Detection & Jamming System offers 10km detection and 3km jamming range. Covers 70MHz-6GHz, supports 13 frequency bands and 24/7 unmanned operation. Withstands -40℃ to 60℃, ideal for critical area protection
ltem No.: TTSK-TDZ-2C
learn more
TTSKURA500 Handheld UAV Detection & Countermeasure Device integrates detection, positioning and jamming in 6kg portable design. Covers 433MHz-5.8GHz with 500-1500m range. Supports OcuSync protocol targeting and swappable battery operation for tactical missions.
ltem No.: TTSKURA500
learn more
