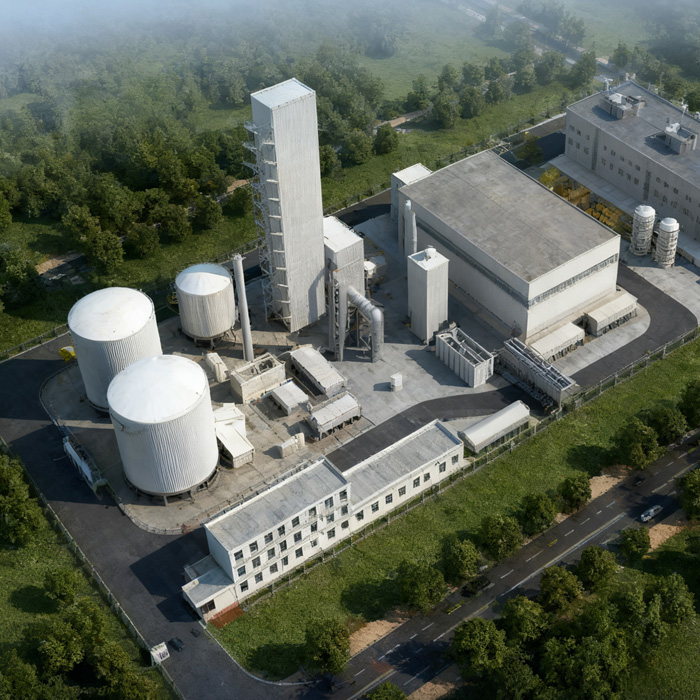

Important Facilities

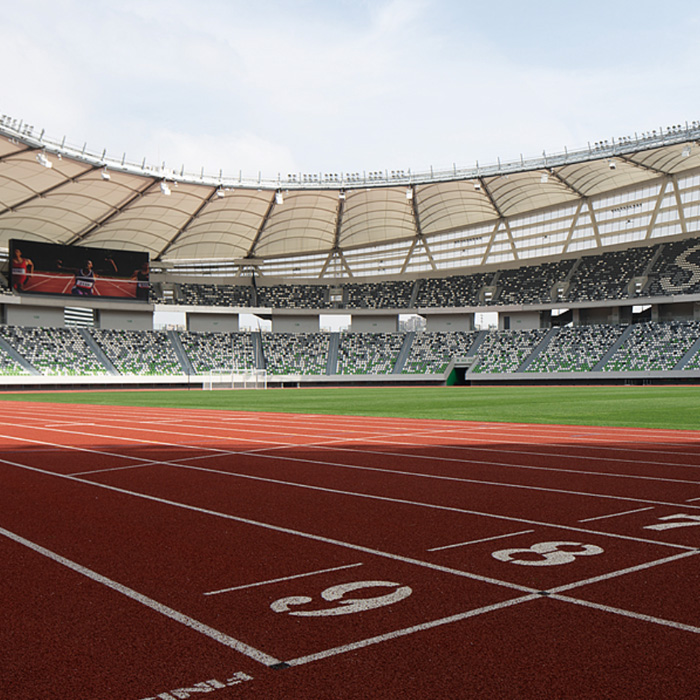

Major Sporting Events
TECHNICAL SPECIFICATIONS
Detection Performance
| Item | Specification |
| Recognized UAV Models | DJI,Autel,ZLLRC,Yuneec,and FPV drones;expandable database |
| Locatable UAV Models | DJI drones using OcuSync2(02)and OcuSync3(03)protocols |
| Detection Frequency Bands | 433MHz,845MHz,915MHz,1.2GHz,1.4GHz,2.4GHz,5.2GHz,5.8GHz |
| Detection Range | 500-1500 meters(affected by environment and UAV type) |
| Direction Finding Accuracy | ≤30°(RMS) |
| Positioning Accuracy | ≤10 meters |
Countermeasure Performance
| Item | Specification |
| 900MHz Band | 30W power amplifier |
| 1.4GHz Band | 30W power amplifier |
| 2.4GHz Band | 30W power amplifier |
| 5.2GHz Band | 30W power amplifier |
| 5.8GHz Band | 30W power amplifier |
| 1.5GHz Band | 10W power amplifier |
| 600MHz-6GHz Band | 20W power amplifier,software adjustable |
| Jamming Range | 500-1500 meters(environment dependent) |
TTSKXM-J Fixed Drone Detection & Jamming System integrates 10km passive detection with 550W 9-band jamming (3km range). Tracks 5+ drones, enables auto/manual disruption, and supports 24/7 all-weather operation for critical site protection
ltem No.: TTSKXM-J
learn more
TTSK-FZ-10AB Vehicle-Mounted Drone Detection & Defense System offers 5km detection and 3km jamming range. Supports high-speed (150km/h) operation, 6-band disruption, and 360° coverage. Weighs 64.25kg, ideal for mobile convoy protection.
ltem No.: TTSK-FZ-10AB
learn more
TTSK-TDZ-2C Fixed Drone Detection & Jamming System offers 10km detection and 3km jamming range. Covers 70MHz-6GHz, supports 13 frequency bands and 24/7 unmanned operation. Withstands -40℃ to 60℃, ideal for critical area protection
ltem No.: TTSK-TDZ-2C
learn more
