TECHNICAL SPECIFICATIONS
| Item | Specification |
| Detection Frequency Range | 70MHz-6GHz full-band scanning &detection |
| Key Detection Bands | Key bands:800MHz,900MHz,1.2GHz,1.4GHz, 2.4GHz,5.2GHz,5.8GHz |
| Detection Range | ≥10km(depends on environment) |
| FPV Signal Detection Range | ≥1.5km(depends on environment) |
| Analog Video Capture | Supports analog video signal capture |
| Detection Coverage | 360°horizontal,-90°~+90°vertical |
| Detection Response Time | ≤10 seconds |
| Direction Finding Accuracy | ≤±3°(RMS,no obstruction/EMl environment) |
| Detection Display Information /Displayed Detection Data | Distance,altitude,speed,GPS,model,SN, takeoff/home point,trajectory,etc. |
| Jamming Range | ≥3km(depends on environment) |
| Jamming Coverage Angle | Horizontal 360° |
| Jamming Frequency Bands and Power Output | Multi-band jamming(e.g.,700-840MHz 50W, 2.4GHz 100W,5.8GHz 100W,etc.) |
| Jamming Response Time | ≤7 seconds |
| Spoofing Signal Types | GPS,Beidou,GLONASS |
| Spoofing Radius | 1-3km(depends on environment and drone type) |
| Spoofing Strategy | Directional expulsion,area denial,spatial spoofing,temporal-spatial spoofing |
| Spoofing Response Time | ≤4 seconds |

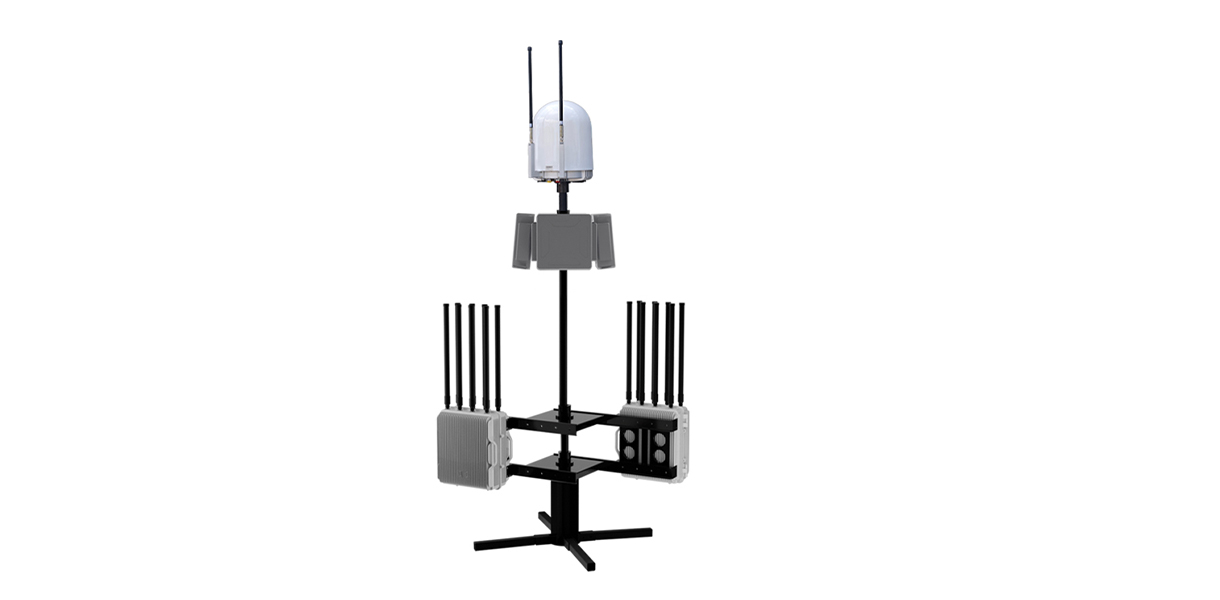

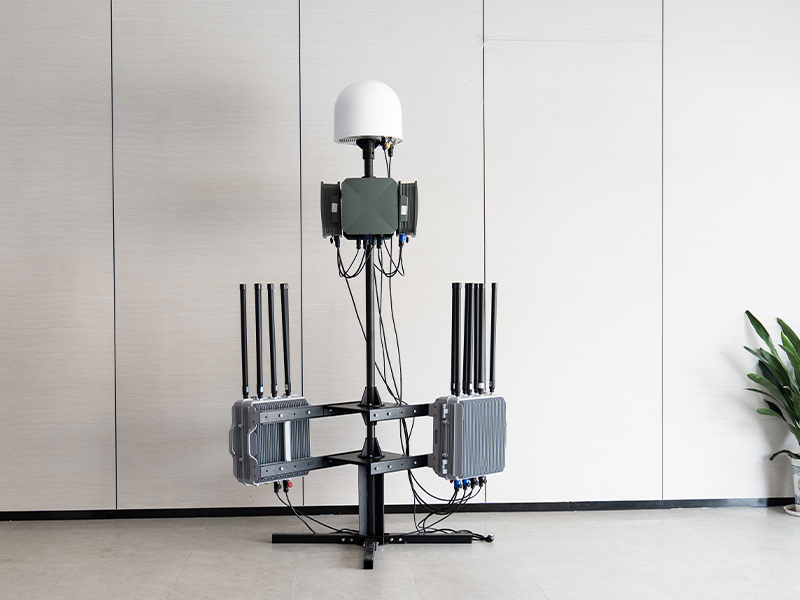

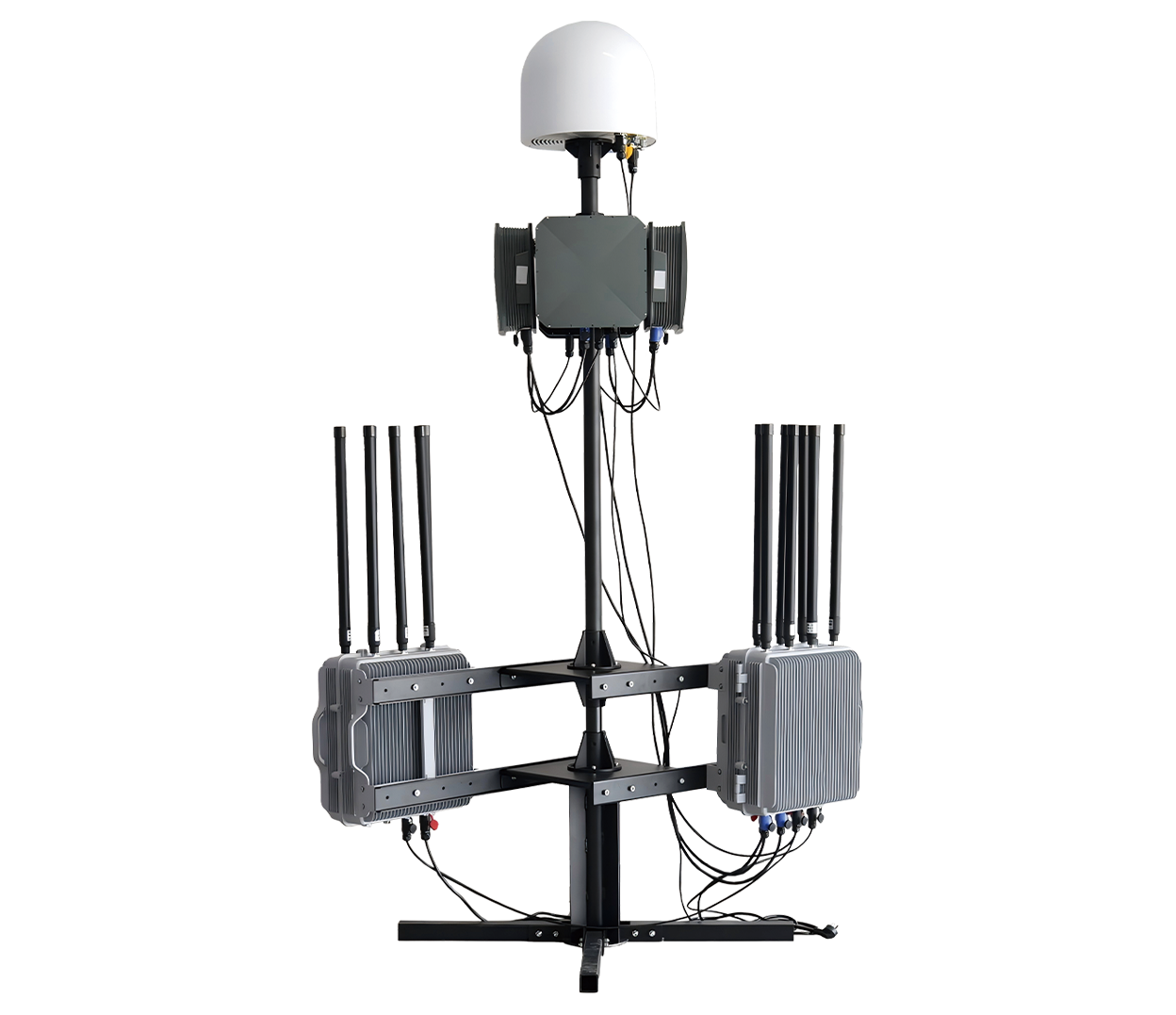

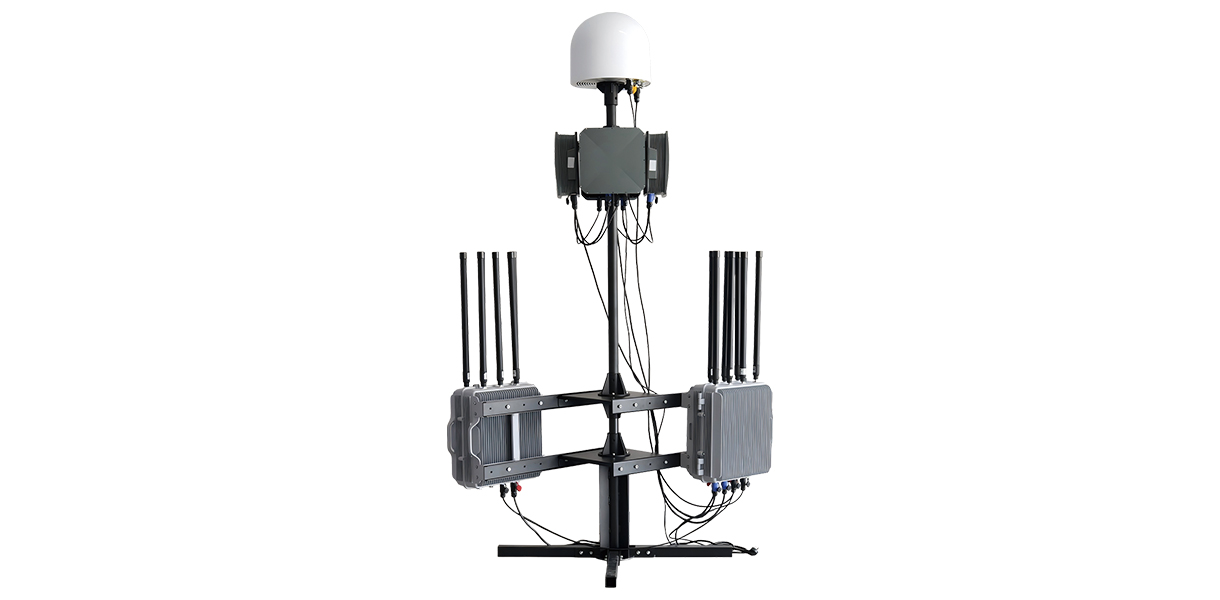

TTSKXM-J Fixed Drone Detection & Jamming System integrates 10km passive detection with 550W 9-band jamming (3km range). Tracks 5+ drones, enables auto/manual disruption, and supports 24/7 all-weather operation for critical site protection
ltem No.: TTSKXM-J
learn more
TTSK-FZ-10AB Vehicle-Mounted Drone Detection & Defense System offers 5km detection and 3km jamming range. Supports high-speed (150km/h) operation, 6-band disruption, and 360° coverage. Weighs 64.25kg, ideal for mobile convoy protection.
ltem No.: TTSK-FZ-10AB
learn more
TTSKURA500 Handheld UAV Detection & Countermeasure Device integrates detection, positioning and jamming in 6kg portable design. Covers 433MHz-5.8GHz with 500-1500m range. Supports OcuSync protocol targeting and swappable battery operation for tactical missions.
ltem No.: TTSKURA500
learn more
