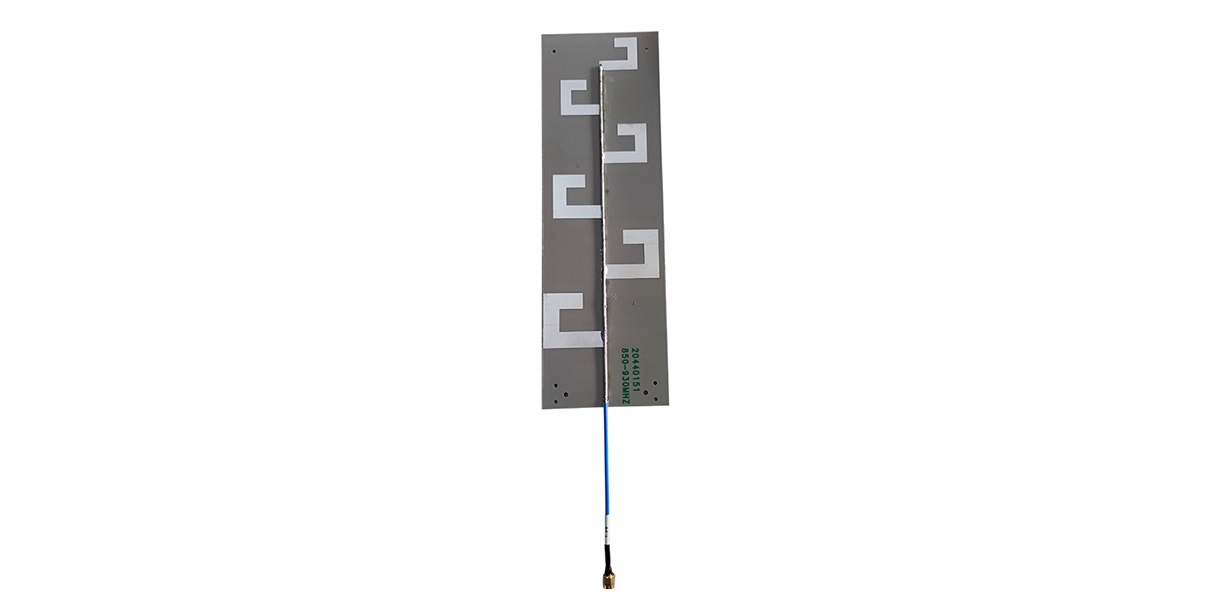

TECHNICAL SPECIFICATIONS
Electrical Specifications
| Item | Parameter |
| Frequency Range | 950-1100Mhz |
| Gain(dBi) | 5±1dBi |
| Polarization | Vertical |
| Horizontal Beam width(0º) | 65±3º |
| Vertical Beam width(0º) | 65±3º |
| Input Impedance（Ω） | 50Ω |
| Input connector type | SMA-J with RG086 15cm |
| Lightning Protection | DC Grounding |
Mechanical Specifications
| Item | Parameter |
| Sizemm(Diameter * Length) | 300*90*1.5mm |
| Packing size(mm) | 395*365*145mm |
| Antenna weight(kg) | 0.1±0.01KG |
| Radome material | Metal |
| Operating temperature(ºC) | -30～65º |
| Installation Method | Built-in installation |
Omnidirectional Fiberglass Antenna operates in 960-1070MHz with 100W power, 2dBi gain, and 360° coverage. With fiberglass radome, it withstands 36.9m/s wind and -30℃ to 65℃ temperatures. Ideal for counter-UAV systems.
ltem No.: Omnidirectional Fiberglass Antenna
learn more
TTSK-Horn Antenna covers 300-2600MHz with 5-17dBi gain and 100W power. Aluminum construction, dual polarization, and -55℃ to 75℃ operation suit demanding comms and counter-UAV applications.
ltem No.: TTSK-Horn Antenna
learn more
Omnidirectional Clover Antenna operates in 1160-1280MHz with 100W power and circular polarization. Features 360° coverage, fiberglass-brass construction, and -30℃ to 65℃ operation for navigation and counter-UAV applications.
ltem No.: Omnidirectional Clover Antenna
learn more
