TECHNICAL SPECIFICATIONS
Electrical Specifications
| Item | Parameter |
| Frequency Range | 960-1070Mhz |
| Gain(dBi) | 2±1dBi |
| VSWR | ≤2.0 |
| Polarization | Vertical |
| Horizontal Beam width(0º) | 360º |
| Vertical Beam width(0º) | 55±10º |
| Ovality(dB) | ±2dB |
| Input Impedance（Ω） | 50Ω |
| Maximum input power(W) | 100W |

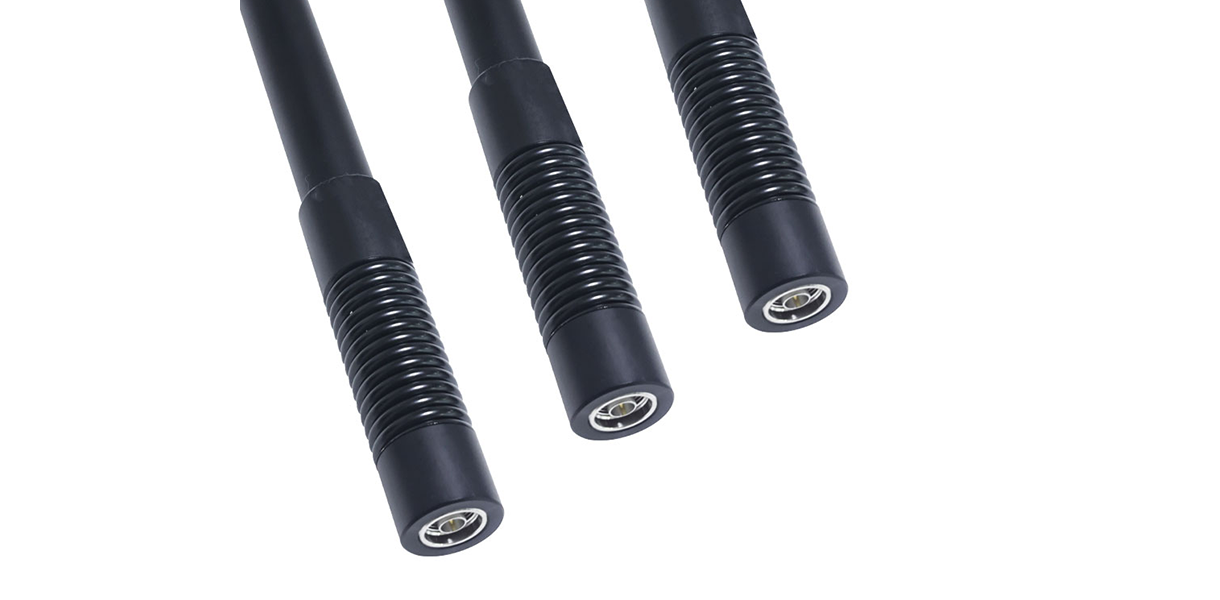

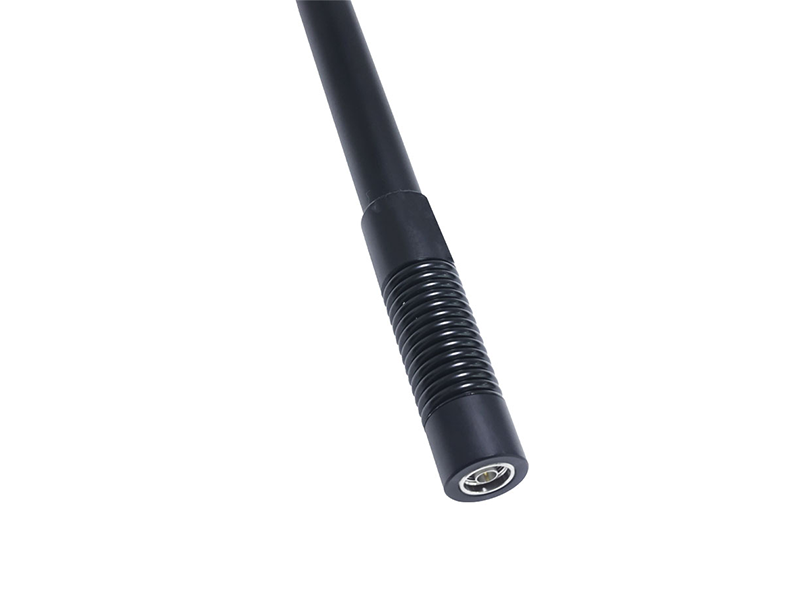

| Input connector type | N-J (embedded) |
| Lightning Protection | DC Grounding |
Mechanical Specifications
| Item | Parameter |

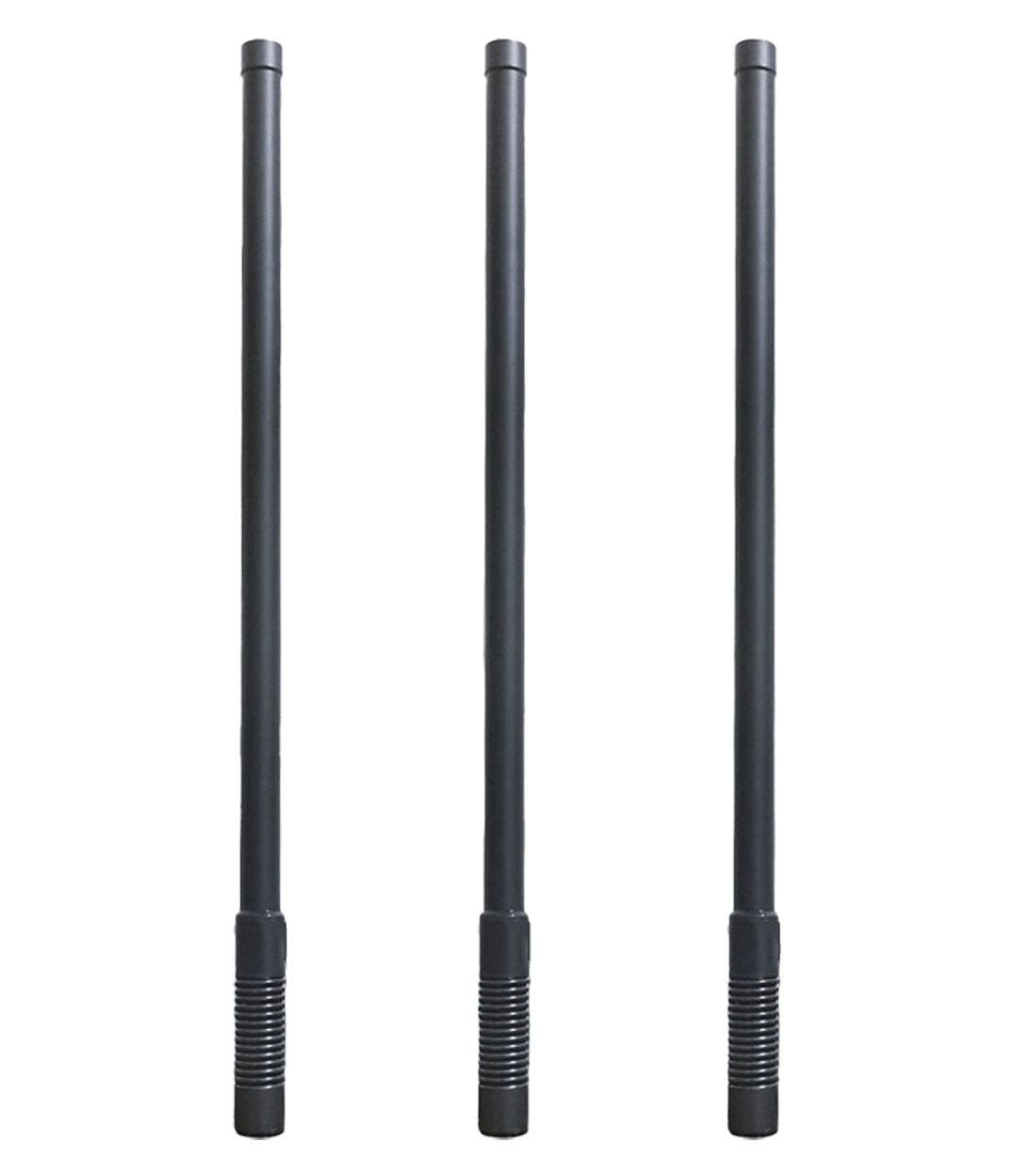

| Sizemm(Diameter * Length) | ɸ20/25/32*450mm |
| Packing size(mm) | 510*300*240mm |
| Antenna weight(kg) | 0.4±0.1KG |
| Operational Humidity(％) | 10-95% |
| Rated Wind Velocity（m/s) | 36.9m/s |

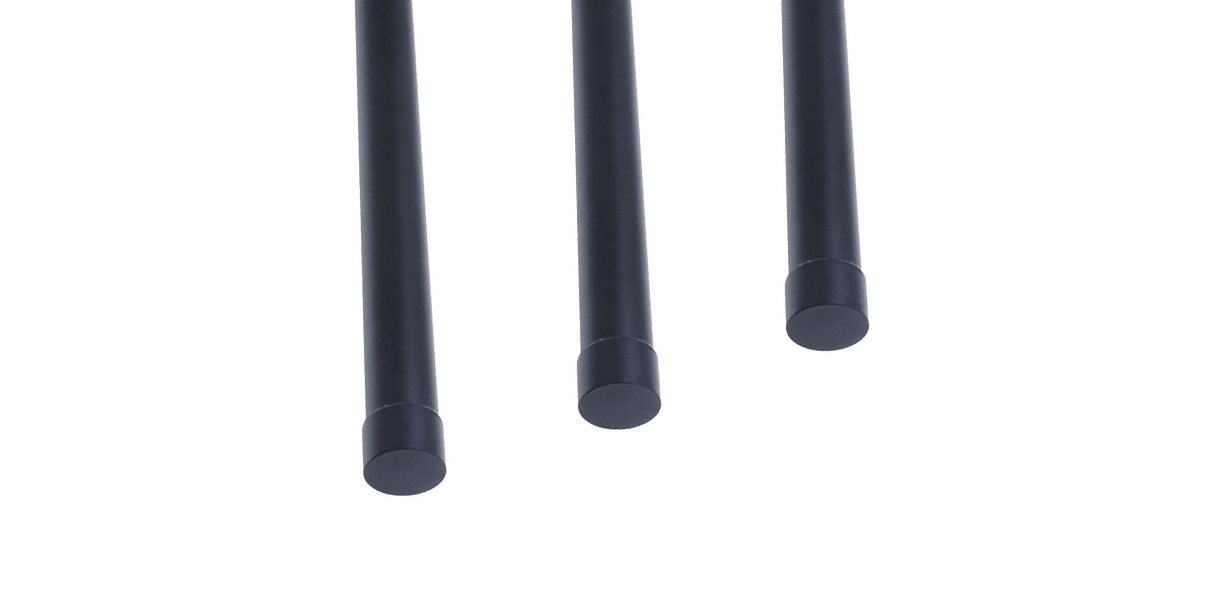

| Radome Color | Black |
| Radome material | Fiberglass |
| Operating temperature(ºC) | -30～65º |
| Installation Method | Machine mounting |
