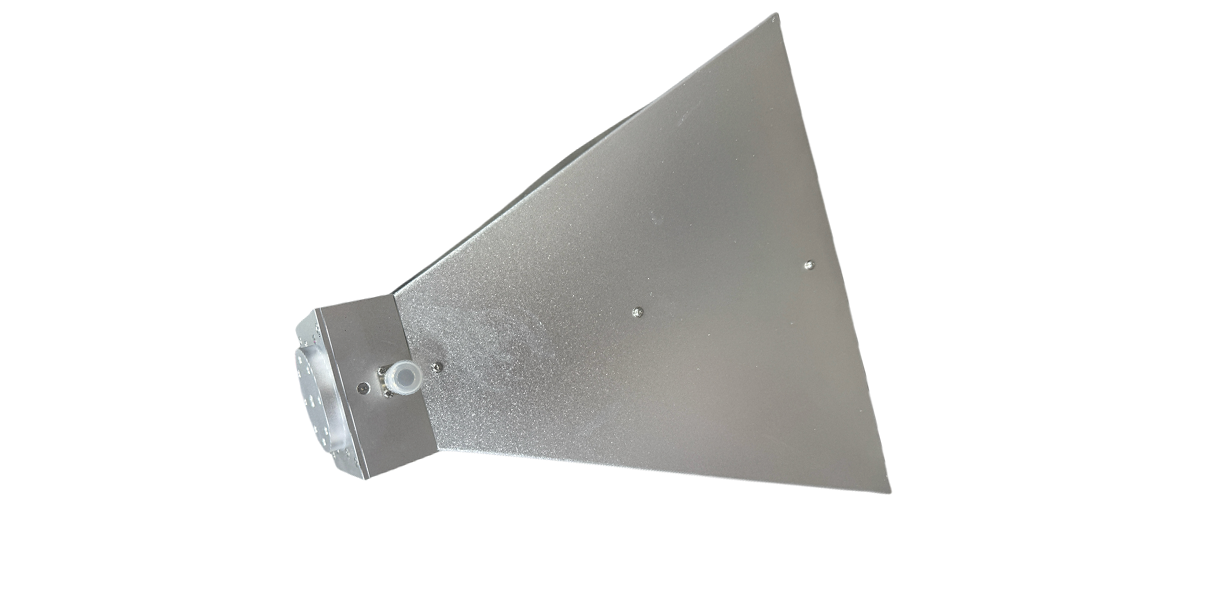

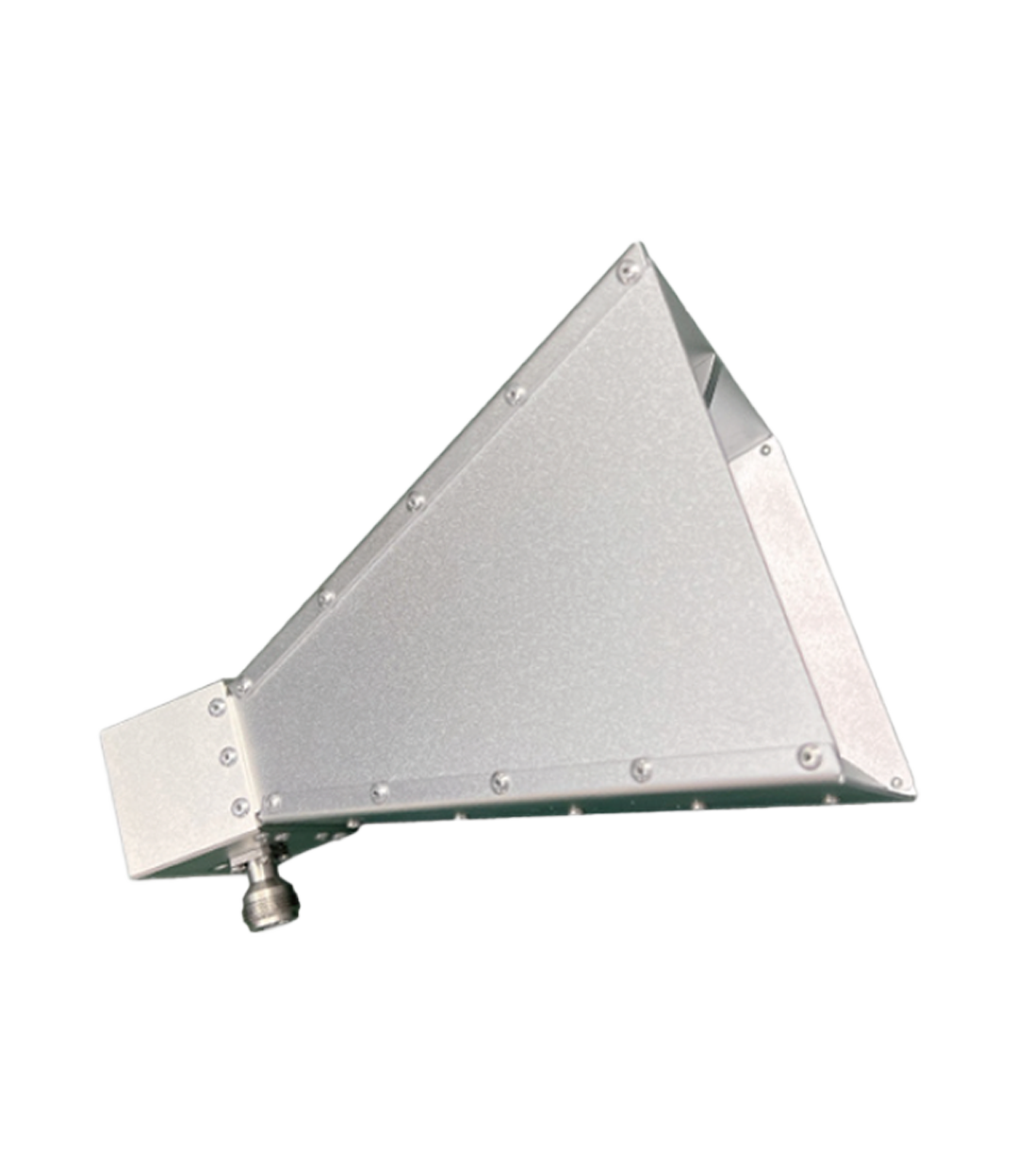

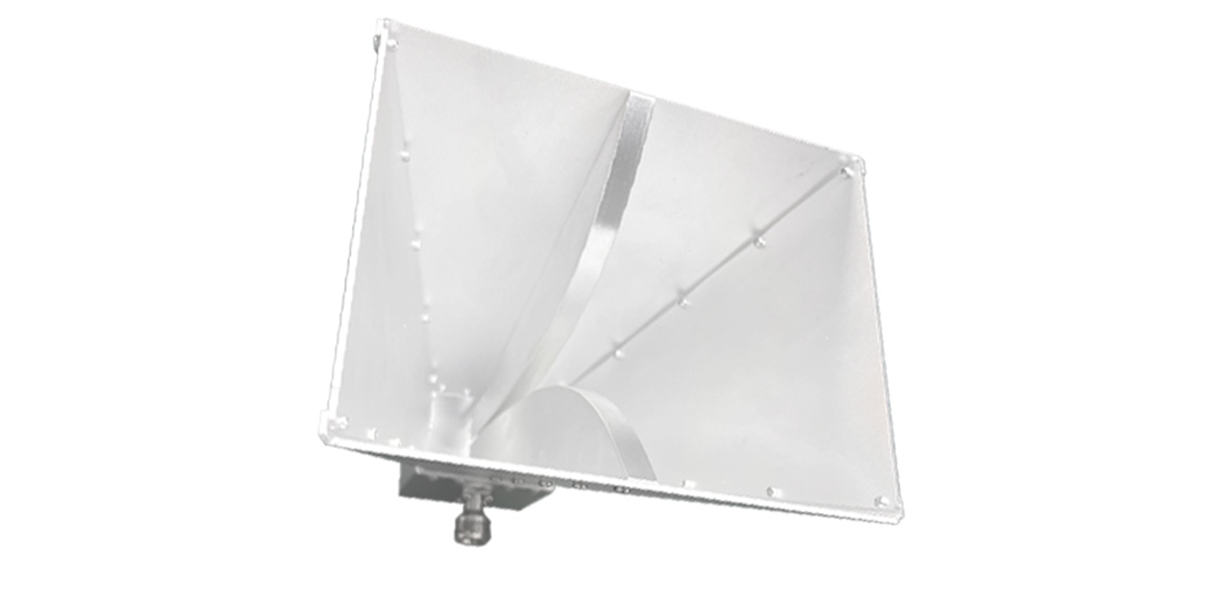

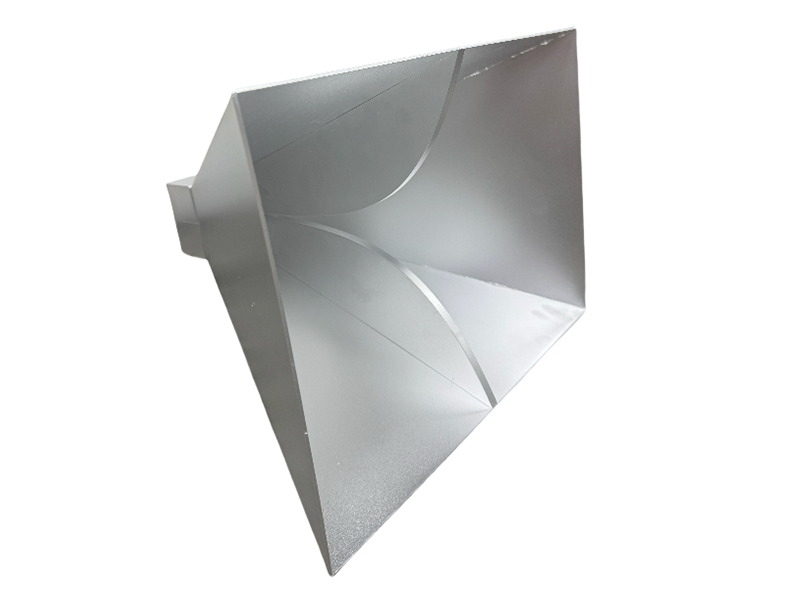

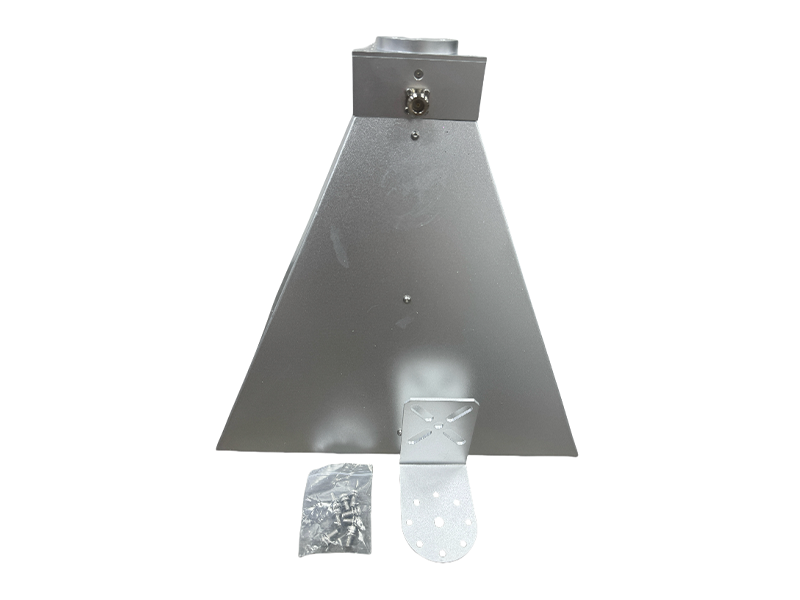

TECHNICAL SPECIFICATIONS
Electrical Specifications
| Item | Parameter |
| Frequency Range | 300-2600Mhz |
| Gain(dBi) | 5-17dBi |
| VSWR | ≤2.0 |
| Polarization | Vertical /Horizontal |
| Cross Pol. Isolation | 50 dB |
| Beamwidth | Angle as show in the directional diagram |
| Impedance | 50 Ω |
| Front-to-Back Ratio | ≥20dB |
| Maximum input power(W) | 100W |
| Lightning Protection | DC Grounding |
Mechanical Specifications
| Item | Parameter |
| Sizemm(Diameter * Length) | 680*490*595mm |
| Antenna weight(kg) | 11.5±0.1KG |
| Operational Humidity(％) | 10-95% |
| Radome Color | Brass |
| Radome material | AI |
| Operating temperature(ºC) | -55～75º |
PCB Antenna operates in 950-1100MHz range with 50W power, 5±1dBi gain, and 65° beamwidth. Compact metal design (300x90x1.5mm, 0.1kg) supports -30℃ to 65℃ environments. Ideal for integration in counter-UAV systems.
ltem No.: Directional PCB Antenna
learn more
Omnidirectional Fiberglass Antenna operates in 960-1070MHz with 100W power, 2dBi gain, and 360° coverage. With fiberglass radome, it withstands 36.9m/s wind and -30℃ to 65℃ temperatures. Ideal for counter-UAV systems.
ltem No.: Omnidirectional Fiberglass Antenna
learn more
Omnidirectional Clover Antenna operates in 1160-1280MHz with 100W power and circular polarization. Features 360° coverage, fiberglass-brass construction, and -30℃ to 65℃ operation for navigation and counter-UAV applications.
ltem No.: Omnidirectional Clover Antenna
learn more
