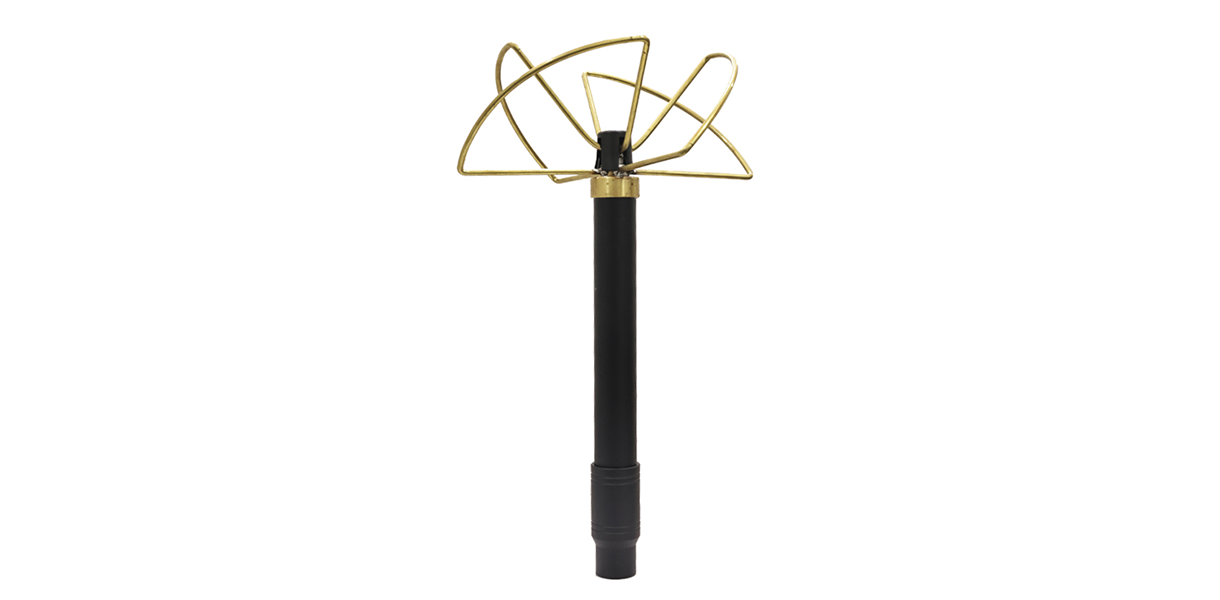

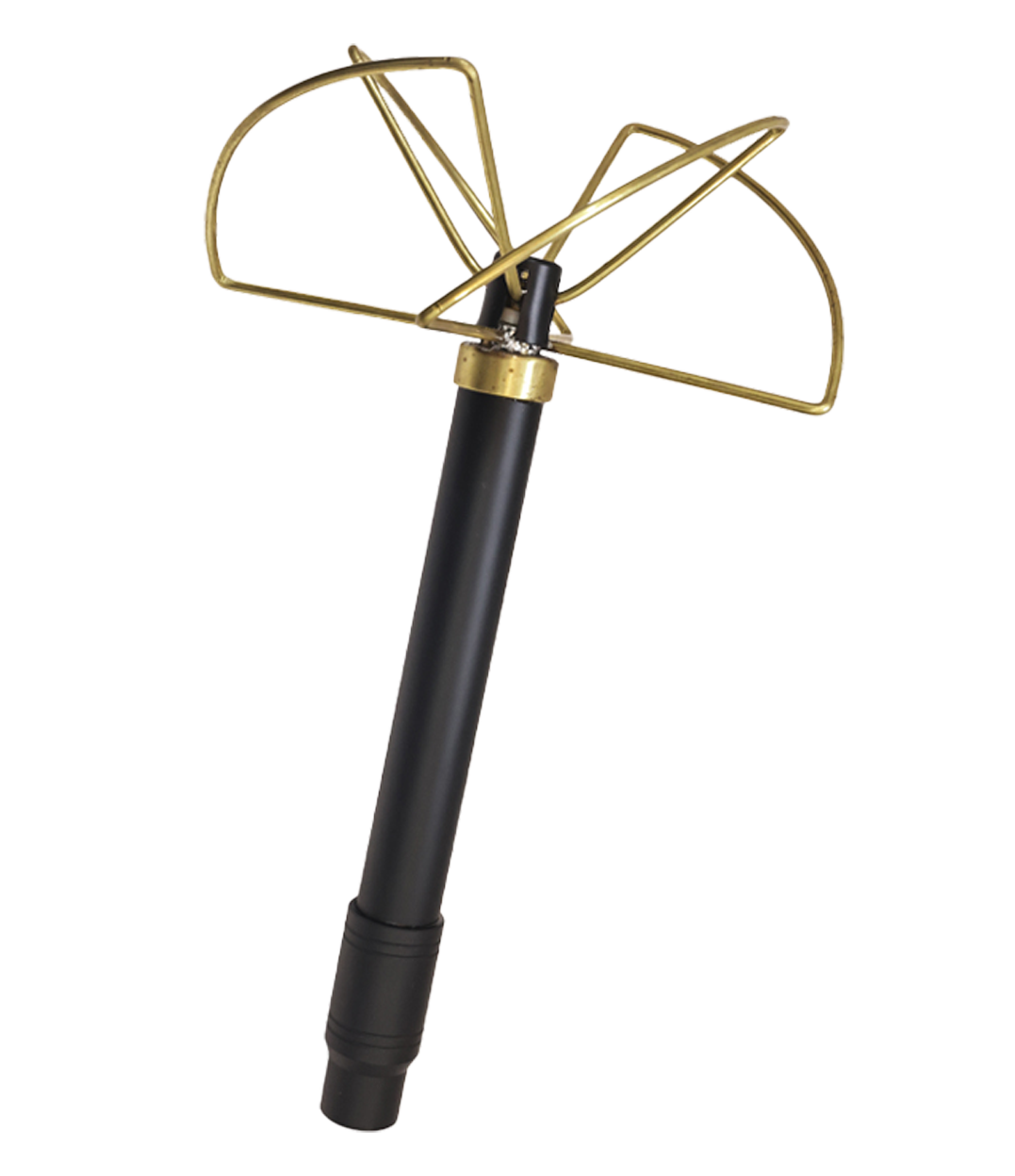

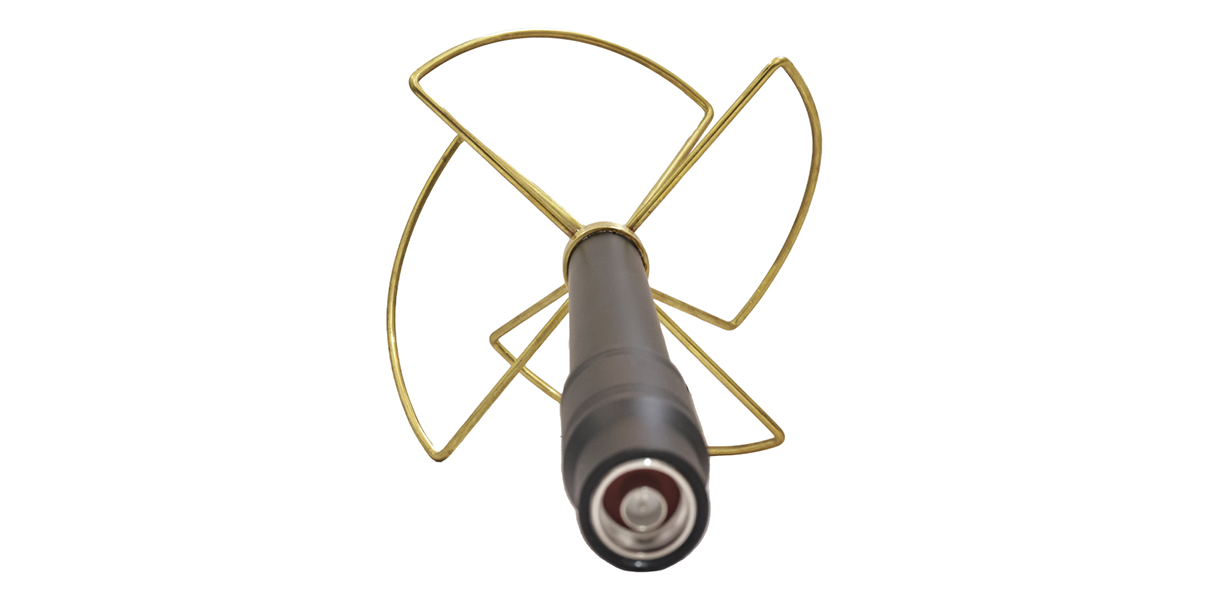

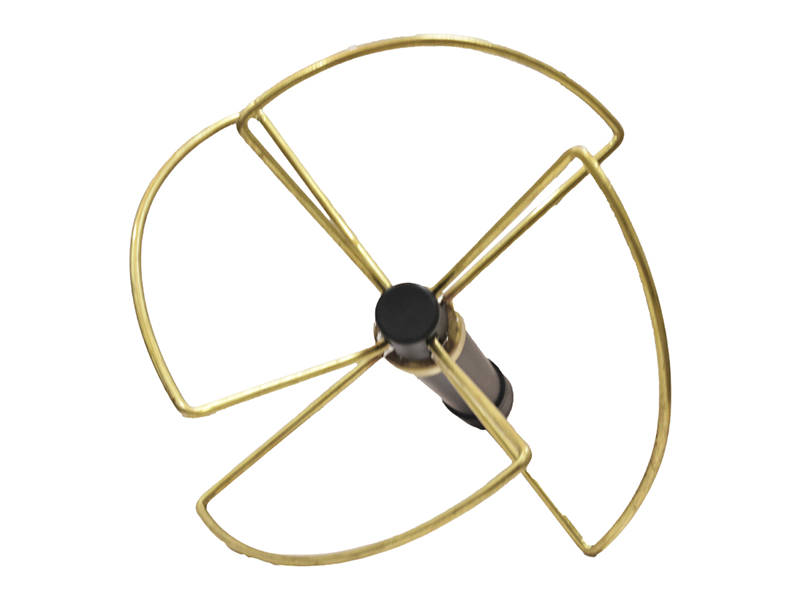

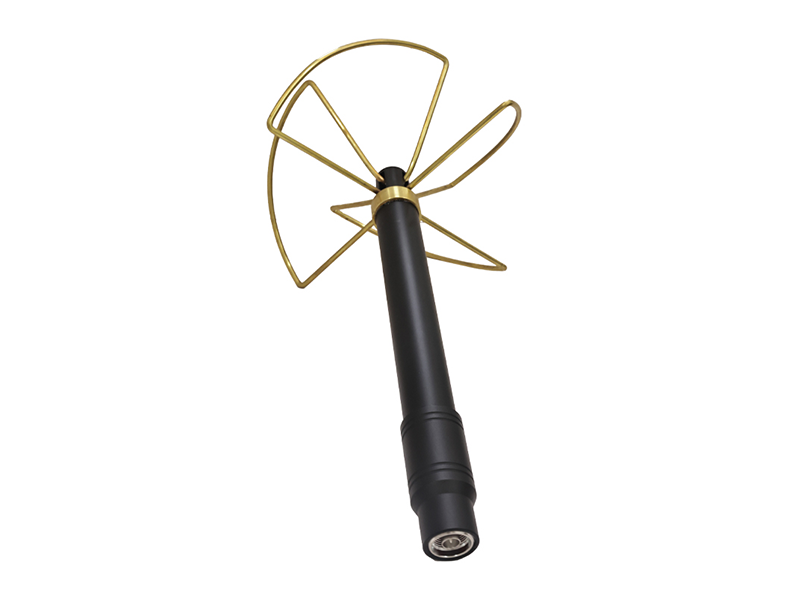

TECHNICAL SPECIFICATIONS
Electrical Specifications
| Item | Parameter |
| Frequency Range | 1160-1280Mhz |
| Gain(dBi) | 2±1dBi |
| VSR | ≤2.0 |
| Polarization | Circular Polarization |
| Horizontal Beam width(0º) | 360º |
| Vertical Beam width(0º) | 90±15º |
| Ovality(dB) | ±2dB |
| Input Impedance（Ω） | 50Ω |
| Maximum input power(W) | 100W |
| Input connector type | N-J (embedded) |
| Lightning Protection | DC Grounding |
Mechanical Specifications
| Item | Parameter |
| Sizemm(Diameter * Length) | ɸ160X310mm，Diameter:32mm Antenna length:230mm |
| Packing size(mm) | 740*365*295mm |
| Antenna weight(kg) | 0.3±0.1KG |
| Operational Humidity(％) | 10-95% |
| Radome Color | Black |
| Radome material | Fiberglass and Brass |
| Operating temperature(ºC) | -30～65º |
| Installation Method | Machine mounting |
