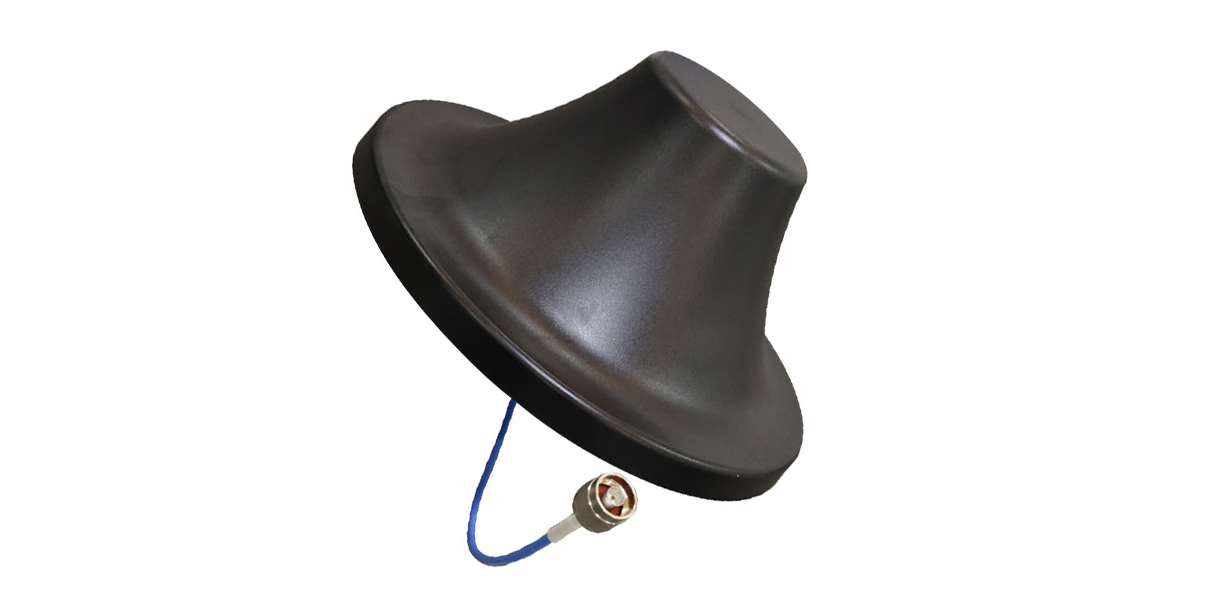

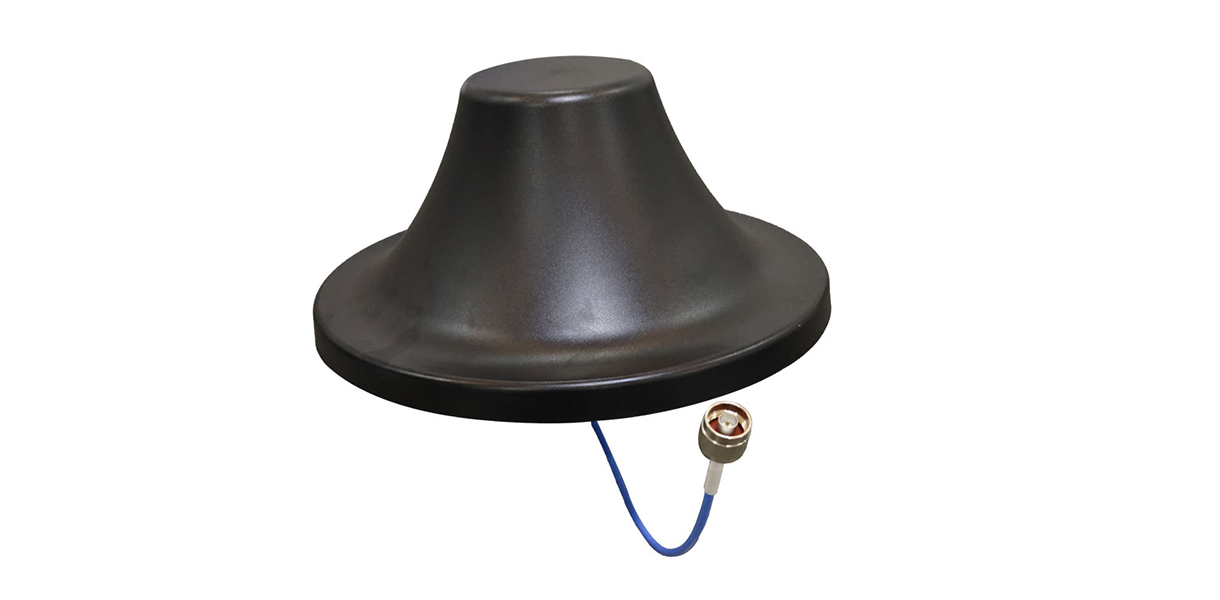

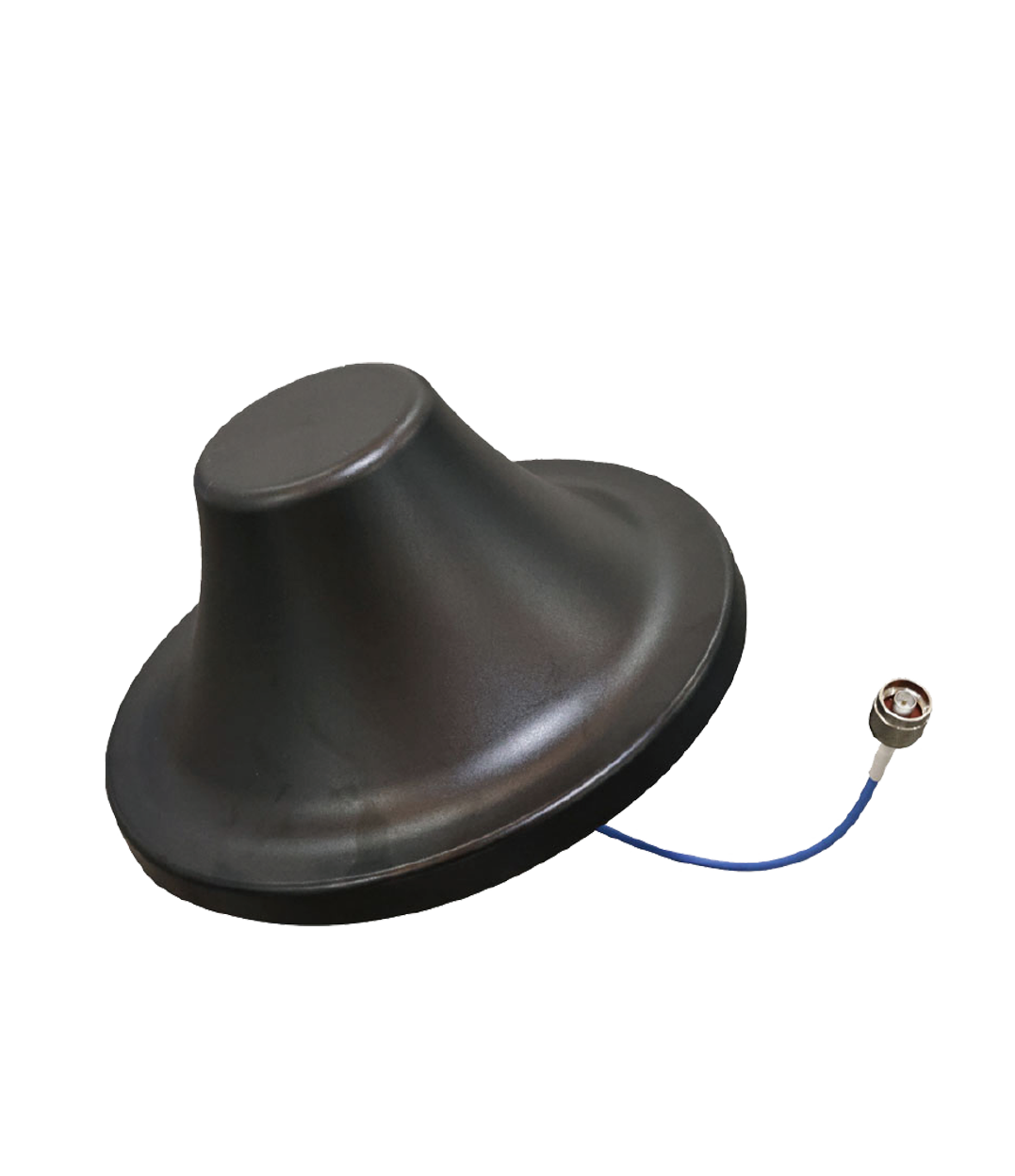

TECHNICAL SPECIFICATIONS
Electrical Specifications
| Item | Parameter |
| Frequency Range | 1070-1370Mhz |
| Gain(dBi) | 2±1dBi |
| VSWR | ≤2.0/≤2.5 |
| Polariztion | Vertical |
| Horizontal Beam width(0º) | 110±10º |
| Vertical Beam width(0º) | 85±10º |
| Ovality(dB) | ±2dB |
| Input Impedance（Ω） | 50Ω |
| Maximum input power(W) | 50W |

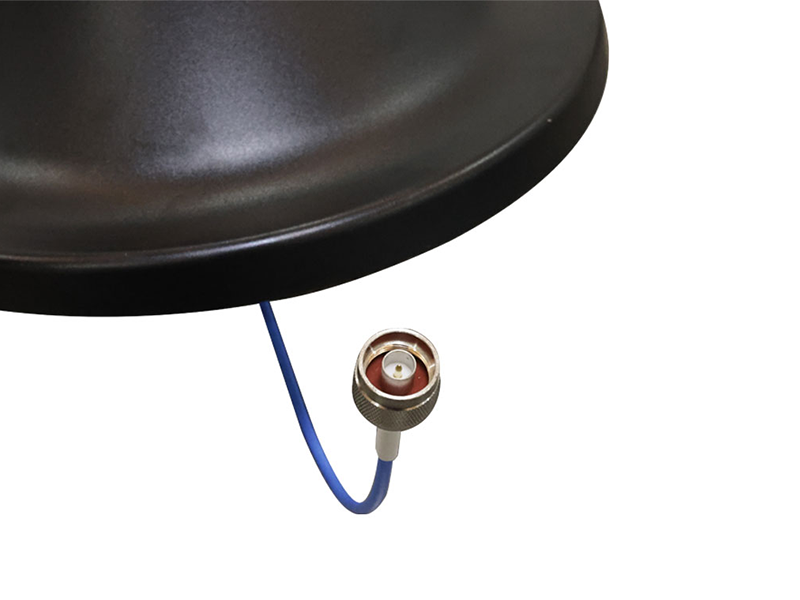

| Input connector type | N-Type |
Mechanical Specifications
| Item | Parameter |
| Sizemm(Diameter * Length) | ɸ275*122mm |
| Packing size(mm) | 525*350*550mm |
| Antenna weight(kg) | 0.9±0.1KG |
| Operational Humidity(％) | 10-95% |
| Rated Wind Velocity（m/s) | 36.9m/s |
| Radome Color | Black |
| Radome material | Fiberglass |
| Operating temperature(ºC) | -30～65º |

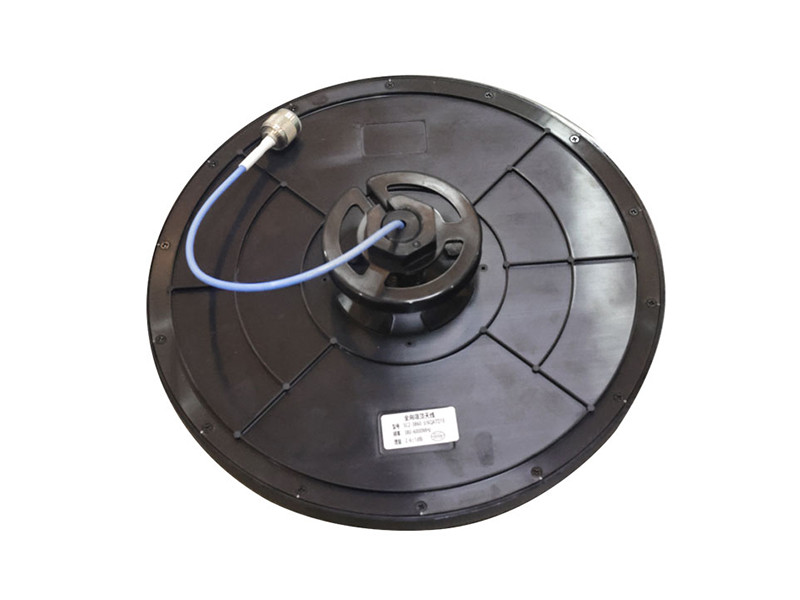

| Installation Method | Ceiling installation |
