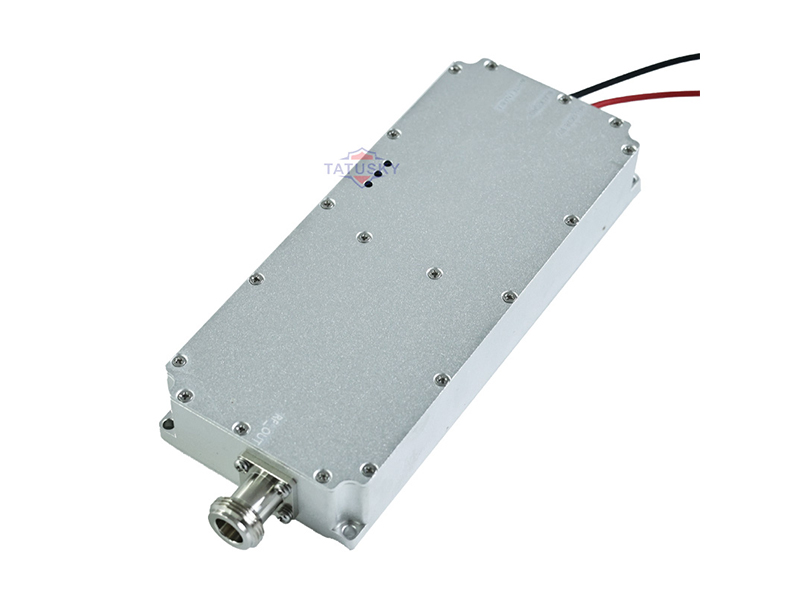

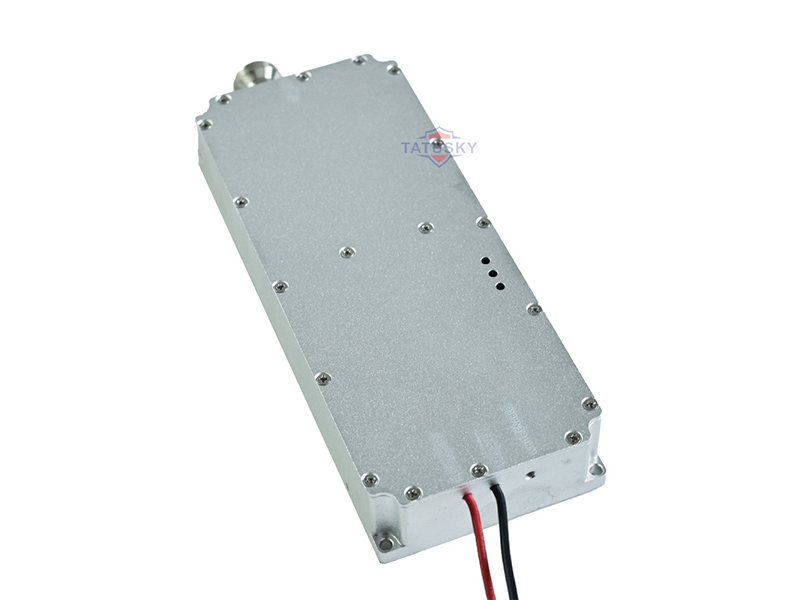

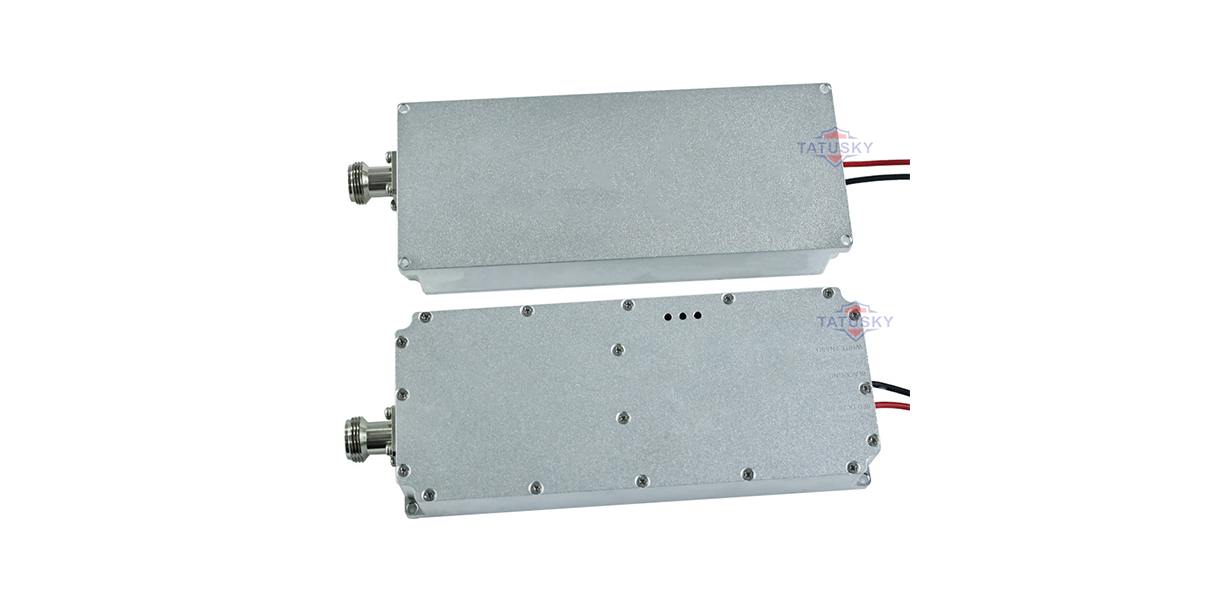

TTSK-TZ-GAN 100W Anti-Drone RF Power Amplifier Module, 2000-2700MHz, 50dBm Output, for UAV Countermeasure & Communication Jamming Systems

Item No.: TTSK-TZ-KGAN-100W

KEY FEATURES

Wide Output Power

10W-200W to meet various demands

Signal Source

VCO and digital signal source options

Transistor Selection

GaN or LDMOS transistors for different thermal

Support Customization

Supports wideband and narrowband frequency

Modular design

For easy integration and maintenance

Heat Dissipation Function

Aluminum alloy housing with fan cooling

PRODUCT DETAILS

APPLICATION SCENARIOS

VIP Transit Protection

Event Security

Critical Mission Bases

TECHNICAL SPECIFICATIONS

Test Item		Indicators	Unit	Remark
Frequency Range		2000-2700	MHz	Built-in noise source
Working Voltage		24-32	V	Typical voltage 28V built-in DC-DC converter module
Max Output Power		50	dBm	≤8.1A
Power supply requirements		≥10	A
Working Efficiency		44	%
Input Port VSWR		≤2
High and low temp testing	Temperature of working environment	-40～+55	℃
High and low temp testing	Power Stabilization	1.5	dB	-20℃～+75℃
Power supply connector		Cables or Feedthru capacitor
RF Output Connector		Output N Female
Dimension		156.564.724.5	mm	Not including interface
Mounting holes 安装孔		151.5*59.4	mm	M3*10
