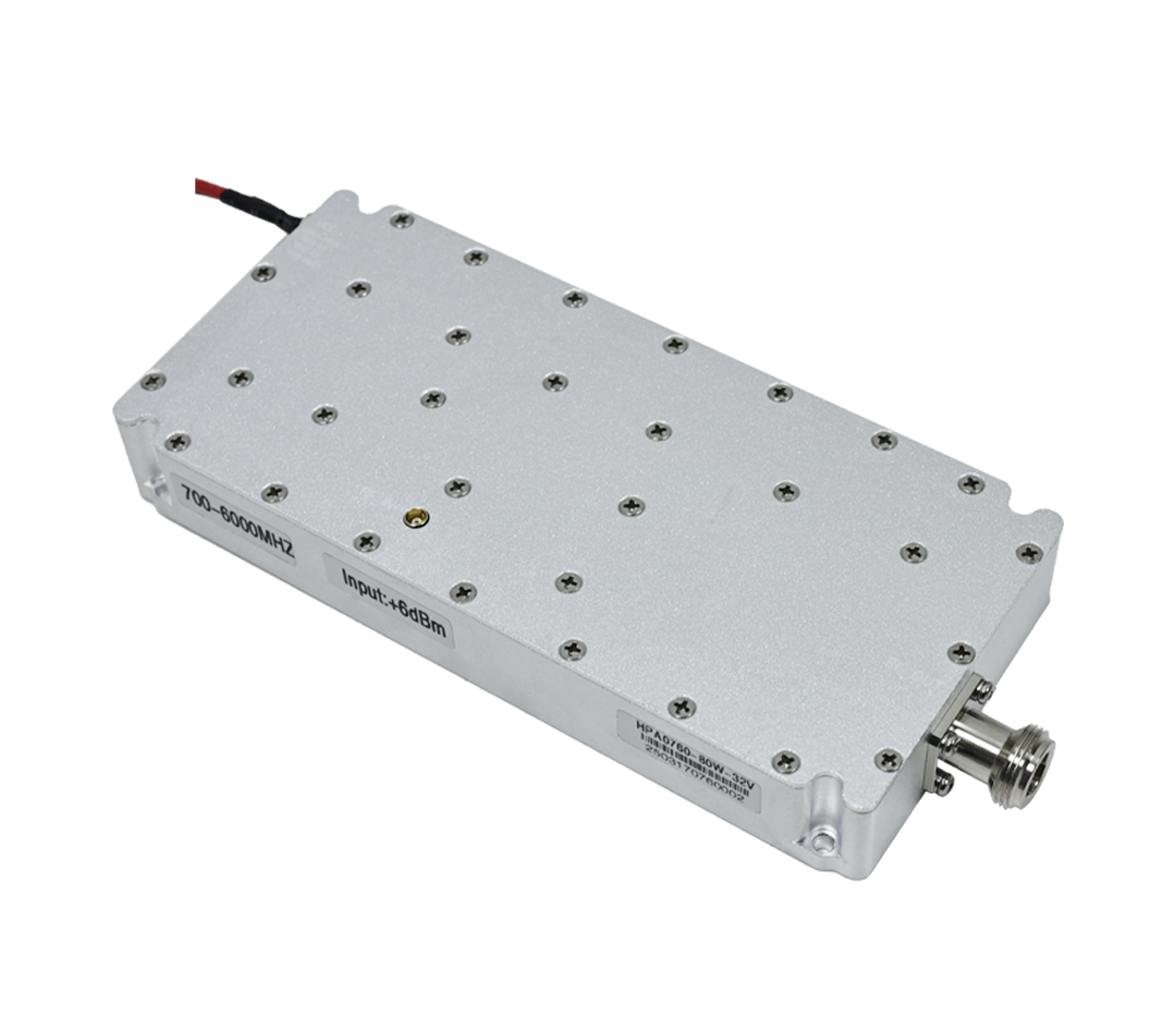

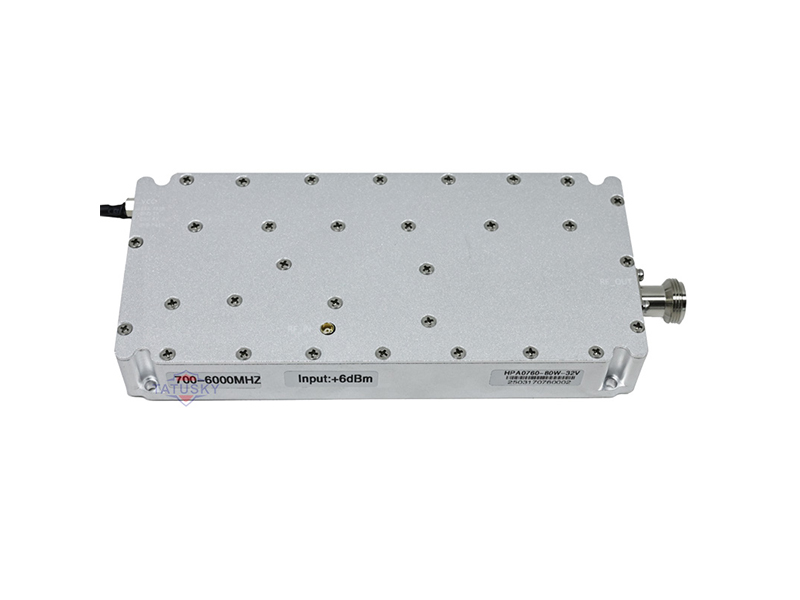

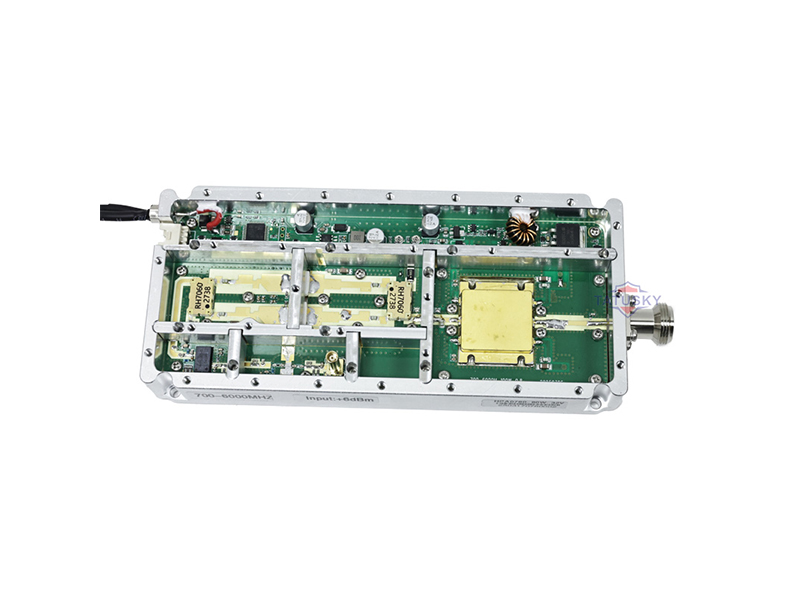

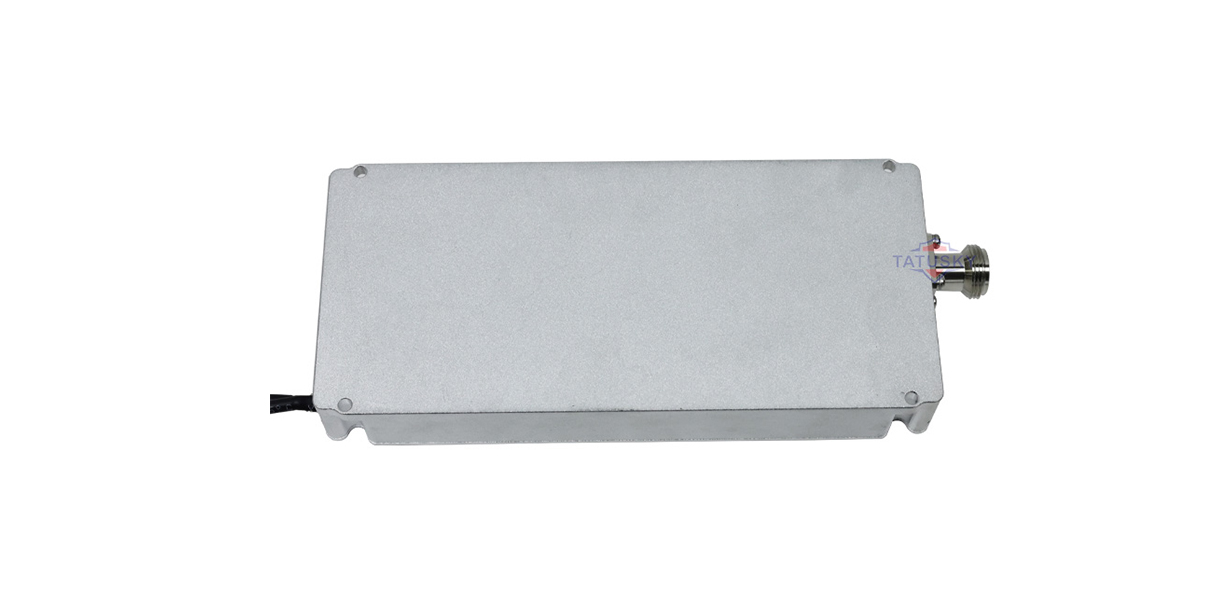

TTSK-TZ-GAN-80W Ultra Wideband Anti UAV Power Amplifier 700-6000MHz Supports Intelligent Monitoring

Item No.: TTSK-TZ-GAN-80W

KEY FEATURES

Wide Output Power

10W-200W to meet various demands

Signal Source

VCO and digital signal source options

Transistor Selection

GaN or LDMOS transistors for different thermal

Support Customization

Supports wideband and narrowband frequency

Modular design

For easy integration and maintenance

Heat Dissipation Function

Aluminum alloy housing with fan cooling

PRODUCT DETAILS

APPLICATION SCENARIOS

Event Security

Power Grid Systems

Major Sporting Events

TECHNICAL SPECIFICATIONS

Test items		Indicators	Unit	Note
Frequency range		700-6000	MHz
Operating voltage		32	V	28-32
Max output power		80	W	80W@9.2A Typical
Amplifier efficiency		27	%	@80W
Maximum Gain		45	db	Max Power Gain
Gain Flatness		≤5	db
Standard Input Power		7	dbm
Max undamaged power		≤10	dbm
Input VSWR		≤2		Tested by network analyzer without power supply
High and low temperature	Operating environment temperature (℃)	-10 ~ +55 °C	℃
	Power stability	±1.0@-40℃~ +55℃	dB
Power requirements		≥12A@+32Vdc;		Continuous wave output
Power supply interface		Feedthrough capacitor
Control communication interface		485 Communication Protocol		Supports temperature, current, Voltage detection, RF output power detection *2.54mm 24 Holder**
RF Output Connector				Input SMB-JE, Output N Female
Sizes		*1707724.5*	mm	Excluding connector
Weights		750	g
Mounting hole		*152.371.5**	mm	*M3.04**
