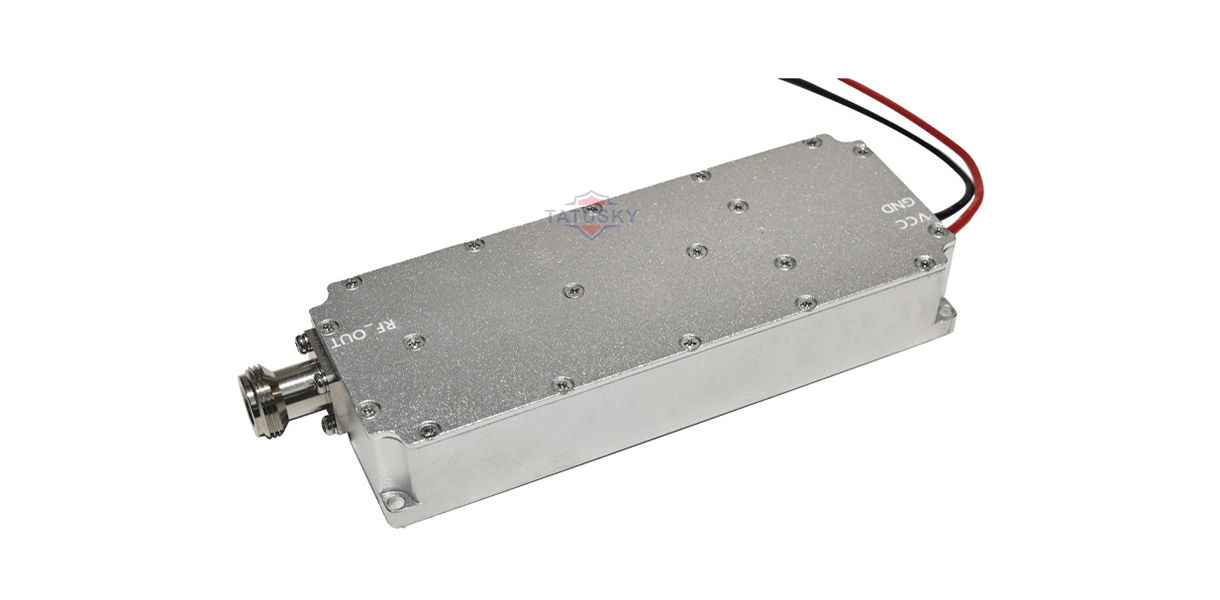

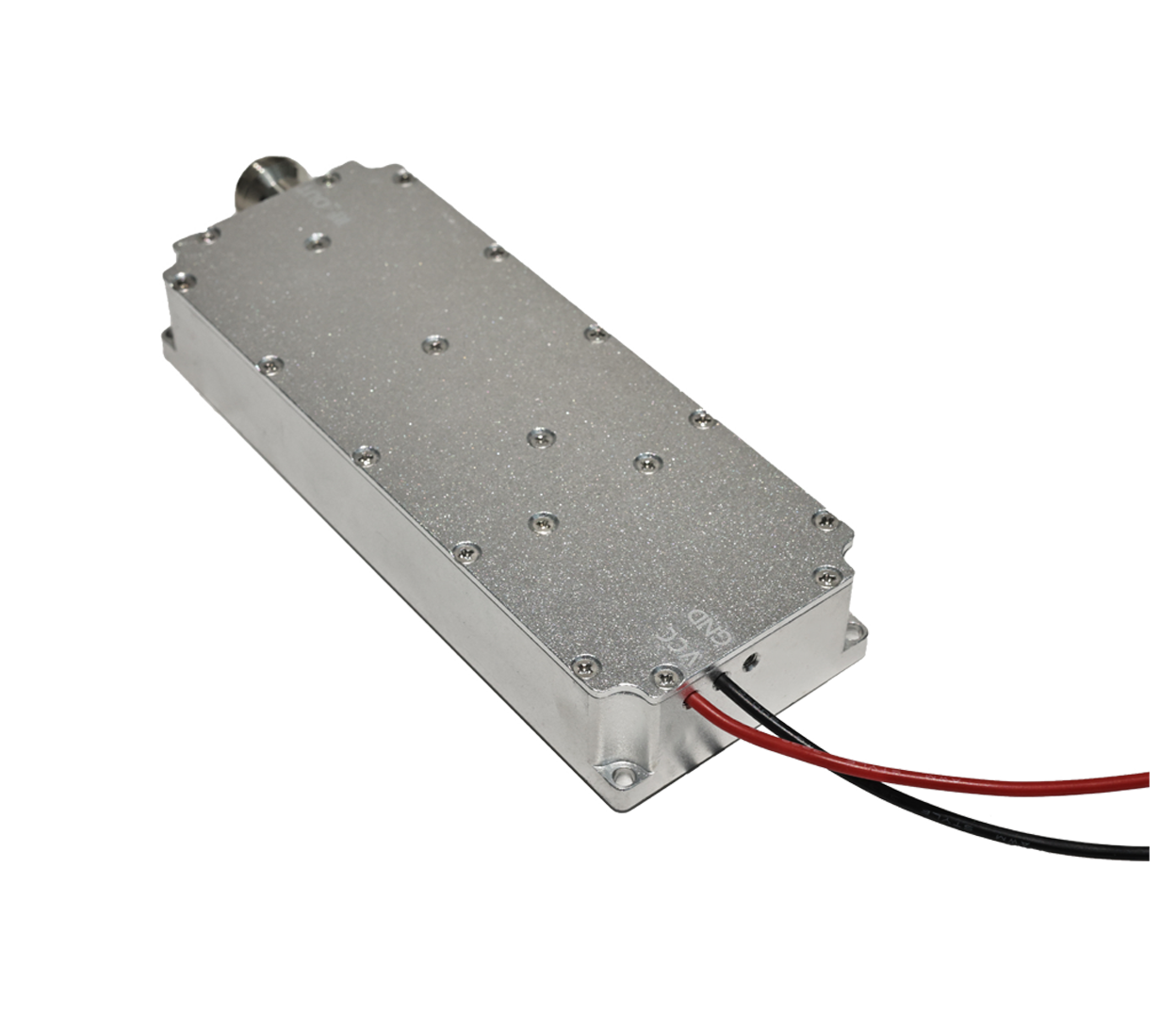

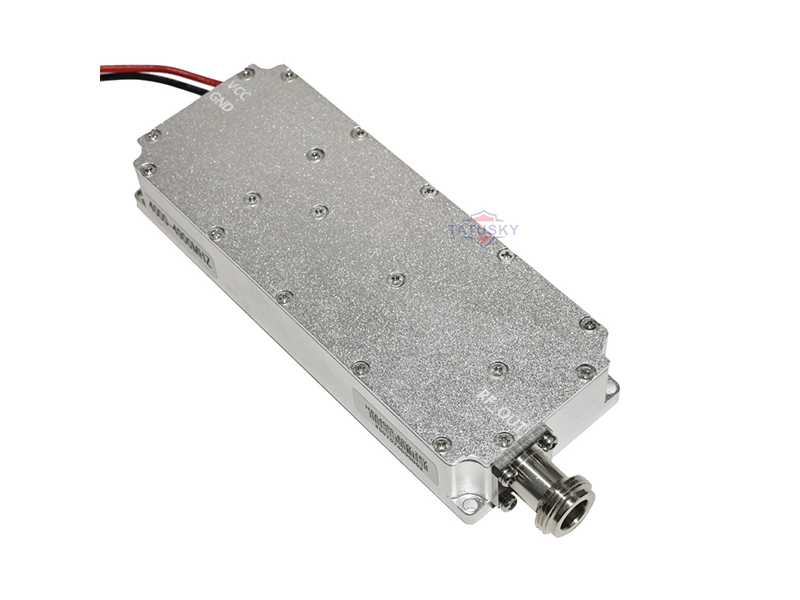

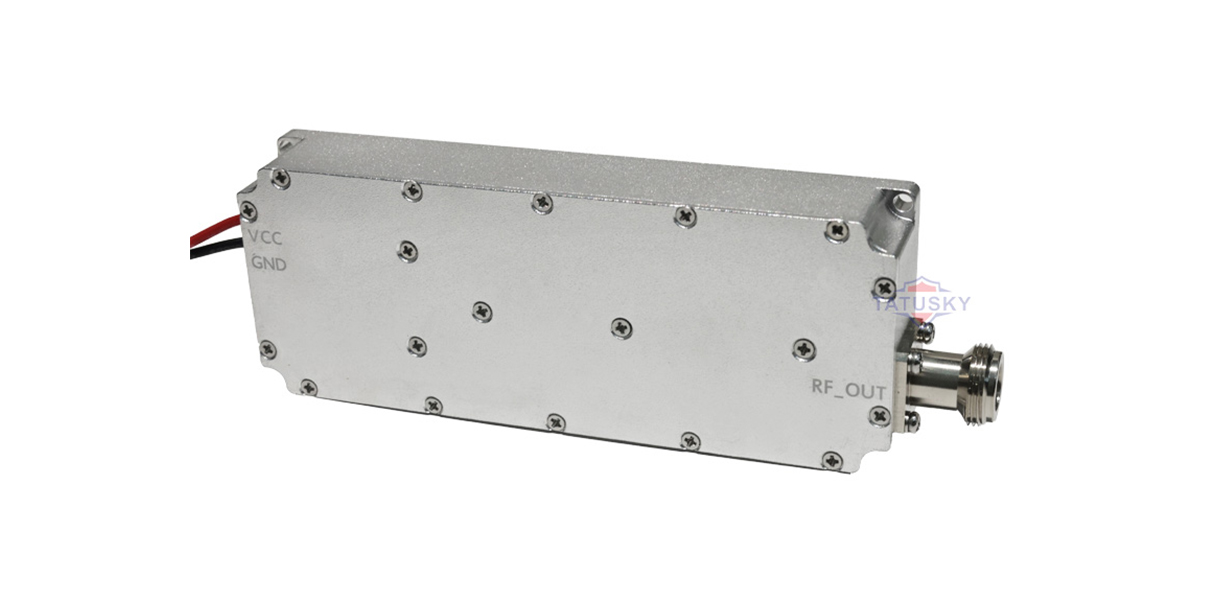

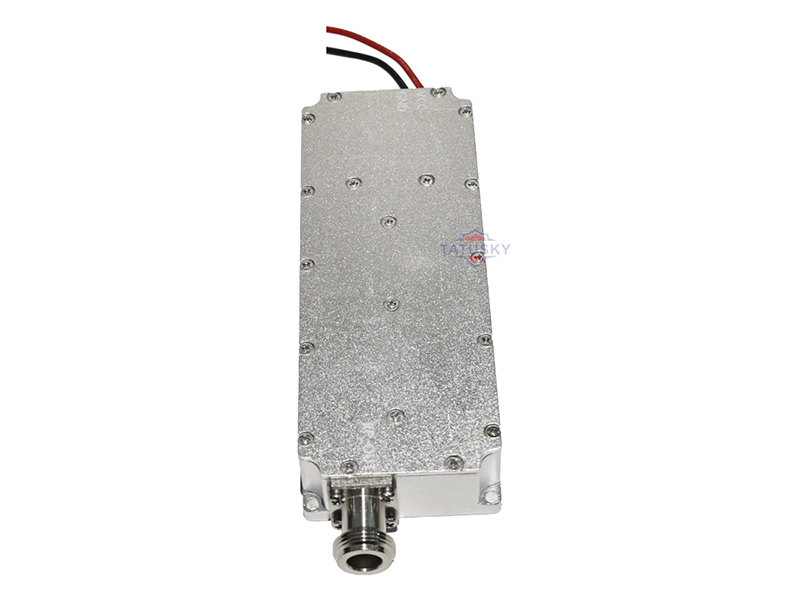

TTSK-TZ-KGAN 80W C-band anti drone interference amplifier 4000-4900MHz designed for precise frequency band suppression

Item No.: TTSK-TZ-KGAN 80W

KEY FEATURES

Wide Output Power

10W-200W to meet various demands

Signal Source

VCO and digital signal source options

Transistor Selection

GaN or LDMOS transistors for different thermal

Support Customization

Supports wideband and narrowband frequency

Modular design

For easy integration and maintenance

Heat Dissipation Function

Aluminum alloy housing with fan cooling

PRODUCT DETAILS

APPLICATION SCENARIOS

Event Security

Power Grid Systems

VIP Transit Protection

TECHNICAL SPECIFICATIONS

Test Item		Indicator	Unit	Remarks
Frequency Range		4000-4900	MHz	With built-in Signal source
Operating Voltage		28	V	24-32 V
Maximum Output Power		49±0.5	dBm	80 W @ ≤7.5 A
Working Efficiency		45	%	Typical work efficiency
Output port VSWR		≤1.30
In-band Fluctuation		≤2	dB	Peak-to-peak
High and Low Temperature Test	Operating Ambient Temperature	-10～+55℃	℃	Capable of starting at low temperature
	Gain Stability	±1.5 @ -40℃～+55℃	dB
	Power Stability	±1.5 @ -40℃～+55℃	dB
Power Supply Requirement		≥9 A @ +28 V dc		80 W continuous wave output
Power Supply Interface		-		Red for positive/B+, black for negative/B-
Power Amplifier Enable		-		White wire: Turn on at high level, turn off at low level
RF Output Connector		N		N outer threaded female connector
Dimensions		*133.851.322.5MM*	mm	Excluding N connector
Mounting Hole		*129.146.1**	mm	*M3.010**
Weight		330	g
