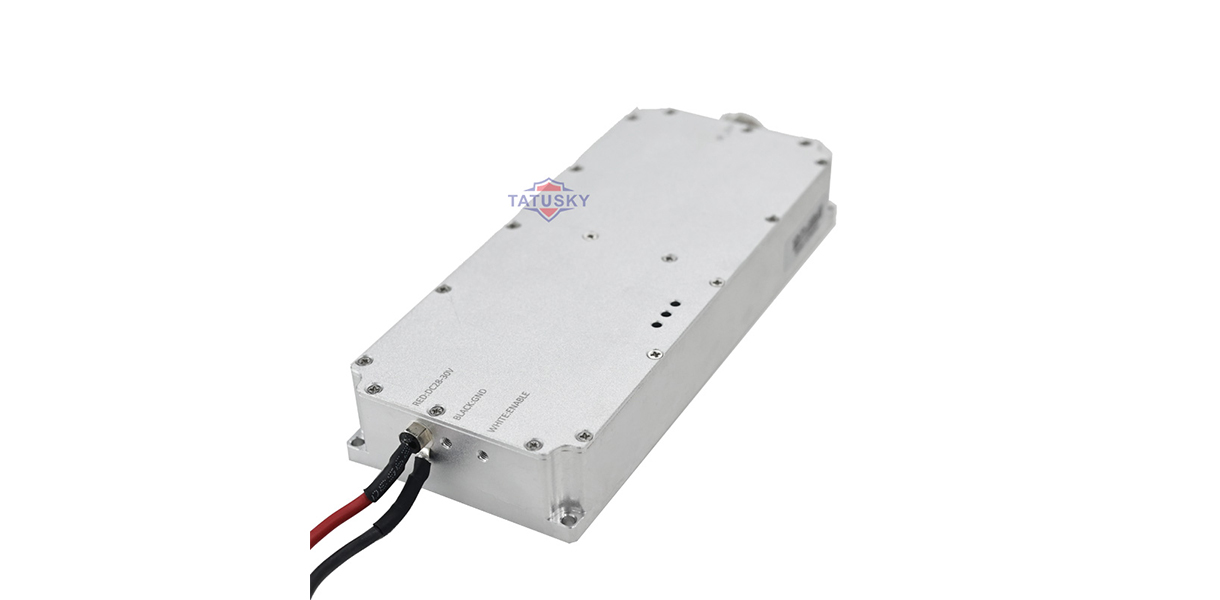

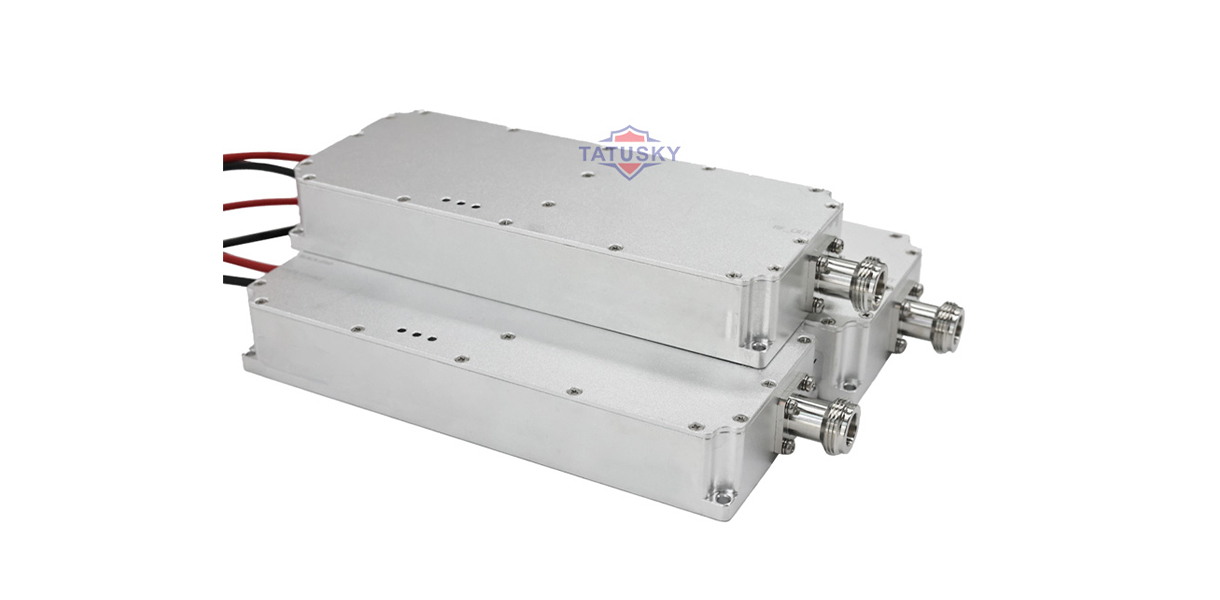

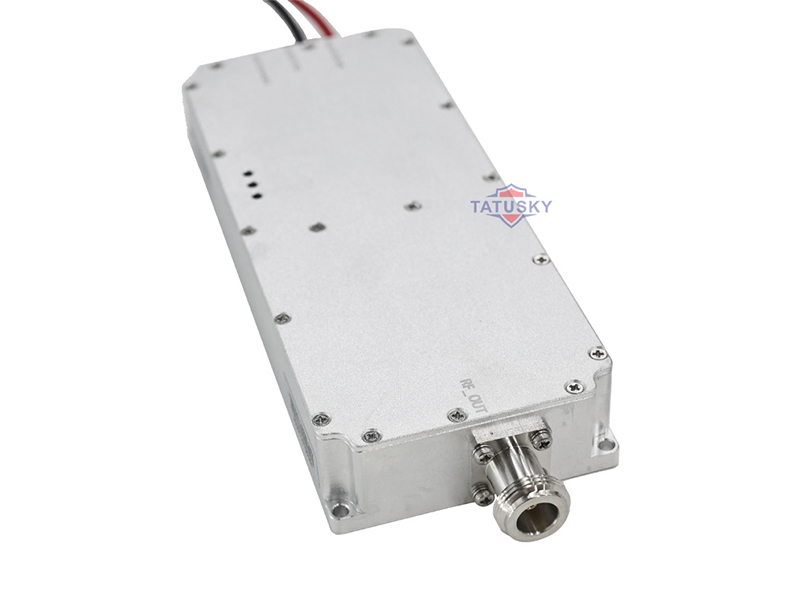

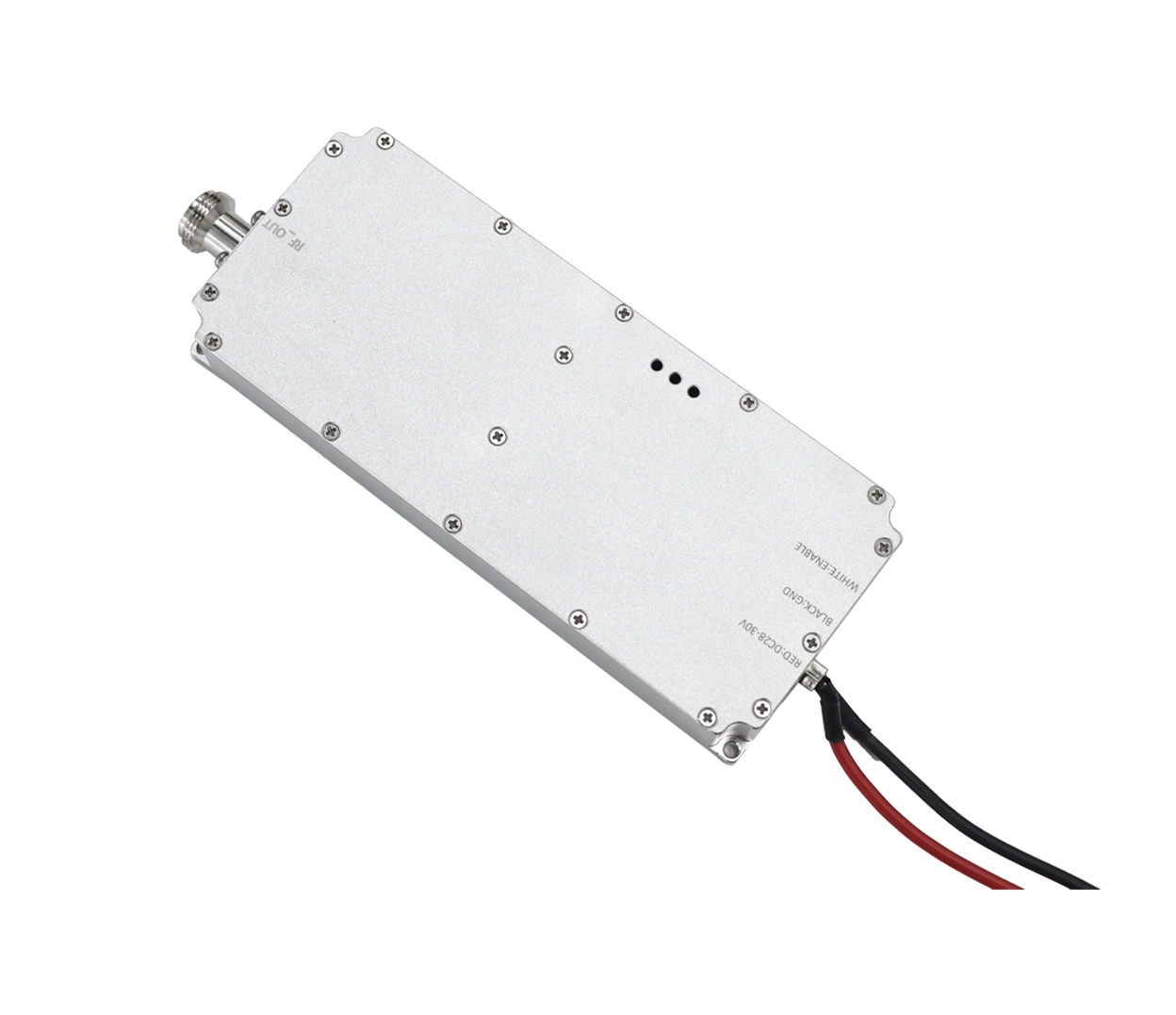

TTSK-TZ-KGAN-100W Anti-Drone Broadband Power Amplifier 100-1020MHz 100W GaN Technology Jamming Amplifier

Item No.: TTSK-TZ-KGAN-100W

KEY FEATURES

Wide Output Power

10W-200W to meet various demands

Transistor Selection

VCO and digital signal source options

Transistor Selection

GaN or LDMOS transistors for different thermal

Support Customization

Supports wideband and narrowband frequency

Modular design

For easy integration and maintenance

Heat Dissipation Function

Aluminum alloy housing with fan cooling

PRODUCT DETAILS

APPLICATION SCENARIOS

Major Sporting Events

Critical Mission Bases

Event Security

TECHNICAL SPECIFICATIONS

Item		Specification	Unit	Remarks
Frequency Range		100-400 200-400 300-600 400-700 700-1020	MHz	Built-in high-efficiency signal source
Working voltage		28	V	24-32V
Maximum output power		50	dBm	100W@≤7.8A
Power amplifier efficiency		50	%	Typical efficiency
Maximum gain		45	dB	Maximum power gain
High and low temperature test	working environment temperature	-40～+55	℃
High and low temperature test	Power stability	±1.5	dB	-20℃～+75℃
Output port VSWR		≤2
Power supply requirements		≥9A		Continuous wave output 100W
Power supply interface				Red for positive/B+, Black for negative/B- or Wearing capacitance
Enable				White wire: Turn on at high level, turn off at low level
RF output connector		N		Female
Size		*156.564.724.5*	mm	Excluding N-F
Installation hole		*151.559.4**	mm	*M3.04**
Size with isolator		*187.164.724.5*	mm	Excluding N-F
Installation hole (with isolator)		*182.159.4**	mm	*M3.04**
Weight		471/500	g
